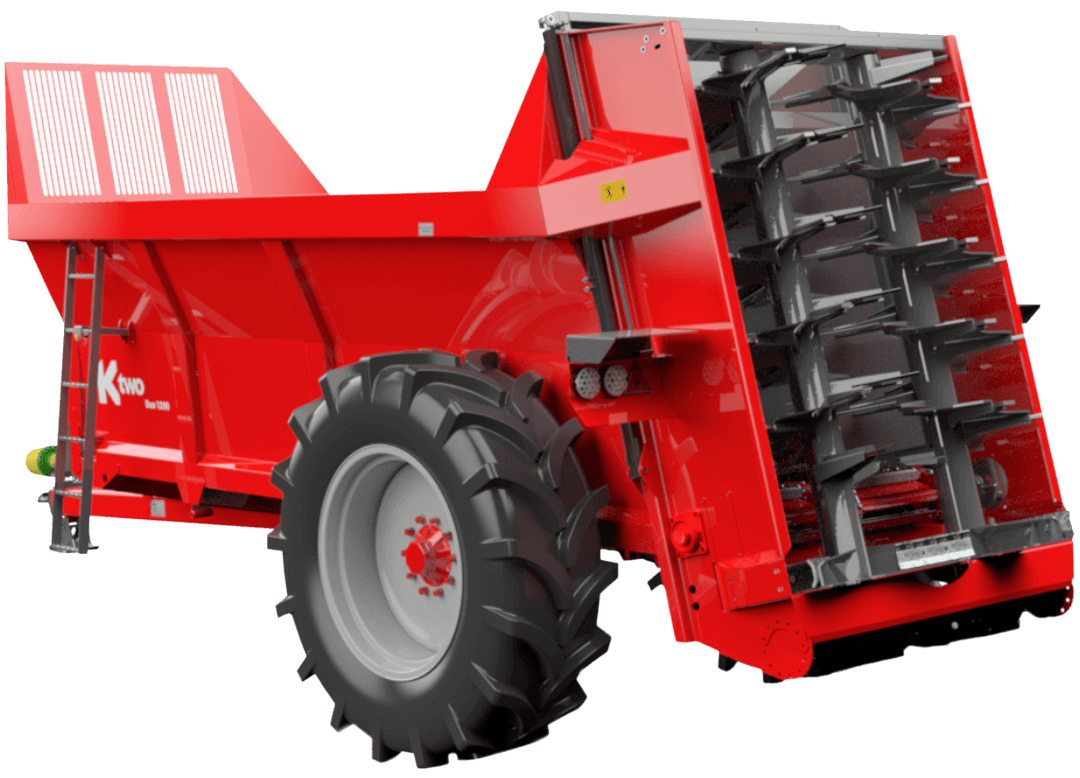

Ktwo MK5 600 DUO Vertical Beater Muck Spreader

Spreader material type : Manure Spreader capacity : 9.8m3 spreader unladen weight : 4130kg Spreader overall length : 5950mm / 19ft 6 Spreader overall height : 2425mm / 7ft 11 Spreader loading height : 1850mm / 6ft 1 Spreader axle : 1 x 120 x 120 (mm) Spreader brakes : 10 / 420 x 180 spreader tyres : 420 / 85 R30 Spreader pto requirement : 540rpm Spreader power requirement : 85hp Spreader no. of floor chains / chain size : 4 / 14mm Spreader rear floor drive roller dia : 50mm

Ktwo MK5 600 DUO Vertical Beater Muck Spreader

The Ktwo Duo range of twin vertical beater rear discharge muck spreaders offers a wide range of models to suit most farmers and contractors looking for a versatile manure spreader, capable of spreading a range of products with good accuracy and outputs. Available in capacities of 6–14 tonnes (9.8–23.2 m3) and with a wide range of optional extras, the Duo can be specified to suit most requirements.

Key features:



  • 9.8 cubic metre capacity
  • 10 stud Commercial axle with 420x180mm brakes
  • 4 x 14mm marine chain – 96 tonne breaking strain
  • Large diamater rear floor shaft with 6 tooth sprockets
  • 420/85 R30 wheels
  • Versatile and accurate spread.
  • Tapered body design for increased capacities up to14 tonnes.
  • Two pairs of 14mm marine grade floor chains with closely spaced slats and individual tensioning for positive discharge and consistent spreading.
  • Drawbar is constructed from a single length of 180mm box section that is 12mm thick for superior strength and improved manoeuvrability.
  • Flared “easy out” body construction aids loading, carrying capacity and flow whilst maintaining a good transport width.
  • Twin LED light units with automatic light covers (when fitted with optional slurry door) provide excellent rearward visibility for added peace of mind.
  • Open flighted, dynamically balanced rotors rotate at a fast 386rpm to provide a wider, finer spread pattern.
  • Hardened boron steel rotor teeth for increased durability and longevity.
  • 6-tooth spiral flight construction provides an even spread pattern for all materials.
  • A 120mm square-section commercial axle fitted with 420 × 180 S-Cam brakes and 35mm cylinders gives improved ground clearance and breaking performance.
  • Large wheels provide excellent ground flotation and traction in adverse weather conditions.
  • Wide 1700mm beater set and large 1050mm diameter spinning paddles for the accurate broadcast of fine materials (MK6).
Ktwo MK5 600 DUO Vertical Beater Muck Spreader

Specification for Ktwo MK5 600 DUO Vertical Beater Muck Spreader

Manure 9.8m3 4130kg 5950mm / 19ft 6 2425mm / 7ft 11 1850mm / 6ft 1 1 x 120 x 120 (mm) 10 / 420 x 180 420 / 85 R30 540rpm 85hp 4 / 14mm 50mm
