PÖTTINGER NOVACAT 301 ALPHA MOTION MASTER Front Mounted Mower

Disc mower type : Front Disc mower working width : 3.04m Disc mower transport width : 2.98m Disc mower power (hp) : 60hp Disc mower pto rpm : 1000rpm Disc mower blades : 14 Disc mower weight : 885kg Disc mower no. of discs : 7 Disc mower swath forming/conditioner : Swath discs

PÖTTINGER NOVACAT 301 ALPHA MOTION MASTER Front Mounted Mower

PÖTTINGER ALPHA MOTION MASTER offers even smoother mowing.

Key features:

  • The NOVACAT ALPHA MOTION MASTER front mower has a shortened three-point headstock and is 34 cm closer to the tractor. Because more weight acts on the rear axle of the tractor, you get event better driving performance. The power requirement is lower, which is why lighter tractors can also be used. This helps you save fuel. In addition, the new mower is lighter.
  • A conditioner is not available on this model.

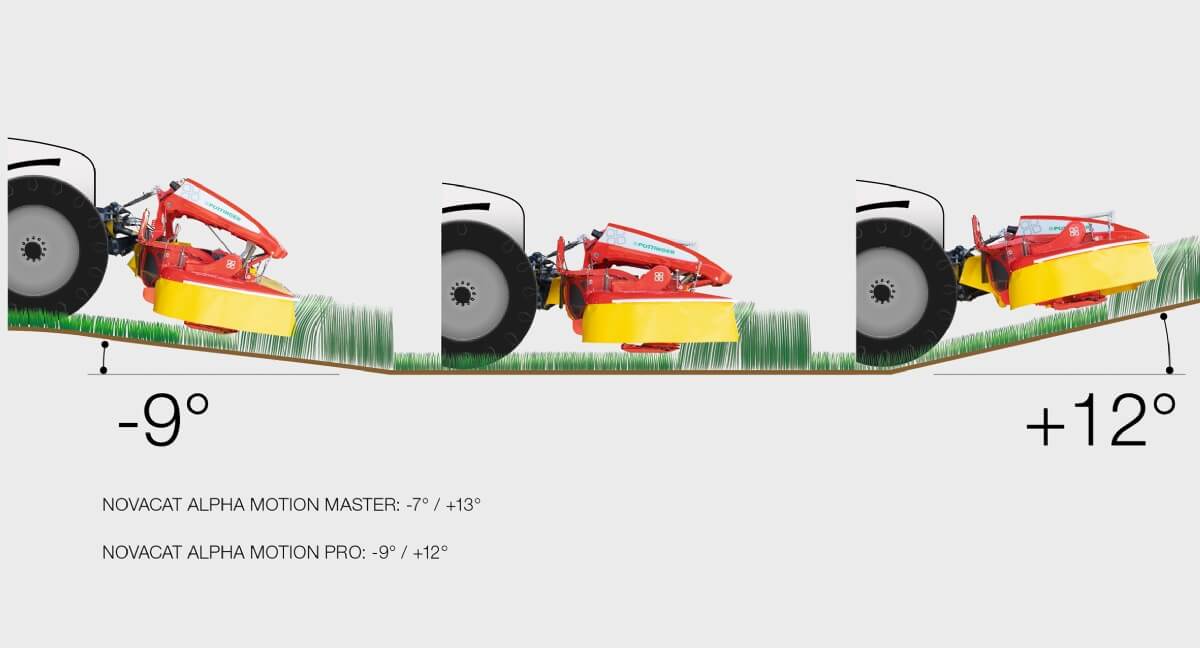

  • The active supporting frame and link rods guide the cutter bar over every undulation in the ground: The cutter bar rises to float over each bump and glides down into each dip.
  • The mower moves virtually on a vertical plane, minimising telescoping of the PTO shaft and greatly reducing dynamic stress.
  • Unique freedom of transverse movement +/- 16° thanks to gimbals on the linkage arms.
  • Two powerful highly responsive springs in the headstock: Perfectly balanced weight alleviation over the whole working width. The mower can be driven at high speed without the cutter bar rising.
  • A huge ground clearance of 350 mm is provided at headlands and in the transport position. You can drive over swaths without damaging them and transport the mower on bumpy tracks.
  • Perfect view of the work area from the tractor seat thanks to the sleek design of the headstock.  As an option, the side guards can be folded hydraulically conveniently from the tractor seat.
  • Using an optional hydraulic hose and sensor package, ALPHA MOTION front mowers can be conveniently operated using the electronic control terminal for NOVACAT mower combinations.




PÖTTINGER NOVACAT 301 ALPHA MOTION MASTER Front Mounted Mower

Specification for PÖTTINGER NOVACAT 301 ALPHA MOTION MASTER Front Mounted Mower

Front 3.04m 2.98m 60hp 1000rpm 14 885kg 7 Swath discs
