PÖTTINGER NOVACAT 3507 T RCB COLLECTOR Trailed Mower

Disc mower type : Trailed Disc mower working width : 3.46m Disc mower transport height : 2.08m Disc mower transport width : 3.42m Disc mower power (hp) : 85hp Disc mower pto rpm : 1000rpm Disc mower weight : 2890kg Disc mower draw bar type : Mid Mounted

PÖTTINGER NOVACAT 3507 T RCB COLLECTOR Trailed Mower

High performance with small tractors. On the trailed version with chassis, you do not need any lifting power, so you can also use lower power tractors. This helps you save fuel.

Key features:

  • Mow on either side.  NOVACAT 3507 T offer you maximum flexibility. The central drawbar, which can be swivelled hydraulically to both sides, enables you to mow on either side. Your mower will ideally adapt to your individual preferences and site conditions.
  • Crosses swaths without dragging. its feet When driving over mowed crop, you need a lifting system that is convenient to use and provides a generous lifting height. A special lifting system provides plenty of clearance for driving over large swaths without damaging them. Uniform lifting/lowering is enabled by feeding oil from one half of the hydraulic cylinder to the cylinder on the other side.

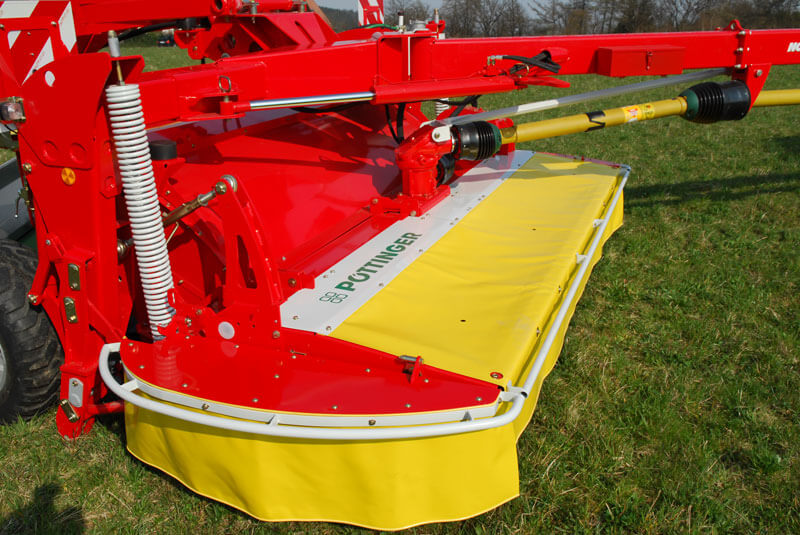

  • 3D ground tracking. The cutter bar adapts to any ground contour so that you float cleanly over the sward. Two large dimensioned,easily-adjustable suspension springs guarantee optimum ground pressure in all conditions. Suspending the mower unit from a portal frame gives the cutter bar a great deal of freedom of movement. The cutter bar is lowered with the portal frame, releasing the cutter bar for perfect ground tracking.
  • Intelligent cutter bar suspension.  Three-dimensional ground tracking is ensured by the freedom of movement enabled by the cutter bar being suspended in the portal frame. The low-slung cantilever system lets the cutter bar glide over bumps and ridges. The guide arms are mounted on freely moving ball joints. The guide bars sloping up to the cutter bar provide excellent adaptation to ground contours. A top link guides the top of the mower unit to complete the four-point suspension system.
  • Freedom of vertical movement; Up to 200 mm upwards, the cutter bar is inclined 5° upwards, Up to 120 mm downwards, the cutter bar is angled 3° downwards.
  • Mounting yoke. The U-shaped mounting yoke provides a free angle of movement of +/-30°. The tractor and mower can then compensate for uneven ground independently of each other.
  • With the COLLECTOR you can mow, condition and swath in just one pass. You save time, money and reduce your weather risk. This proven swath merging system is suitable for everyone who does not want to dispense with a conditioner. The COLLECTOR is available together with the ED tine-type conditioner for rapid yet careful drying, or with the RCB roller conditioner, designed especially for leafy forage.
  • Even with large volumes of forage, your mower works reliably thanks to the large conditioner hood and the wide belt. You are guaranteed neat swath placement at maximum output.
  • When placing the crop, you can choose between a swath or wide blanket. You can adjust this conveniently from the tractor seat using the hydraulically swivelling cross conveyor belt. Narrower swath placement for loader wagons is also possible by using an accelerator roller.
  • Operating convenience due to optional control panel. Adjust the belt speed conveniently using the optional control terminal. The belt switches off automatically when it is folded upwards.
  • The RCB roller conditioner is especially suitable for alfalfa and clovers due to its precision conditioning capabilities. The rollers inter-mesh to uniformly crimp the stalks and produce a uniform blanket of forage. You can adjust the roller spacing and conditioner pressure easily. Both rollers are driven for maximum output. The toothed belt drive system is low maintenance and protected against dirt ingress.
PÖTTINGER NOVACAT  3507 T RCB COLLECTOR Trailed Mower

Specification for PÖTTINGER NOVACAT 3507 T RCB COLLECTOR Trailed Mower

Trailed 3.46m 2.08m 3.42m 85hp 1000rpm 2890kg Mid Mounted
This product has no reviews.

Leave a Review

By clicking the Submit button you agree to our T&Cs and Privacy policy

This product has no questions.

Ask a Question

By clicking the Submit button you agree to our T&Cs and Privacy policy

  • Description

    High performance with small tractors. On the trailed version with chassis, you do not need any lifting power, so you can also use lower power tractors. This helps you save fuel.

    Key features:

    • Mow on either side.  NOVACAT 3507 T offer you maximum flexibility. The central drawbar, which can be swivelled hydraulically to both sides, enables you to mow on either side. Your mower will ideally adapt to your individual preferences and site conditions.
    • Crosses swaths without dragging. its feet When driving over mowed crop, you need a lifting system that is convenient to use and provides a generous lifting height. A special lifting system provides plenty of clearance for driving over large swaths without damaging them. Uniform lifting/lowering is enabled by feeding oil from one half of the hydraulic cylinder to the cylinder on the other side.
    • 3D ground tracking. The cutter bar adapts to any ground contour so that you float cleanly over the sward. Two large dimensioned,easily-adjustable suspension springs guarantee optimum ground pressure in all conditions. Suspending the mower unit from a portal frame gives the cutter bar a great deal of freedom of movement. The cutter bar is lowered with the portal frame, releasing the cutter bar for perfect ground tracking.
    • Intelligent cutter bar suspension.  Three-dimensional ground tracking is ensured by the freedom of movement enabled by the cutter bar being suspended in the portal frame. The low-slung cantilever system lets the cutter bar glide over bumps and ridges. The guide arms are mounted on freely moving ball joints. The guide bars sloping up to the cutter bar provide excellent adaptation to ground contours. A top link guides the top of the mower unit to complete the four-point suspension system.
    • Freedom of vertical movement; Up to 200 mm upwards, the cutter bar is inclined 5° upwards, Up to 120 mm downwards, the cutter bar is angled 3° downwards.
    • Mounting yoke. The U-shaped mounting yoke provides a free angle of movement of +/-30°. The tractor and mower can then compensate for uneven ground independently of each other.
    • With the COLLECTOR you can mow, condition and swath in just one pass. You save time, money and reduce your weather risk. This proven swath merging system is suitable for everyone who does not want to dispense with a conditioner. The COLLECTOR is available together with the ED tine-type conditioner for rapid yet careful drying, or with the RCB roller conditioner, designed especially for leafy forage.
    • Even with large volumes of forage, your mower works reliably thanks to the large conditioner hood and the wide belt. You are guaranteed neat swath placement at maximum output.
    • When placing the crop, you can choose between a swath or wide blanket. You can adjust this conveniently from the tractor seat using the hydraulically swivelling cross conveyor belt. Narrower swath placement for loader wagons is also possible by using an accelerator roller.
    • Operating convenience due to optional control panel. Adjust the belt speed conveniently using the optional control terminal. The belt switches off automatically when it is folded upwards.
    • The RCB roller conditioner is especially suitable for alfalfa and clovers due to its precision conditioning capabilities. The rollers inter-mesh to uniformly crimp the stalks and produce a uniform blanket of forage. You can adjust the roller spacing and conditioner pressure easily. Both rollers are driven for maximum output. The toothed belt drive system is low maintenance and protected against dirt ingress.
  • Specifications

    Trailed 3.46m 2.08m 3.42m 85hp 1000rpm 2890kg Mid Mounted
