PÖTTINGER NOVADISC 262 Rear Mounted Mower with Side Pivot Suspension
PÖTTINGER NOVADISC 262 Rear Mounted Mower with Side Pivot Suspension

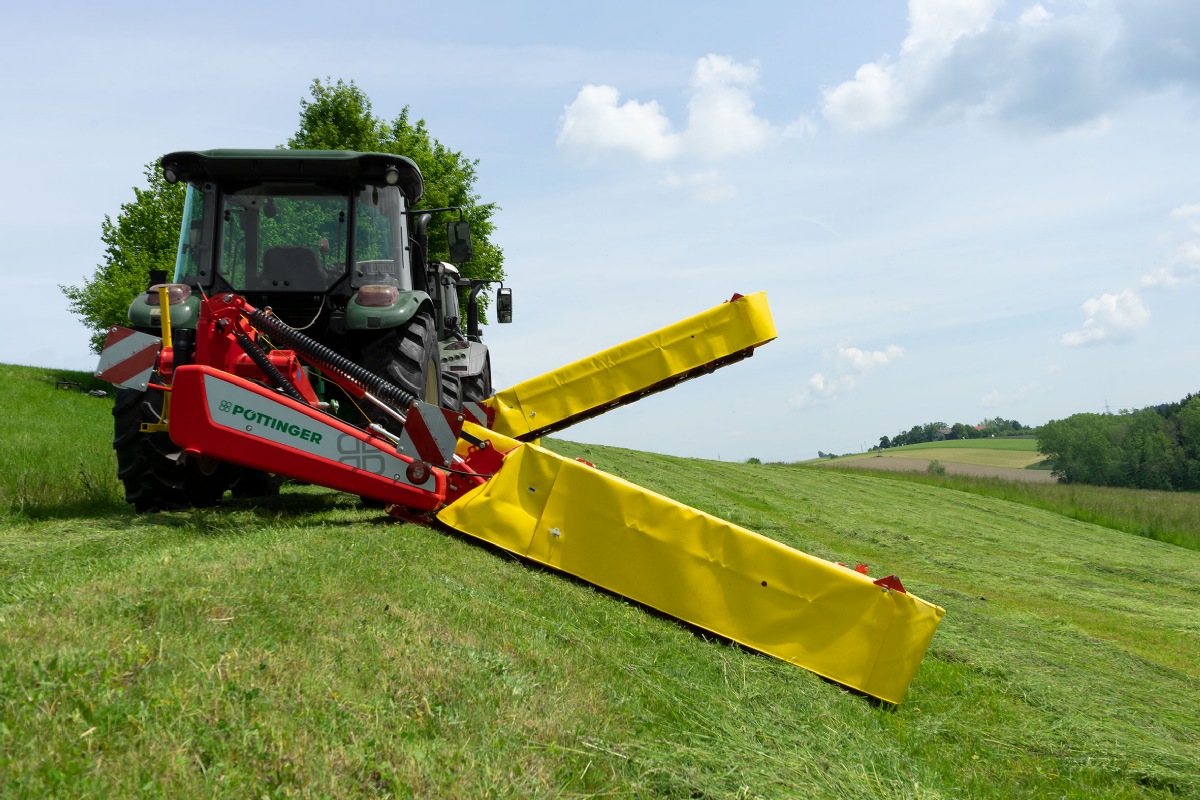

The NOVADISC rear mowers with side pivot mounting are our lightweight models that run smoothly and easily. Thanks to their low weight, these mowers are also suitable for use on steep ground.
Key features:
- Cost-effective and suitable for working on slopes.
- Lightweight construction with high rigidity.

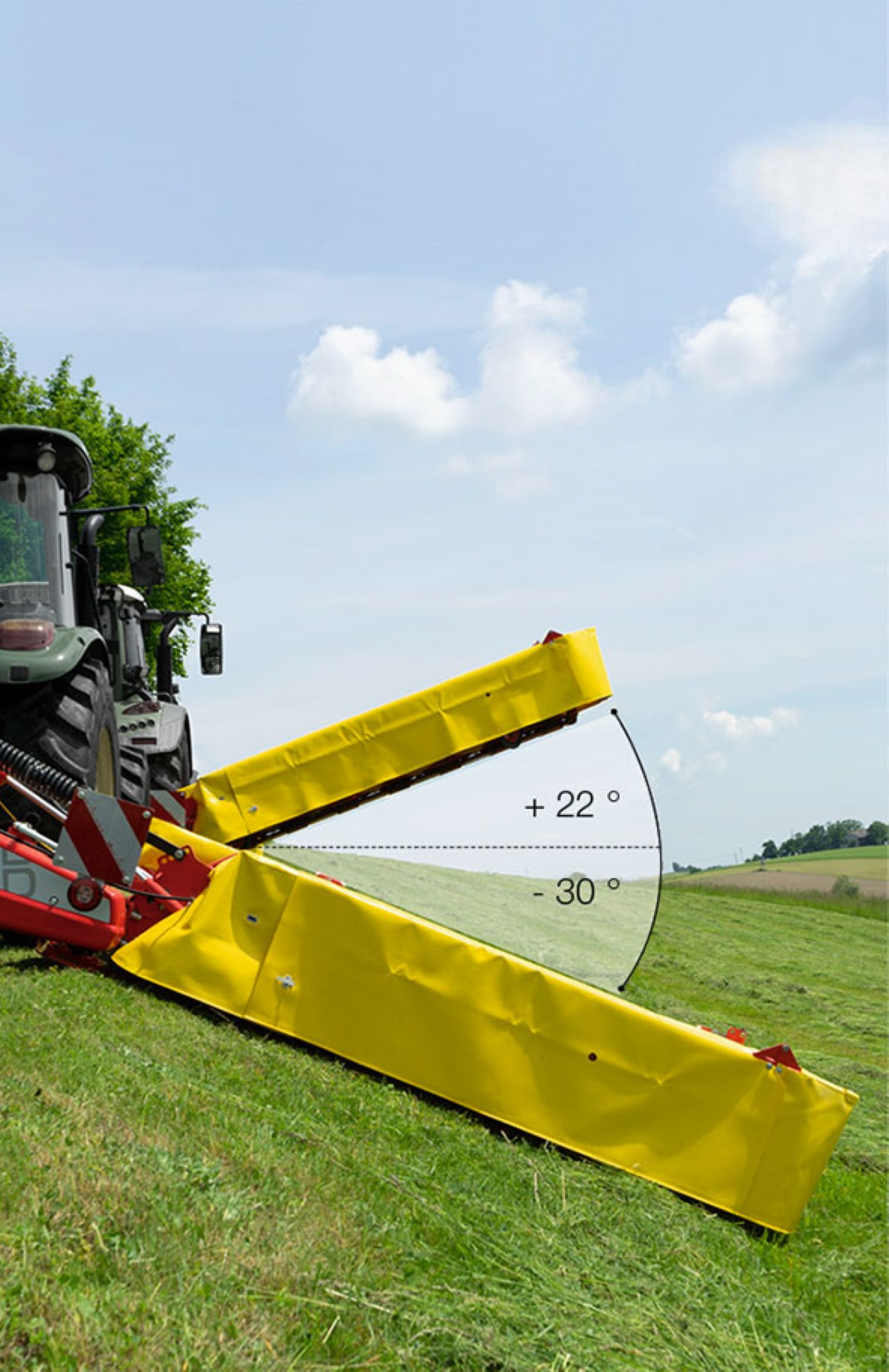

- Able to adapt. The wide + 22/- 30 degree arc of movement enables easy mowing on rough ground and embankments. For a short-time mowing up to + 45° through lifting the interlocking lid is permitted.

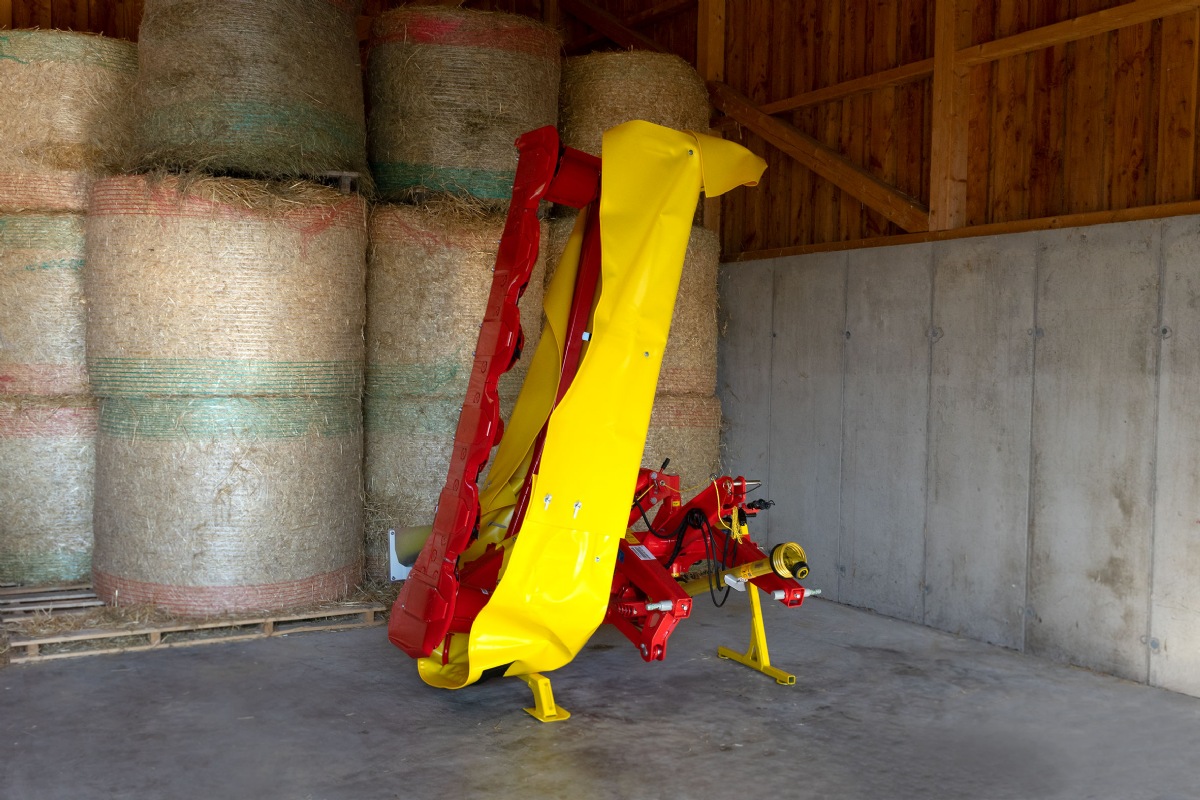

- Safe and practical. The optimised center of gravity of the machine ensures safe and compact road transport. In the transport position, the mower is folded through 102°. This gives you a clear view to the rear through both rear-view mirrors. Using the optional hydraulic folding side guard, you can achieve the lowest possible transport height. With the optional parking stand, your mower can be parked vertically to save space.
- Easily mounted. Thanks to the adjustable mounting pins, these mowers can be hitched up to your tractor quickly and easily. Two headstocks are available for outer track widths of 1,800 – 2,200 mm and 2,200 – 2,600 mm. A practical PTO shaft holder makes hitching up easier.
- Unique weight alleviation springs.
- NOVADISC lifting system. The mower is lowered so that the outer end of the cutter bar contacts the ground first. At the headland, the inside end is lifted first. That is how your sward is perfectly protected.
- Protected against damage. The mechanical collision safety device provides a swing arc of approx. 12°. This prevents you from damaging the mower in the event of a collision. After it has been triggered, simply reverse the machine a short distance to engage the cutter bar again.
- Long service life. Mounting points at each end of the cutter bar protect it against twisting. As a result, the gears and bearings are subjected to less stress to guarantee smooth operation and long service life. The compact driveline and drive belt tension regulated by a back tension idler ensure robust and reliable power transmission.
- Convenience. The guards fold away to provide optimum access to the cutter bar. This makes it possible to clean the machine thoroughly and change blades quickly and easily. The guard curtains are made from especially tough material to reliably catch stones and soil.
Specification for PÖTTINGER NOVADISC 262 Rear Mounted Mower with Side Pivot Suspension
Rear
2.62m
2.9m
50hp
540rpm
12
675kg
6
Swath discs
This product has no reviews.
Leave a Review
This product has no questions.
Ask a Question
Videos
-
Description
The NOVADISC rear mowers with side pivot mounting are our lightweight models that run smoothly and easily. Thanks to their low weight, these mowers are also suitable for use on steep ground.
Key features:
- Cost-effective and suitable for working on slopes.
- Lightweight construction with high rigidity.
- Able to adapt. The wide + 22/- 30 degree arc of movement enables easy mowing on rough ground and embankments. For a short-time mowing up to + 45° through lifting the interlocking lid is permitted.
- Safe and practical. The optimised center of gravity of the machine ensures safe and compact road transport. In the transport position, the mower is folded through 102°. This gives you a clear view to the rear through both rear-view mirrors. Using the optional hydraulic folding side guard, you can achieve the lowest possible transport height. With the optional parking stand, your mower can be parked vertically to save space.
- Easily mounted. Thanks to the adjustable mounting pins, these mowers can be hitched up to your tractor quickly and easily. Two headstocks are available for outer track widths of 1,800 – 2,200 mm and 2,200 – 2,600 mm. A practical PTO shaft holder makes hitching up easier.
- Unique weight alleviation springs.
- NOVADISC lifting system. The mower is lowered so that the outer end of the cutter bar contacts the ground first. At the headland, the inside end is lifted first. That is how your sward is perfectly protected.
- Protected against damage. The mechanical collision safety device provides a swing arc of approx. 12°. This prevents you from damaging the mower in the event of a collision. After it has been triggered, simply reverse the machine a short distance to engage the cutter bar again.
- Long service life. Mounting points at each end of the cutter bar protect it against twisting. As a result, the gears and bearings are subjected to less stress to guarantee smooth operation and long service life. The compact driveline and drive belt tension regulated by a back tension idler ensure robust and reliable power transmission.
- Convenience. The guards fold away to provide optimum access to the cutter bar. This makes it possible to clean the machine thoroughly and change blades quickly and easily. The guard curtains are made from especially tough material to reliably catch stones and soil.
-
Specifications
Rear 2.62m 2.9m 50hp 540rpm 12 675kg 6 Swath discs -
