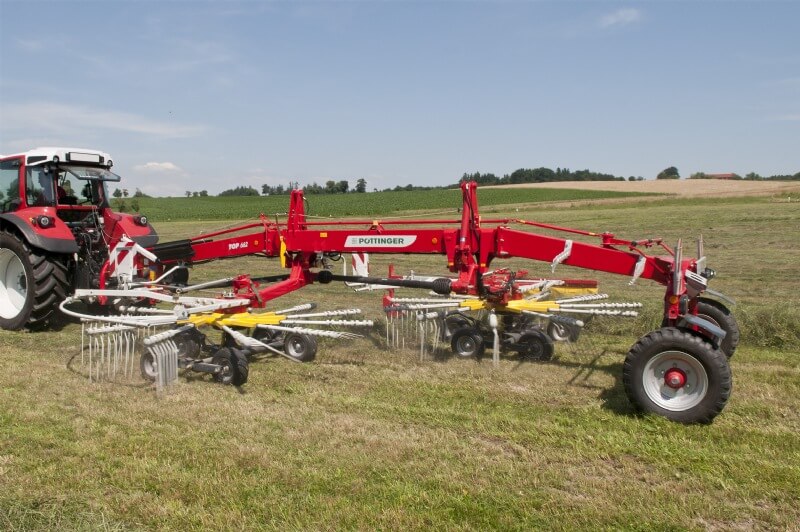

PÖTTINGER TOP 662 Twin Rotor Rake with Side Swath Placement

Rake type : Two Rotor Side Swath Rake working width : 6.55m Rake tine arms per rotor : 12 Rake rotor diameter : 3.07m Rake swath placement : Right Rake mounting : Trailed Rake weight : 1990kg

PÖTTINGER TOP 662 Twin Rotor Rake with Side Swath Placement

The TOP twin rotor rakes with side placement always rake tidily in different operating conditions. In combination with the MULTITAST wheel, the respective chassis guarantee optimum ground tracking.

Key features:

  • TOP 662 with three-wheel or five-wheel chassis.
  • The flexible rake with steering places the swath to the right and has a working width of 6.55 m when raking into one swath. You also have the option of a double swath function with a working width of 7.30 m.
  • The side rake is equipped with three-wheel chassis as standard. As an option, you can order additional tandem axles and MULTITAST wheels. The standard three-wheel chassis on the TOP 662 can be steered at the front.
  • In combination with the articulated rotor suspension, this guarantees exact guidance of the tines over any uneven ground. If you prefer a five-wheel chassis with tandem axle and MULTITAST wheel, simply order it as an optional extra.
  • You benefit from the best ground tracking in any terrain and absolutely smooth running at maximum driving speed.
  • If you also want to use the TOP for night swaths or in hay and straw, you can equip the TOP 662 with a double swath function.

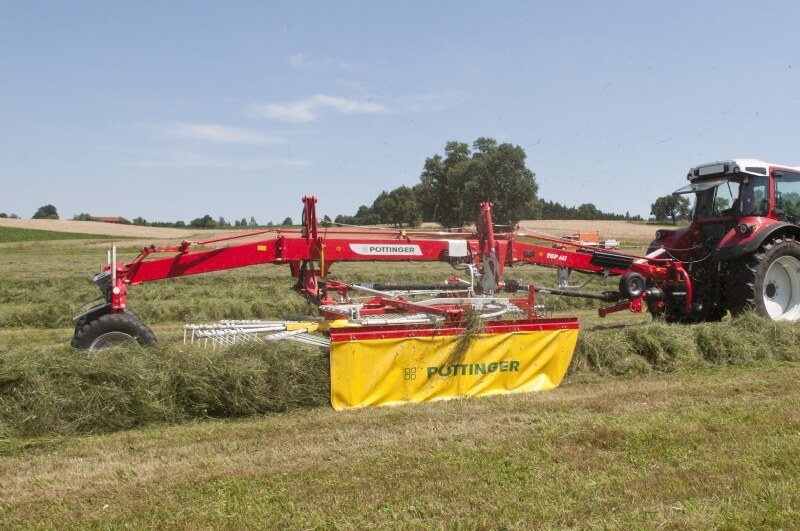

  • The double swath function is made possible by using a front swath curtain. The rotors are simply extended and retracted using double-acting hydraulic cylinders.
  • With two swaths the working width increases from 6.55 m to 7.30 m.
  • Extremely manoeuvrable. The two TOP 662 is highly manoeuvrable due to the way it is attached. When cornering they follow exactly in the tractor's tracks. This saves you time and effort at headlands and during transport.
  • Straightforward attachment.  TOP 652 side rakes are attached using a yoke. They are steered by a linkage to precisely follow in the tractor's tracks.
  • The large 260/70-15.3 tyres on the chassis also ensure smooth running.
  • The driveline features cardan shafts, which run smoothly and have a long service life. A PTO shaft with awide-angle c.v. joint at one end is standard. You also get a PTO shaft holder and the hose holder as standard.
  • Each rotor is protected individually.  The maintenance interval is 50 hours.
  • Easy to operate and transport.  Even without removing the tine arms, you will not exceed 4 m in the transport position, so it is possible to change plots without leaving the tractor.
  • The rakes are operated by single-acting cylinders. Both rotors are raised or lowered one after the other for turning and transport via step sequence control. A double-acting connection is required for the double swath function of the TOP 662.
  • The lifting height of the rotors at the headland is 30 or 35 cm
  • The parking height of the TOP 662 with tine arms removed and swath curtain folded down is 3.60 m
  • A 2.55 m track width is available as an option on the TOP 662 for, especially narrow transport widths.
  • Warning signs and road lights are standard.
PÖTTINGER TOP 662 Twin Rotor Rake with Side Swath Placement

Specification for PÖTTINGER TOP 662 Twin Rotor Rake with Side Swath Placement

Two Rotor Side Swath 6.55m 12 3.07m Right Trailed 1990kg
