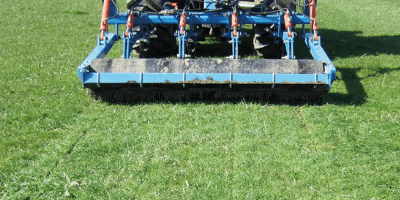

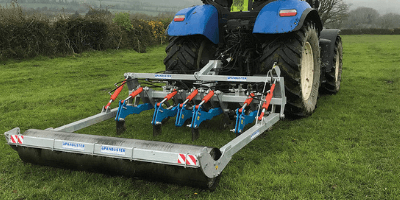

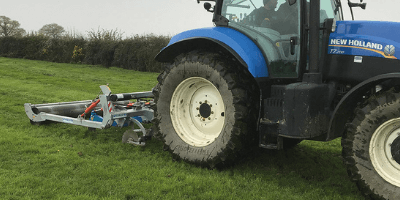

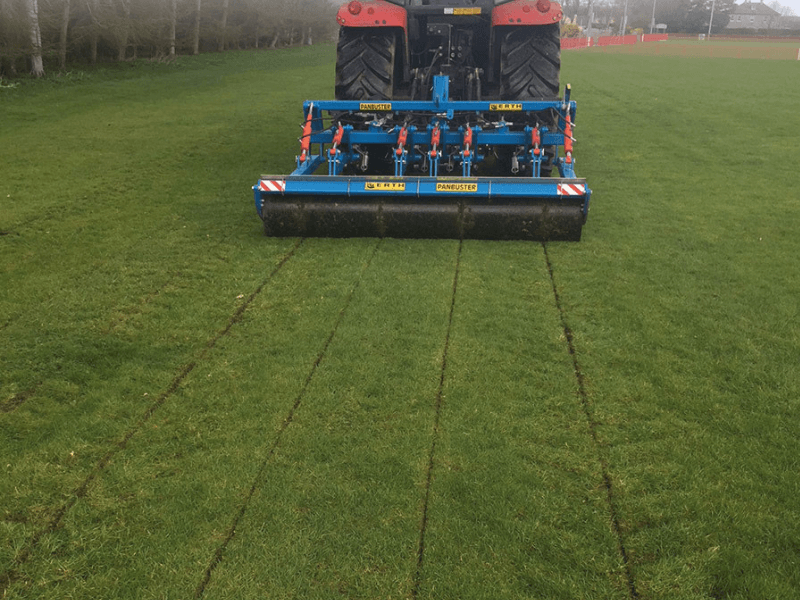

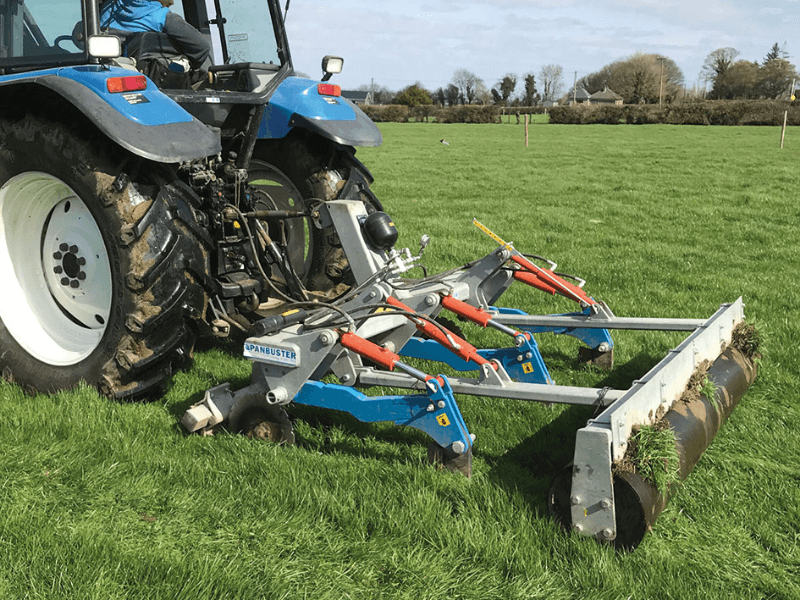

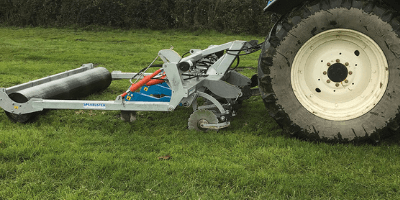

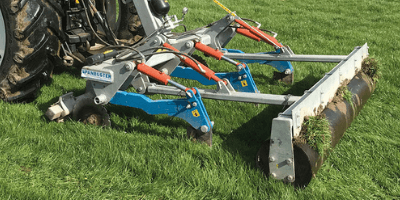

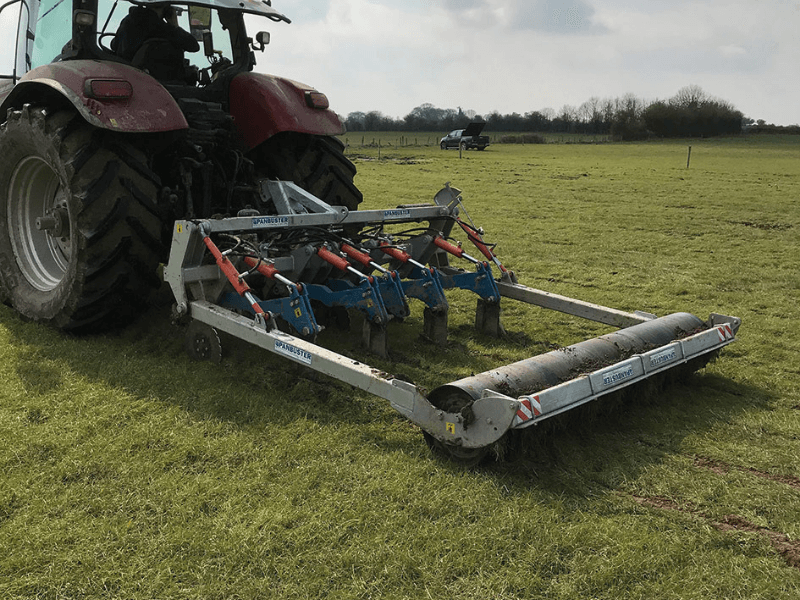

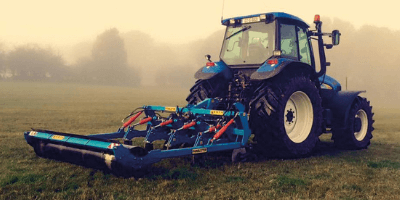

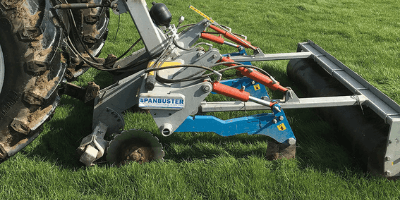

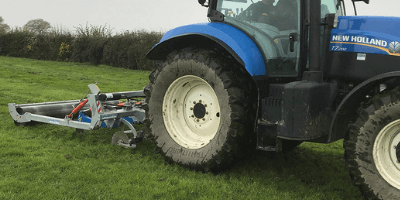

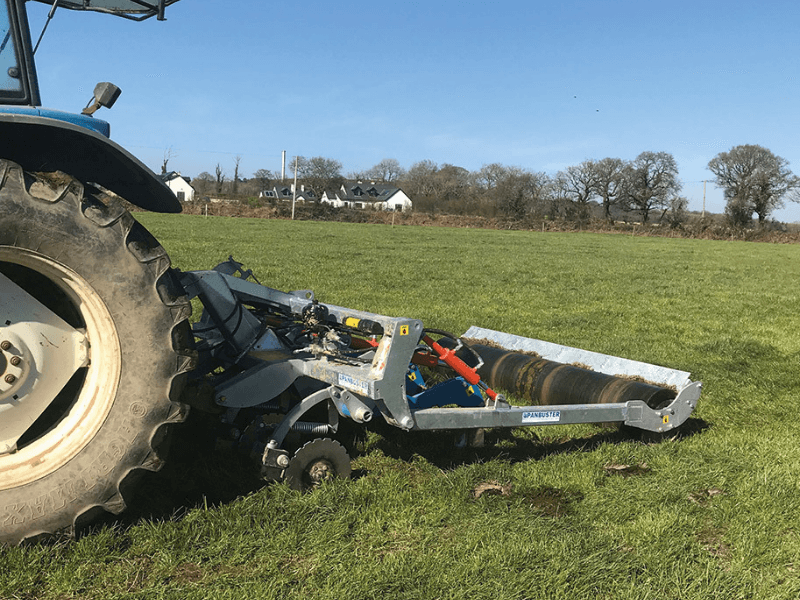

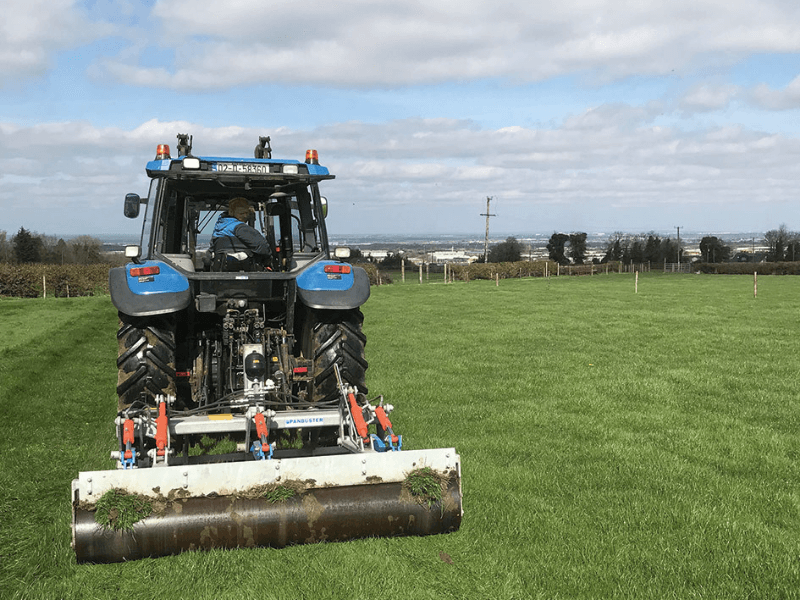

Erth Engineering 3 Leg Compact Eco Grass Panbuster

Subsoiler type : Grass Subsoiler no. of legs : 3 Subsoiler leg spacing : 900mm Subsoiler working width : 2700mm Subsoiler transport width : 2350mm Subsoiler weight : 960/1050kg Subsoiler power required : 80hp

Erth Engineering 3 Leg Compact Eco Grass Panbuster

Grow more grass, extend your growing season, improve grass quality and improve drainage with an Erth Engineering 3 Leg Compact  Eco Grass Panbuster.

In grass subsoiling the compaction starts at the surface and builds progressively deeper. This will cause poorer water transfer, more anaerobic activity and shallower rooting – less grass, less palatable grass, waterlogging of the surface and the land can become unusable by livestock and machinery.

The new grass leg developed by Erth Engineering sets new standards of performance. This is not an arable leg slimmed down, or a smaller foot – it does not stagger the legs to overcome the failings in design – this is the standard that just keeps on giving. By placing the legs in a line the lift is maximised and can be controlled more by adjusting the toplink.  A 3-leg Panbuster often outperforms 4-leg alternatives with stagger. As the point wears, lift and penetration can be helped by shortening the toplink – the wear logistics are enhanced.

Every soil has different characteristics and behaves differently with varying moisture, however, the wave action generated by panbusting levers open cracks maximising the cracks generated in the top zone and works on all soil types and conditions.

This is not arable subsoiling – there is little point in high shatter at depth but low shatter at the surface. This is grass subsoiling—high shatter near the surface reversing the compaction.

Compact / Eco Panbuster models offer a simple disk system and the same format and spacing between disk, leg and roller. Simple 300 by 100 frame with indispension-type rubber-mounted disk and single bolt depth adjustment.

Key Features:

  • AUTORESET: The auto-reset system on the Erth Engineering Panbuster is the best auto reset on the market with the best protection.
  • HIGH LIFT: The higher the lift the higher the protection.
  • SIDE SWING: Reduced stress on machine and brings up less stones.
  • SHEAR BOLT: Maximises protection.

STANDARD FEATURES:

  • Hydraulic roller/hydraulic depth control – all machines come as standard with hydraulic depth control and indicator. This allows depth to be changed to suit conditions. The machine can be lifted out at the end of the run using the roller. The roller then rolls the exits for a clean finish.
  • Sprung loaded disks.
  • Marine spec Nikrom ram rods – extremely reliable.
  • 400 brinnel materials used for high stress areas.
  • Load bearing areas are bushed and have large pins.
  • In line legs maximise the lift. Toplink adjustment can be used to compensate for wear, extend life and reduce running costs.

Optional Extras:

  • Soft Drive on Rear Roller
  • Steel Toothed Packer
  • Grass Skid System
  • Various Leg Options – inc. mole plough legs
  • Adaption for Umbilical Manure Systems
  • Long Legs
  • Arable Legs
  • Galvanised Frame
  •
Erth Engineering 3 Leg Compact  Eco Grass Panbuster

Specification for Erth Engineering 3 Leg Compact Eco Grass Panbuster

Grass 3 900mm 2700mm 2350mm 960/1050kg 80hp
