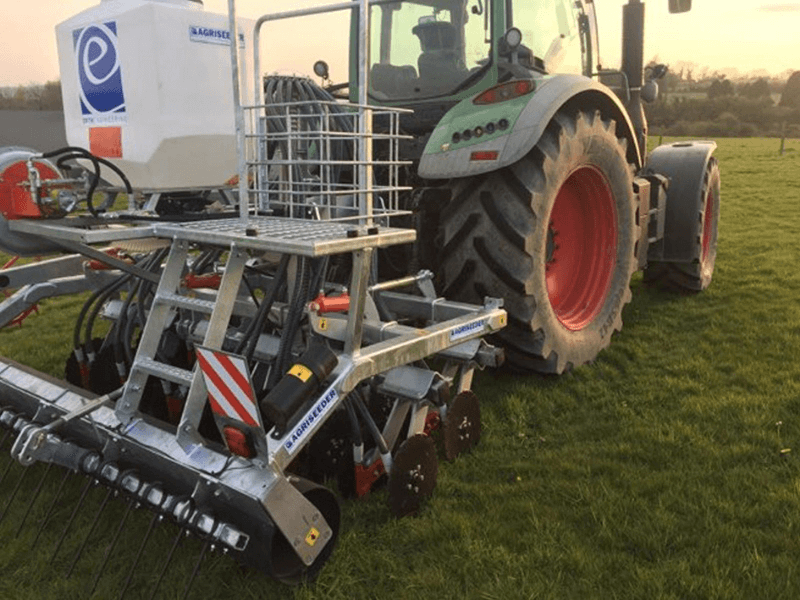

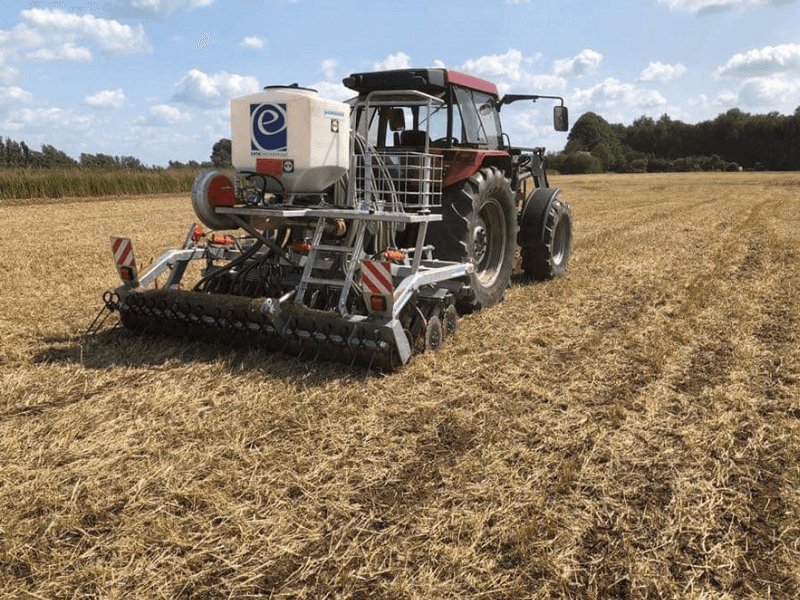

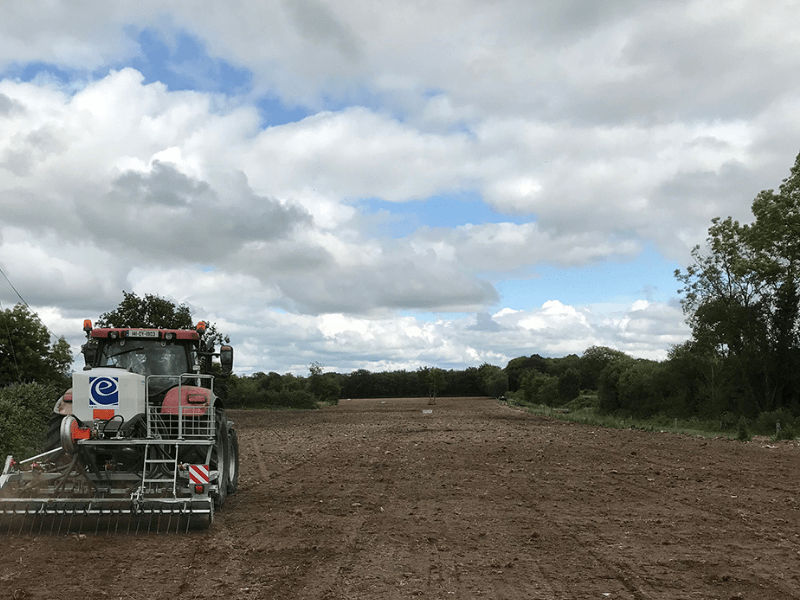

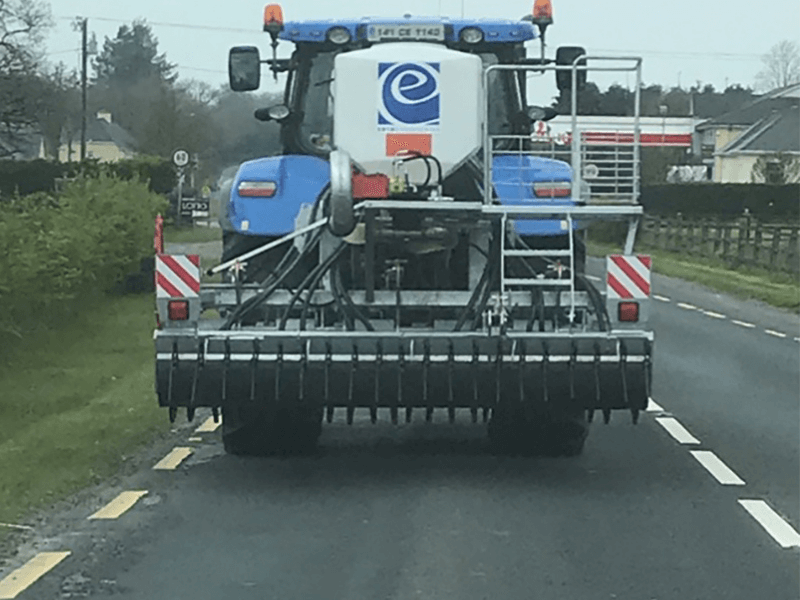

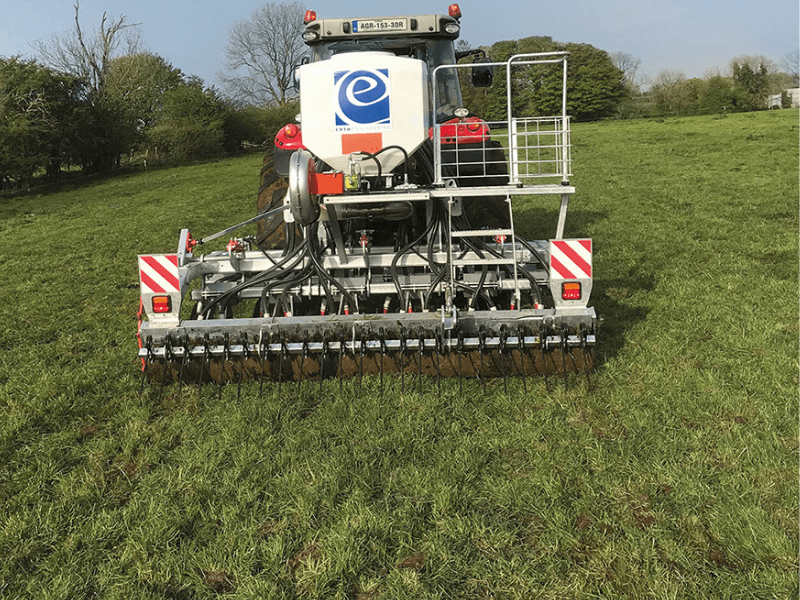

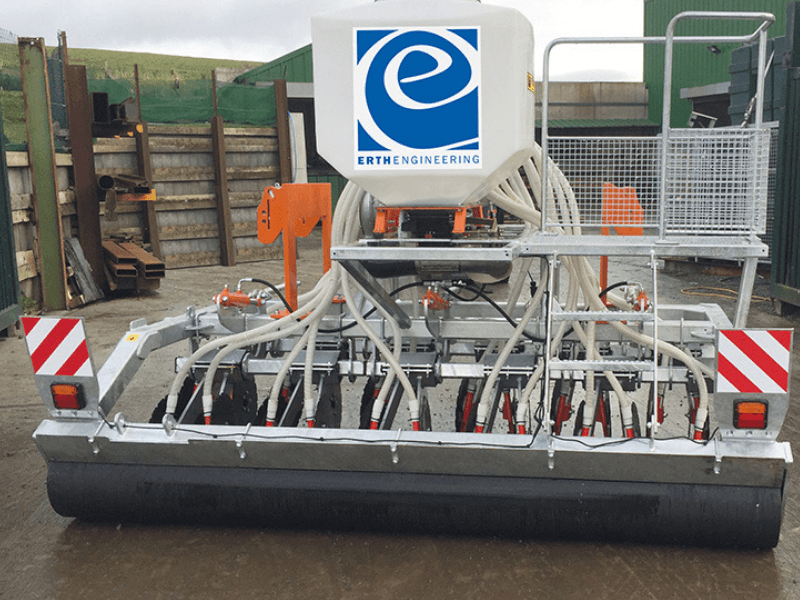

Erth Engineering 32 Row 4m Agriseeder

Seed drill type : Air Seed Drill Seed drill row spacing : 125mm Seed drill row width : 7mm Seed drill weight : 2240kg Seed drill power required : 140hp Seed drill no of frames : 4

Erth Engineering 32 Row 4m Agriseeder

Erth Engineering Agriseeder offers a flexible drill perfect for sowing clover, grass, fodder crops, cover crops, set aside mixes and cereals; into existing swards or burn off.

Key Features:

  • Fertility is retained at the surface.
  • Firm surface with minimal disturbance.
  • Less moisture loss.
  • Does not lift stones or drag trash.
  • Delivers in hard and soft conditions.
  • Exceptional performance wet and dry.
  • Superb depth control on undulating ground.
  • Faster and cheaper sward turnaround.
  • Low hp requirement; tractors from 100hp.
  • The slot created is a natural moisture trap.
  • Slot created shelters the young seedling.
  • Tilth created in the slot.
  • SLIT SEEDING: Subject to an adequate temperature, moisture is the single most important element needed for germination. By cutting a slit in the ground a natural moisture trap is produced so that seed germination is maximised and the young seedling is sheltered whilst it anchors its roots directly into the soil so minimising losses as grazing commences. If a slit is cut too deep the seedling may be slow to emerge or can fail as it will run out of energy and if cut too shallow then it can lose out on the advantages of the slit therefore good depth control is essential.
  • Sports fields apart, grass fields are undulating so depth control is more difficult. Most drills have a sprung loaded system to help cope with undulations. However, the download pressures needed for a grass drill to do its job reduce the flexibility of these devices and can severely compromise depth control where there are ground contours as all the weight can be concentrated over several coulters.
  • Shallow seeding is always preferable as it provides a quicker turnaround of the sward, however, some drills are too rigid so when they try and sow shallowly they miss or they sow deep. Autocontour allows more flexing of the drill so the drill overcomes this problem.
  • AUTOCONTOUR: With autocontour, a unique feature of the Erth Engineering Agriseeder, a secondary suspension system is incorporated to increase flexibility. The drill frames are partitioned into eight-coulter sections and the download to each is applied by a hydraulic ram. The rams are linked to each other so download per frame equalises despite undulations. This is seen by changing ram position as the machine goes down the field and is proven by the consistency of the cuts.
  • Although autocontour was developed to help achieve better seeding depth over undulating conditions it does so much more.
  • Reduced loadings improve the reliability of all parts – bearings, rubbers, everything has an easier time.
  • The flexibility of the Agriseeder with more even loading per coulter allows the machine to work in hard/dry and wet/soft conditions.

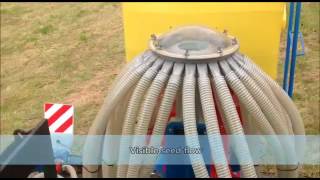

  • SEED DISTRIBUTION: Distribution head gives even distribution across all coulters across slopes and up and downhills. The visible seed flow allows the operator to see that everything is metering okay and the change in noise as the seed runs out means that a separate low-level sensor is not required.
  • DRILL BOTTOM END: Forge de Niaux 4.5mm boron blade.
  • Large twin roller 3206 bearing twin sealed and greaseable for reliability.

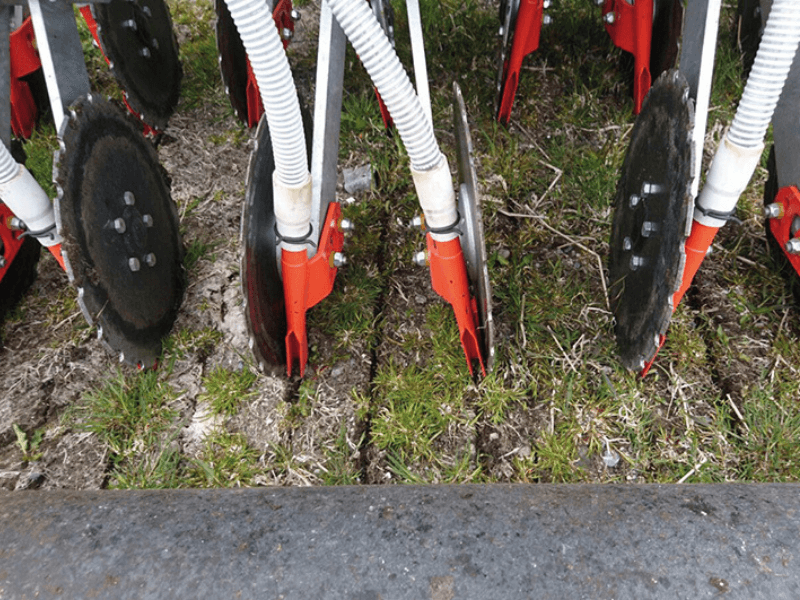

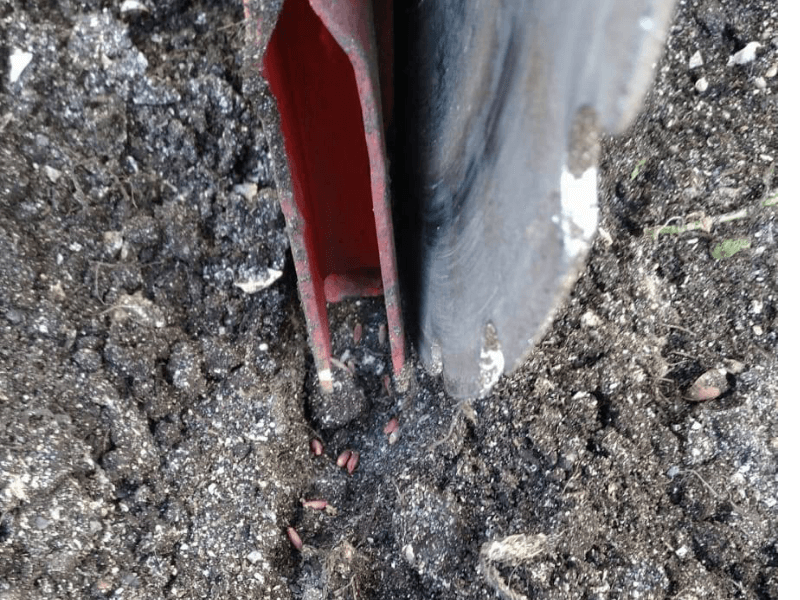

  • Seed coulter has replaceable tungsten carbide tile facing the soil pressure on the outside and loaded against the disk by rubber washers allowing the unit to be lightly loaded to disk to enable cleaning of the blade and prevent the build-up of material between disk and seed delivery tube. Where grass residue is present this can prove invaluable against downtime.
  • Large 40mm rubbers provide a good grip onto the bottom frames preventing lateral movement (changing row spaces) and allow more travel and flexibility. There is a gap between top and bottom elements so that the units can be tightened progressively as the years' progress to enable the functionality to remain. Both units oppose lateral forces so again stability is good.

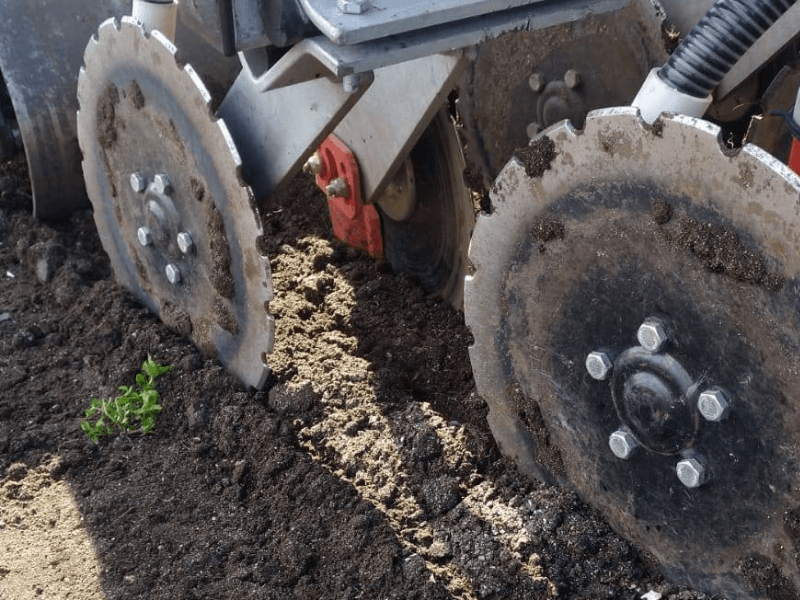

  • The single disk on the Agriseeder works at a pronounced angle reducing pressure on the seed coulter and enabling a good finish. The slot effectively opens up to form a small band and the flexing of the soil produces tilth to provide a better environment for the young seedling to establish and flourish.
  • Galvanised elements help longevity when using with lots of manure.
  • Rams are supplied with marine specification Nikrom rods which give excellent reliability long term.

Optional Extras:

  • Front Harrow – where the drill is to be used in conjunction with conventional tillage or with reekie harrow to reduce repression from chemicals.
  • Rear Harrow – helps dust more fines into the slot and helps neutralise chemical repression.

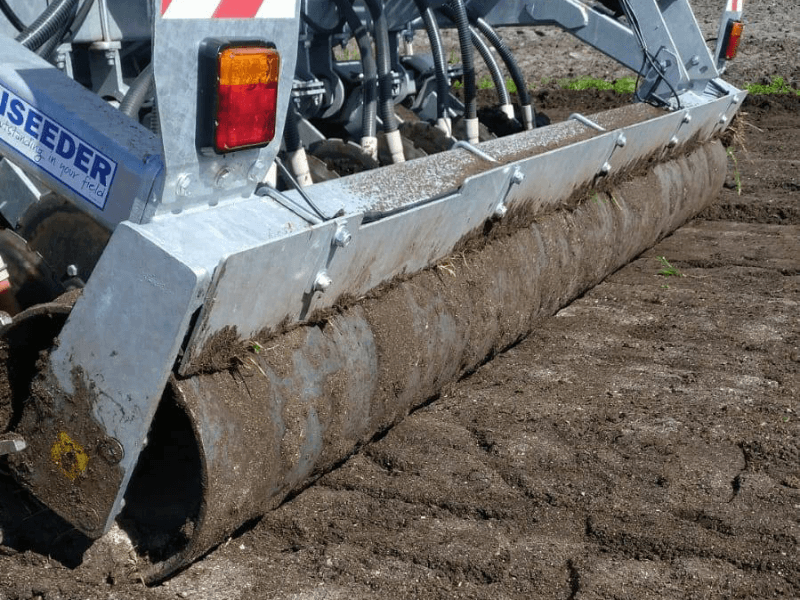

  • Farm Flex Roller – ideal for drilling on cultivated ground.
  • Galvanised Frame.
  • Second Hopper and Double Entry Coulters for fertilizer.

Hopper Options:

  • Teknik Plus
  • Erth Electric
  • Erth Mechanical

Erth Engineering 32 Row 4m Agriseeder

Specification for Erth Engineering 32 Row 4m Agriseeder

Air Seed Drill 125mm 7mm 2240kg 140hp 4
