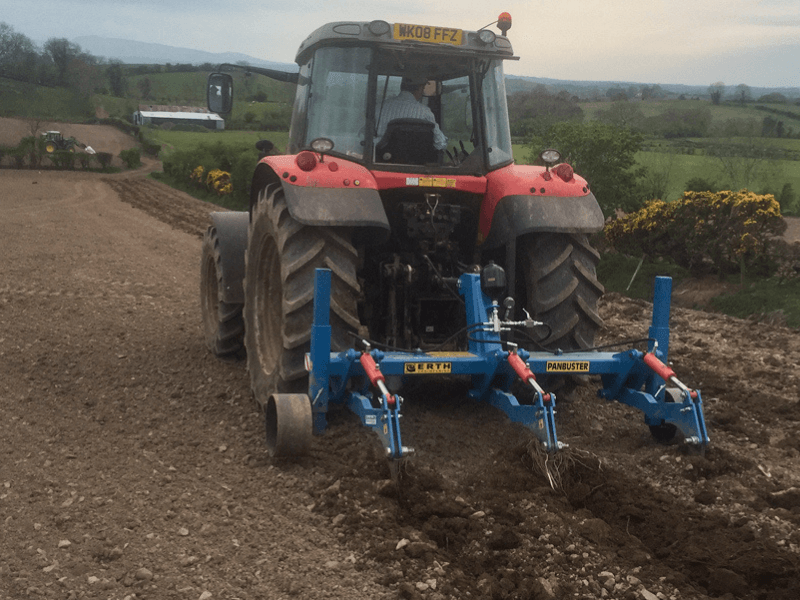

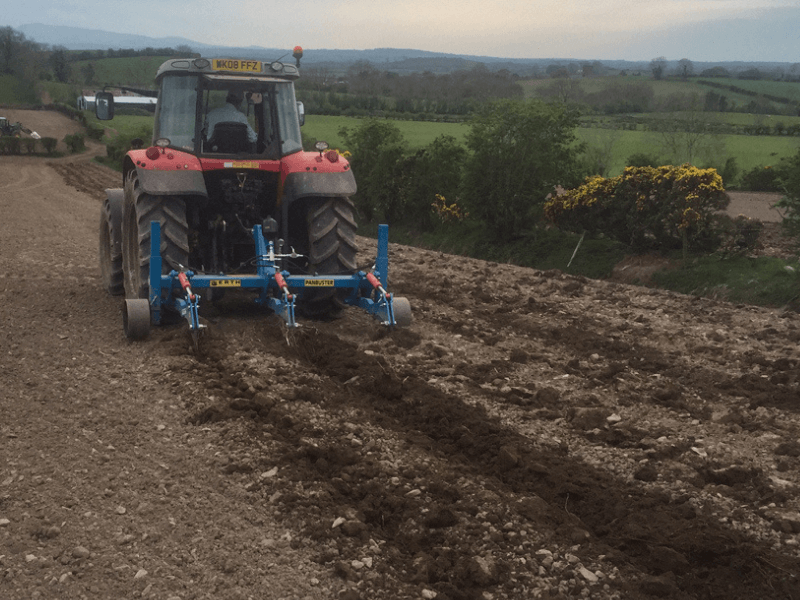

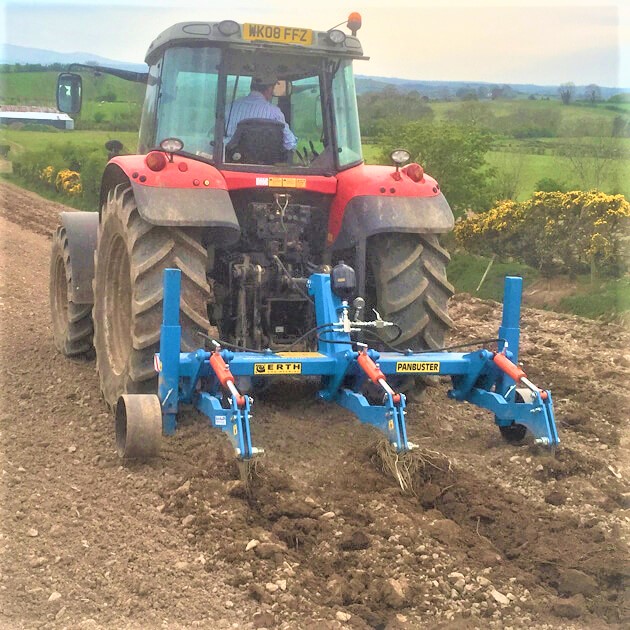

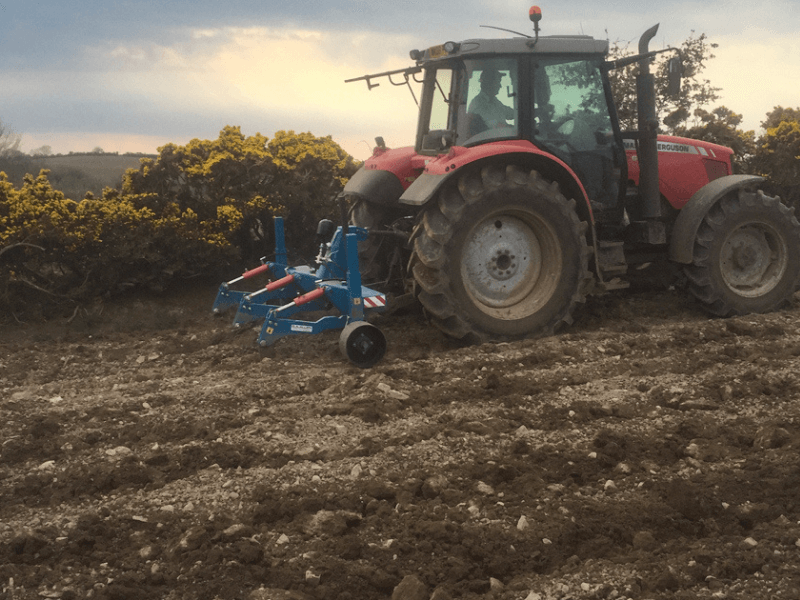

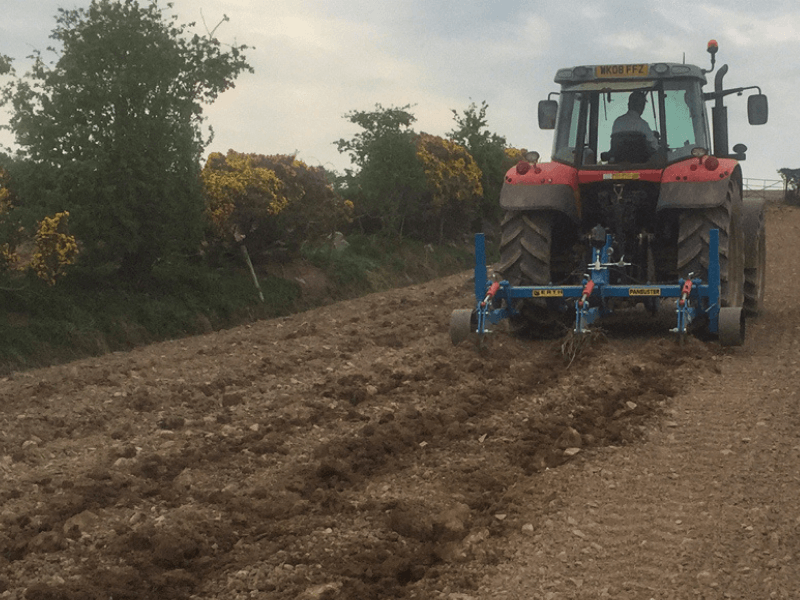

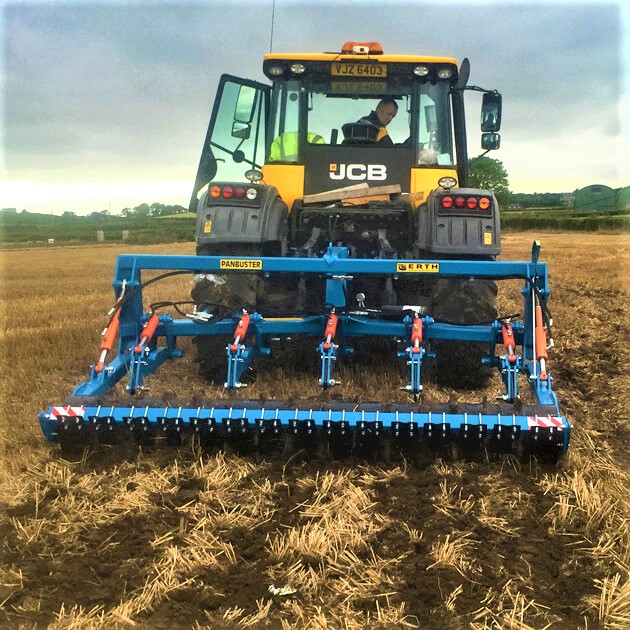

Erth Engineering 3/4 Leg Shearbolt Arable Panbuster

Subsoiler type : Arable Subsoiler no. of legs : 3 / 4 Subsoiler leg spacing : 900 / 600mm Subsoiler working width : 2400mm Subsoiler transport width : 2400mm Subsoiler weight : 960kg Subsoiler power required : 100hp

Erth Engineering 3/4 Leg Shearbolt Arable Panbuster

A Subsoiler to Grow More Grass, Extend Your Growing Season And Improve Drainage with an Erth Engineering 3/4/5 Leg Shearbolt Arable Panbuster.

Take care of your biggest asset – the soil.

Erth Engineering manufactures the ultimate low disturbance subsoiler. Offering a flexible subsoiler perfect for improving aeration and drainage with high finish and low horsepower.

A well aerated and drained soil with a good structure will maximise root development. Good root development will assist plant production above ground. The use of a suitable subsoiler can increase production and profitability for any cropping regime.

The technology developed on our grass subsoiler provides the ultimate low disturbance leg assembly for those looking for minimal soil disruption at the surface whilst achieving good soil movement in lower profiles below the surface.

Key features:

  • The best auto-reset on the market with three safety functions; high lift, side swing, and shear-bolt.
  • The only auto-reset on the market using solid legs (50mm) with high-grade pull points.
  • A hydraulic system incorporating an accumulator with a secondary bladder accumulator for a fully enclosed auto-reset system.
  • Hydraulic reset allows break-back pressure to be varied to suit conditions.
  • Reset trips up and back to minimise stress and prevent stones from rising to the surface.
  • Large pins and bushes on load-bearing areas are used throughout the machine to target potential wear.

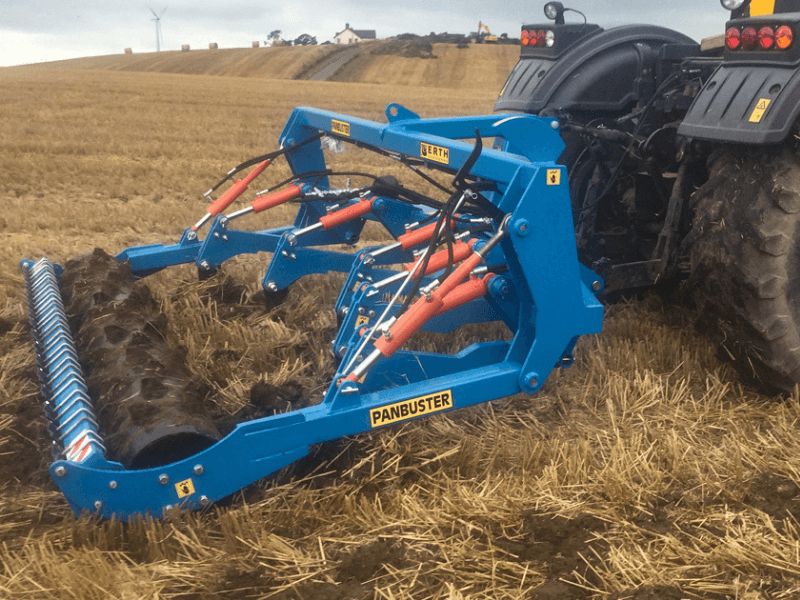

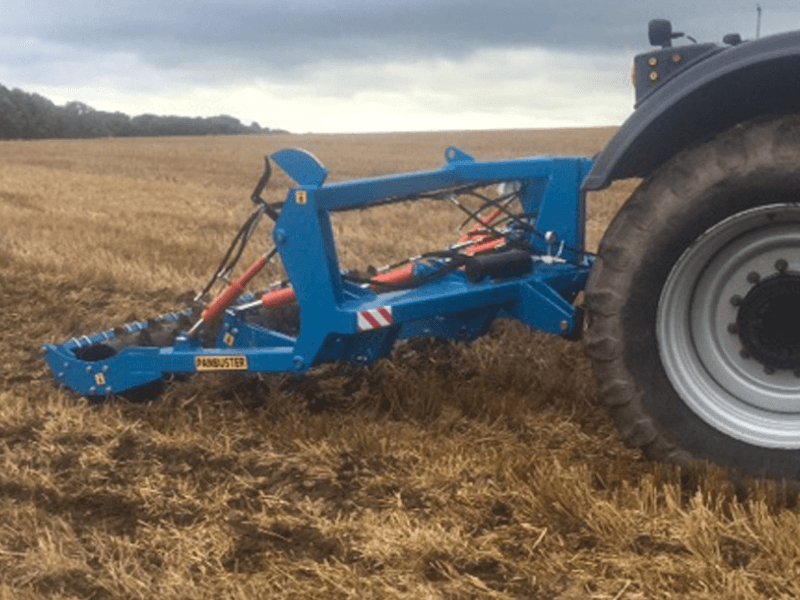

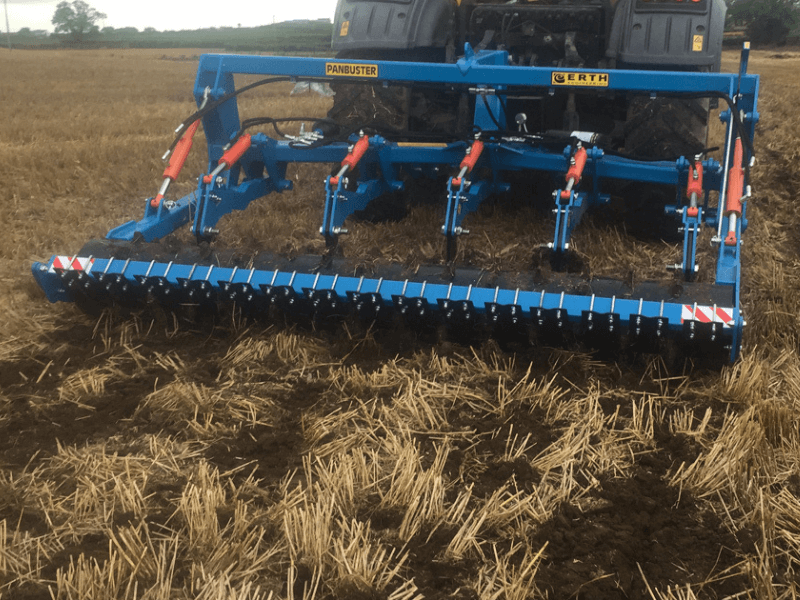

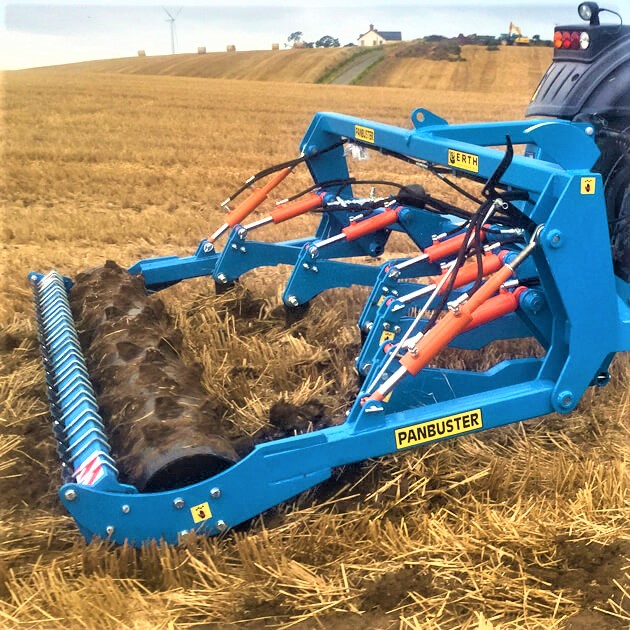

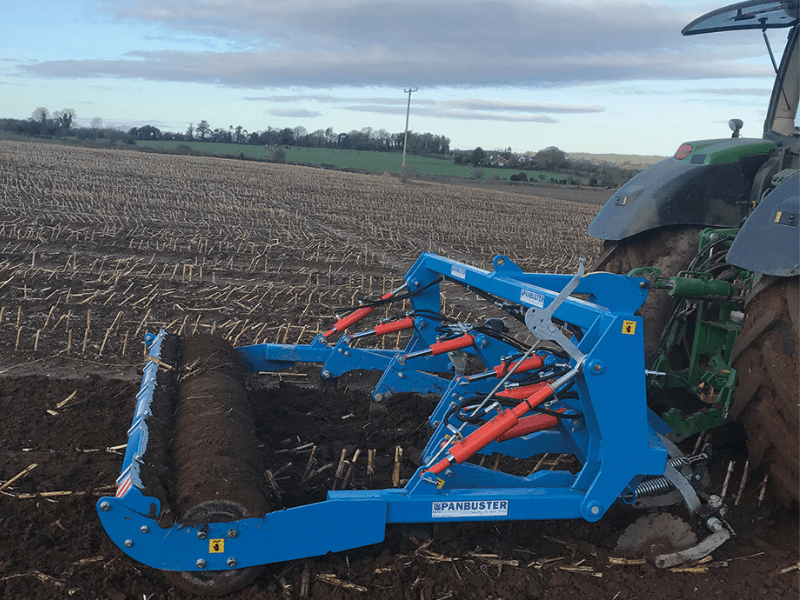

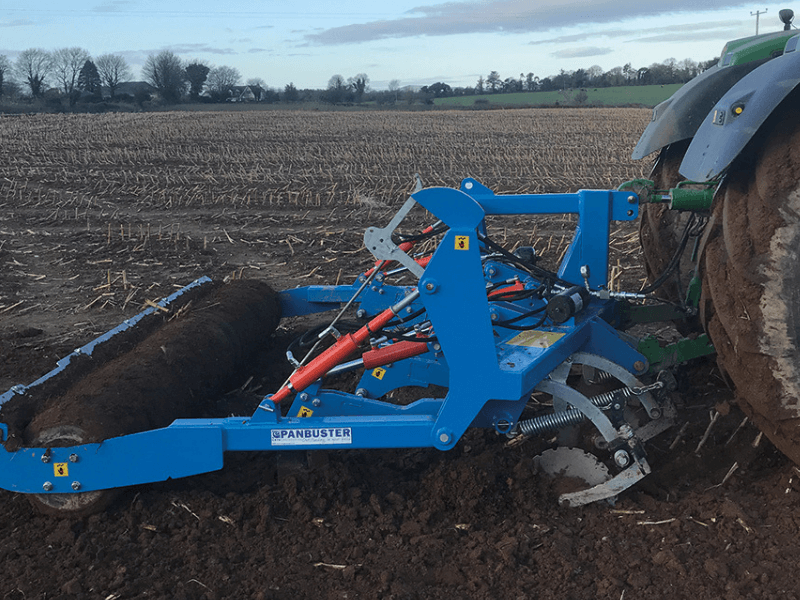

  • Hydraulically adjustable rear roller c/w indicator gives positive depth control, improved traction, and levels the surface, enabling targeting of problem areas from the cab.

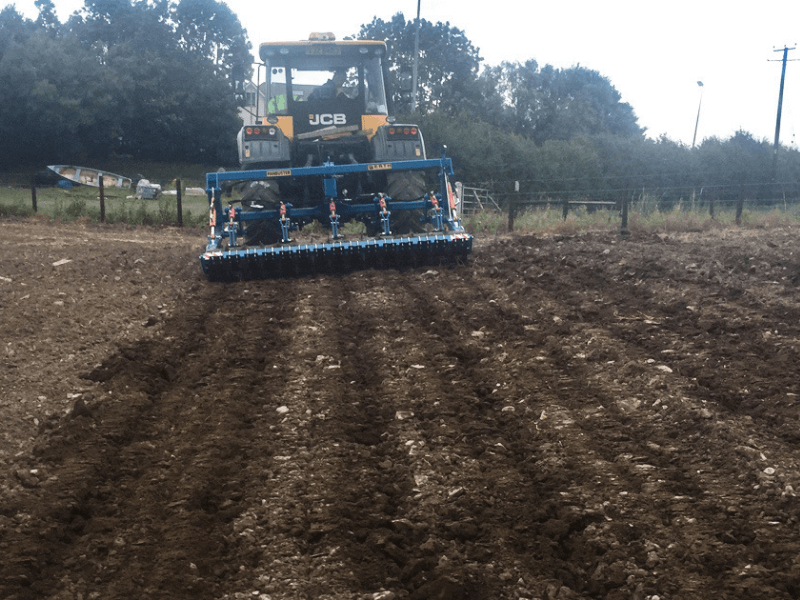

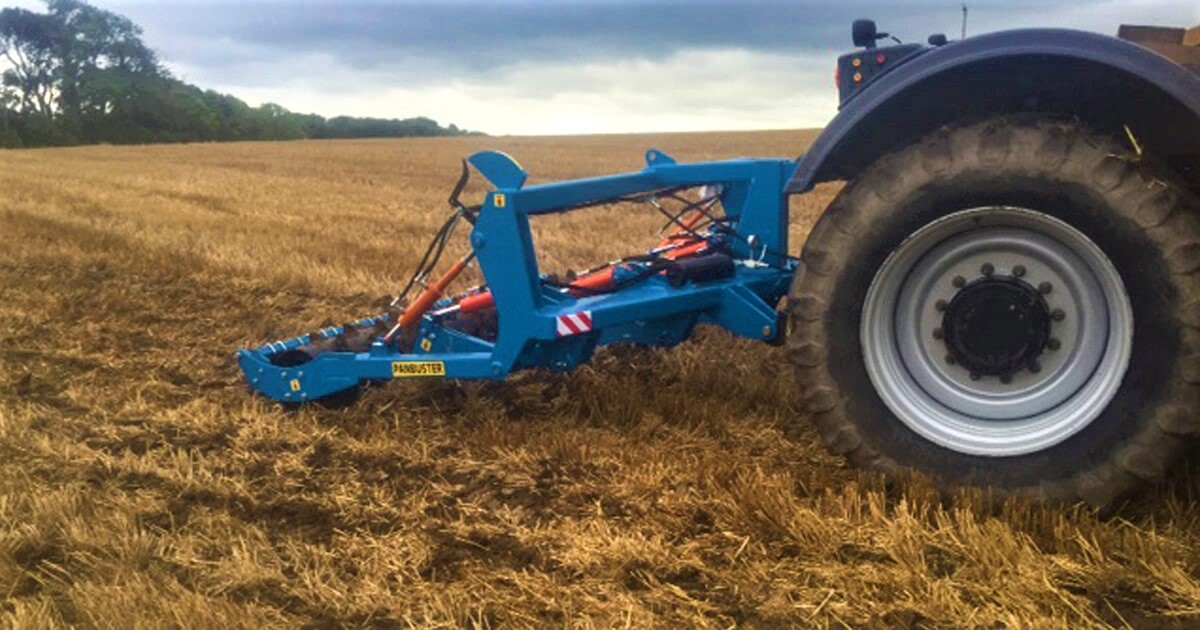

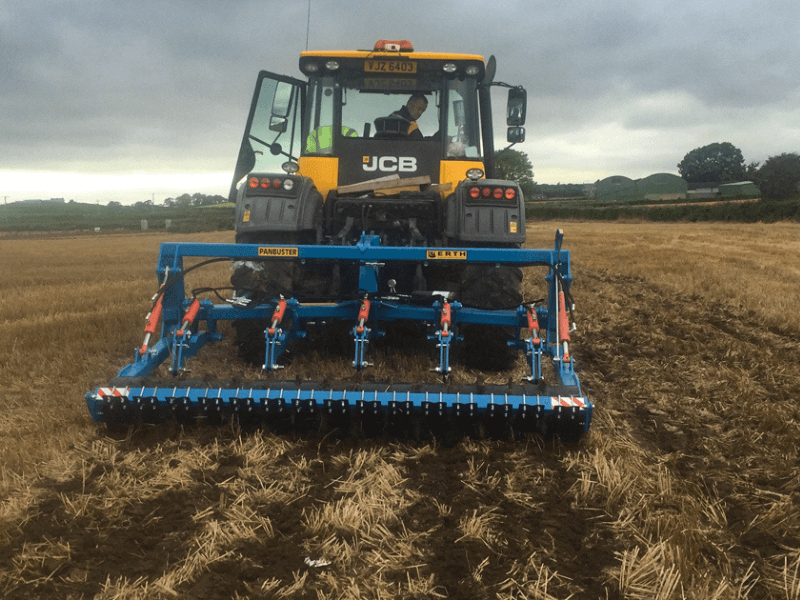

  • SIZES: 3-leg Eco (depth wheels), 3-leg, 5-leg V-form and straight frame; 8-leg folding & 10-leg folding.
  • LEG TYPES: Conventional arable with 3-piece wing, shin and point. This combination is superior than 1-piece units as it allows the parts to be worn out more efficiently. Points and shins are held on by a single roll pin and the wing by a single bolt. Legs are hard-faced to prevent soil flow producing taper wear at the rear.  Hook and pin grass leg. The shin is hooked in at the top and the point holds the whole assembly by one roll pin. The shin is reversible and slightly wider than the leg to minimise legwear. This is the ultimate low disturbance, low horsepower leg assembly.

Optional extras:

  • Choice of packers – toothed packer, rubber roller packer or wedge packer.
  • Choice of drill fitting kits for small seed units.
  • Lighting kit.
  • Special build variations are available for oilseed rape.
Erth Engineering 3/4 Leg Shearbolt Arable Panbuster

Specification for Erth Engineering 3/4 Leg Shearbolt Arable Panbuster

Arable 3 / 4 900 / 600mm 2400mm 2400mm 960kg 100hp
