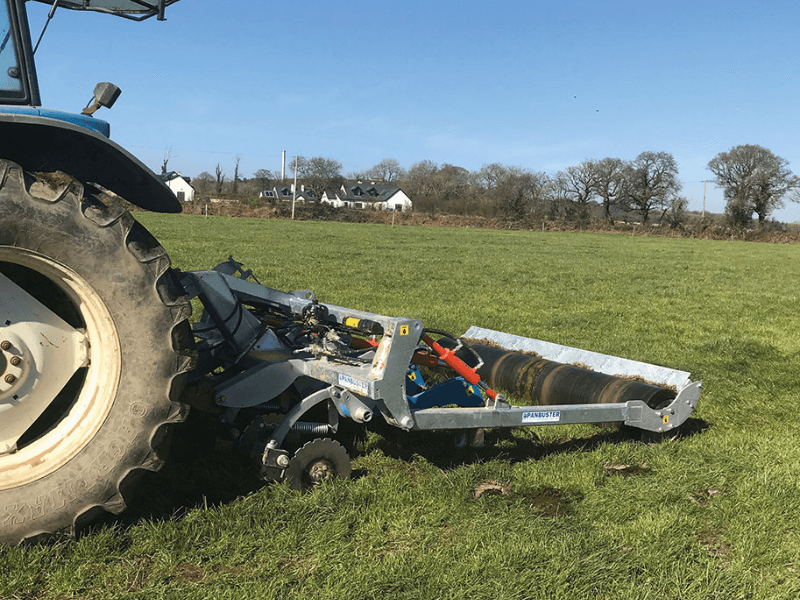

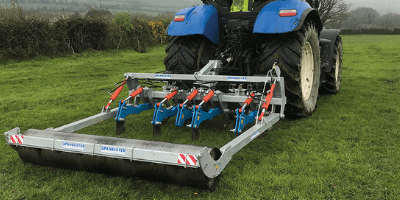

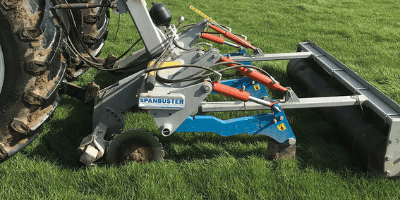

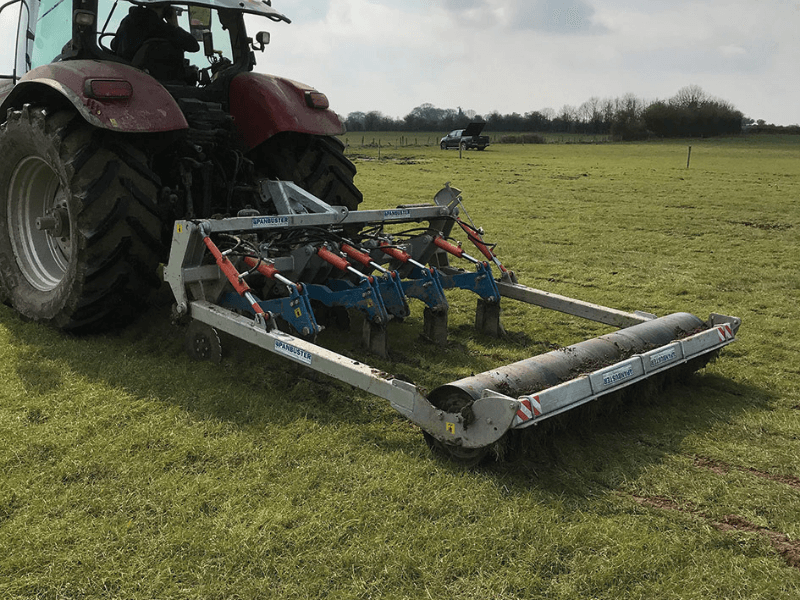

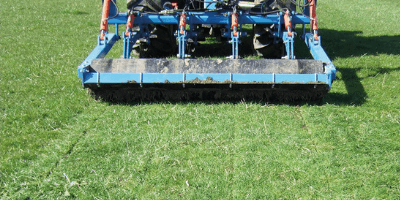

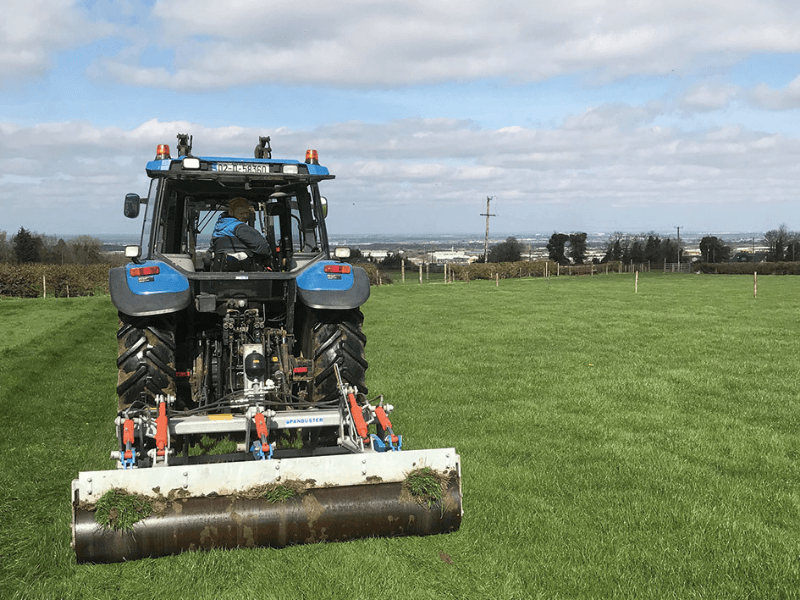

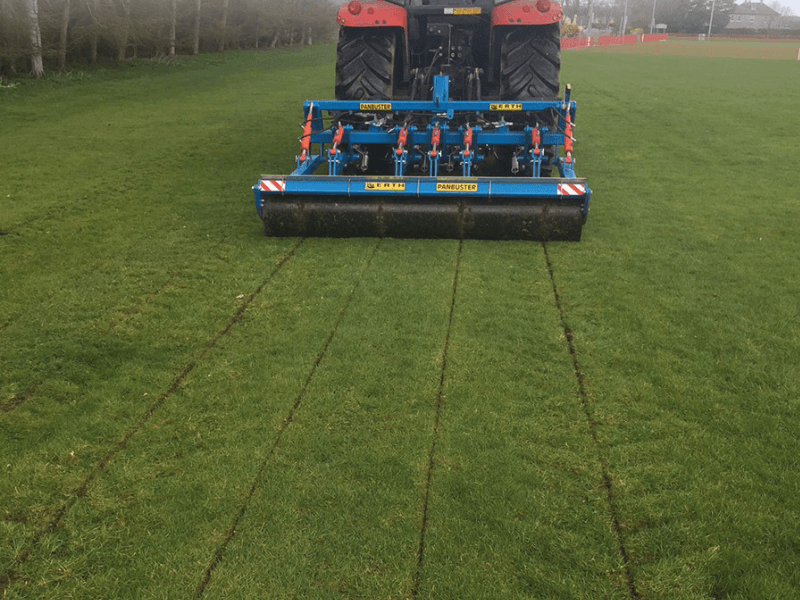

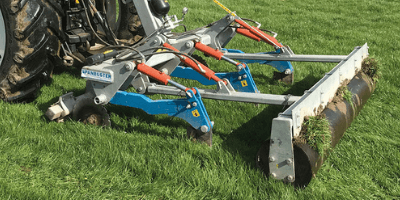

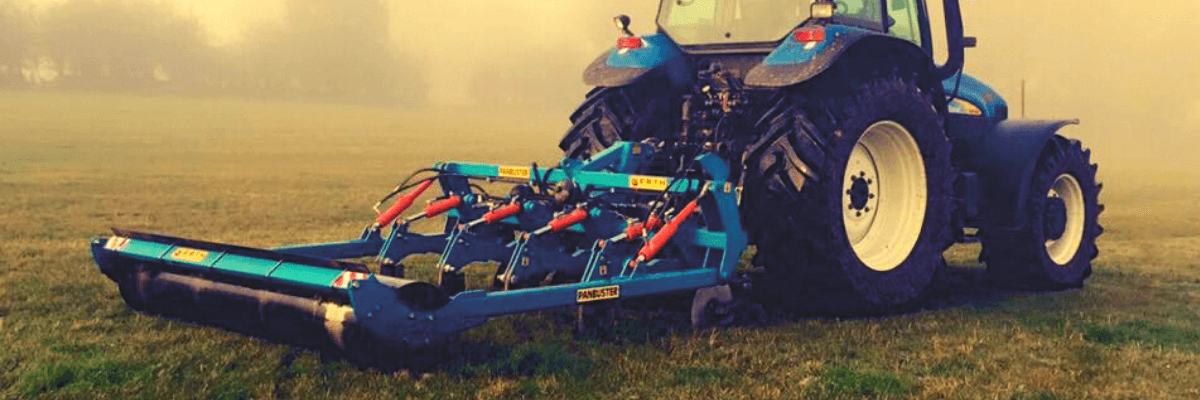

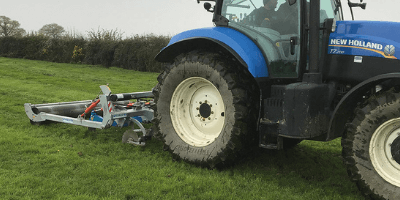

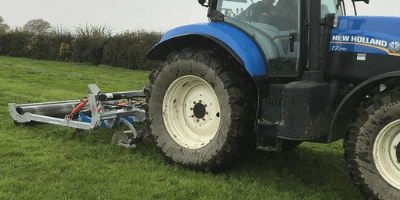

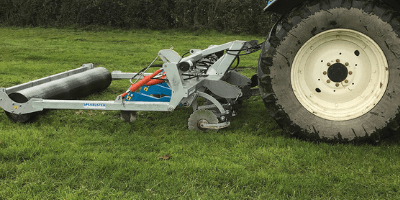

Erth Engineering 3/4/5 Leg Shearbolt Grass Panbuster

Subsoiler type : Grass Subsoiler no. of legs : 3 / 4 / 5 Subsoiler leg spacing : 1200 / 800 / 600mm Subsoiler working width : 3000mm Subsoiler transport width : 2950mm Subsoiler weight : 1120kg Subsoiler power required : 130hp

Erth Engineering 3/4/5 Leg Shearbolt Grass Panbuster

Grow more grass, extend your growing season, improve grass quality and improve drainage with an Erth Engineering 3/4/5 Leg Shearbolt Grass Panbuster.

In grass subsoiling, the compaction starts at the surface and builds progressively deeper. This will cause poorer water transfer, more anaerobic activity, and shallower rooting – less grass, less palatable grass, waterlogging of the surface and the land can become unusable by livestock and machinery.

The new grass leg developed by Erth Engineering sets new standards of performance. This is not an arable leg slimmed down, or a smaller foot – it does not stagger the legs to overcome the failings in design – this is the standard that just keeps on giving. By placing the legs in a line the lift is maximised and can be controlled more by adjusting the toplink.  A 3-leg Panbuster often outperforms 4-leg alternatives with stagger. As the point wears, lift and penetration can be helped by shortening the toplink – the wear logistics are enhanced.

Every soil has different characteristics and behaves differently with varying moisture, however, the wave action generated by panbusting levers open cracks maximising the cracks generated in the top zone and works on all soil types and conditions.

This is not arable subsoiling – there is little point in high shatter at depth but low shatter at the surface. This is grass subsoiling—high shatter near the surface reversing the compaction.

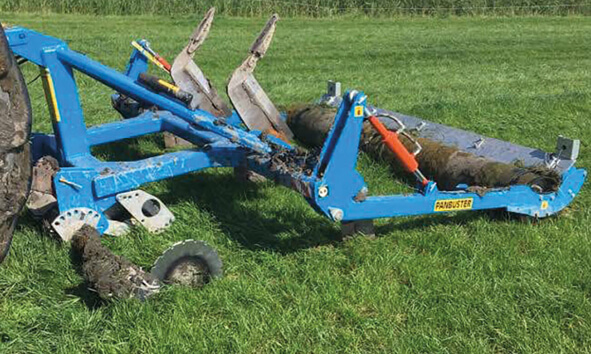

The Shearbolt Panbuster offers the same disk system as the Compact/Eco and the same format and space between disk, leg, and roller. Different leg numbers in the same frame as standard.

Key Features:

  • AUTORESET: The auto-reset system on the Erth Engineering Panbuster is the best auto reset on the market with the best protection.
  • HIGH LIFT: The higher the lift the higher the protection.
  • SIDE SWING: Reduced stress on the machine and brings up fewer stones.
  • SHEAR BOLT: Maximises protection.

STANDARD FEATURES:

  • Hydraulic roller/hydraulic depth control – all machines come as standard with hydraulic depth control and indicator. This allows depth to be changed to suit conditions. The machine can be lifted out at the end of the run using the roller. The roller then rolls the exits for a clean finish.
  • Sprung loaded disks.
  • Marine spec Nikrom ram rods – extremely reliable.
  • 400 brinnel materials used for high-stress areas.
  • Load-bearing areas are bushed and have large pins.
  • In-line legs maximise the lift. Toplink adjustment can be used to compensate for wear, extend the life and reduce running costs.

Optional Extras:

  • Soft Drive on Rear Roller
  • Steel Toothed Packer
  • Grass Skid System
  • Various Leg Options – inc. mole plough legs
  • Adaption for Umbilical Manure Systems
  • Long Legs
  • Arable Legs
  • Galvanised Frame



Erth Engineering 3/4/5 Leg Shearbolt Grass Panbuster

Specification for Erth Engineering 3/4/5 Leg Shearbolt Grass Panbuster

Grass 3 / 4 / 5 1200 / 800 / 600mm 3000mm 2950mm 1120kg 130hp
