Erth Engineering 5 Leg X Grass Panbuster
Erth Engineering 5 Leg X Grass Panbuster
Grow more grass, extend your growing season, improve grass quality and improve drainage with an Erth Engineering Panbuster.
In grass subsoiling the compaction starts at the surface and builds progressively deeper. This will cause poorer water transfer, more anaerobic activity and shallower rooting – less grass, less palatable grass, water logging of the surface and the land can become unusable by livestock and machinery.

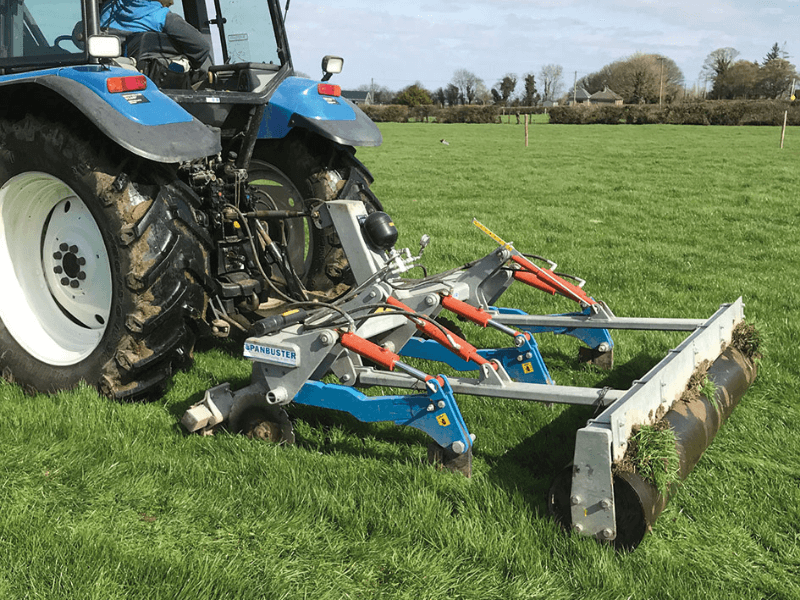

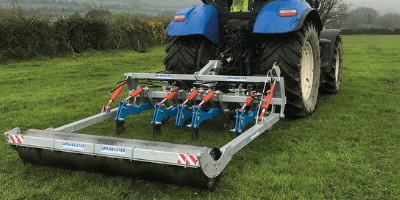

The new grass leg developed by Erth Engineering sets new standards of performance. This is not an arable leg slimmed down, or a smaller foot – it does not stagger the legs to overcome the failings in design – this is the standard that just keeps on giving. By placing the legs in a line the lift is maximised and can be controlled more by adjusting the toplink. A 3-leg Panbuster often out performs 4-leg alternatives with stagger. As the point wears, lift and penetration can be helped by shortening the toplink – the wear logistics are enhanced.
Every soil has different characteristics and behaves differently with varying moisture, however the wave action generated by panbusting levers open cracks maximising the cracks generated in the top zone and works on all soil types and conditions.
This is not arable subsoiling – there is little point in high shatter at depth but low shatter at the surface. This is grass subsoiling—high shatter near the surface reversing the compaction.
The X Panbuster range is the top of the range and uses an accumulator on each side of the reset rams. The main accumulator is a super reliable piston accumulator and the second accumulator eliminates the breather so we don’t have moisture/condensation forming in the rams.
All X machines are fitted with auto reset and with a constant pressure disk which provides a consistent depth of cut throughout the depth range.
Key Features:
- AUTORESET: The auto-reset system on the Erth Engineering Panbuster is the best auto reset on the market with the best protection.
- HIGH LIFT: The higher the lift the higher the protection.
- SIDE SWING: Reduced stress on the machine and brings up less stones.
- SHEAR BOLT: Maximises protection.
STANDARD FEATURES:

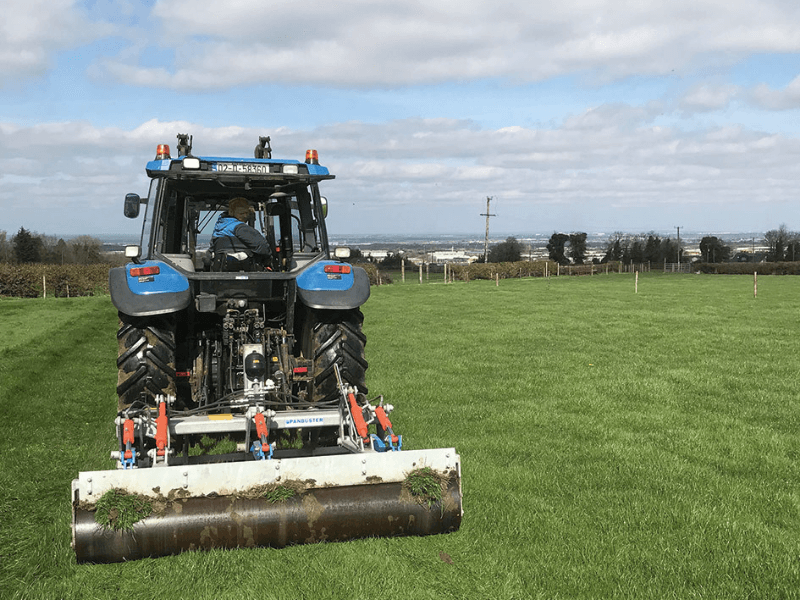

- Hydraulic roller/hydraulic depth control – all machines come as standard with hydraulic depth control and indicator. This allows depth to be changed to suit conditions. The machine can be lifted out at the end of the run using the roller. The roller then rolls the exits for a clean finish.
- Sprung loaded disks.
- Marine spec Nikrom ram rods – extremely reliable.
- 400 brinnel materials used for high stress areas.
- Load bearing areas are bushed and have large pins.
- In line legs maximise the lift. Toplink adjustment can be used to compensate for wear, extend life and reduce running costs.
Optional Extras:
- Soft Drive on Rear Roller
- Steel Toothed Packer
- Grass Skid System
- Various Leg Options – inc. mole plough legs
- Adaption for Umbilical Manure Systems
- Long Legs
- Arable Legs
- Galvanised Frame
Specification for Erth Engineering 5 Leg X Grass Panbuster
Leave a Review
Ask a Question
Videos
-
Description
Grow more grass, extend your growing season, improve grass quality and improve drainage with an Erth Engineering Panbuster.
In grass subsoiling the compaction starts at the surface and builds progressively deeper. This will cause poorer water transfer, more anaerobic activity and shallower rooting – less grass, less palatable grass, water logging of the surface and the land can become unusable by livestock and machinery.
The new grass leg developed by Erth Engineering sets new standards of performance. This is not an arable leg slimmed down, or a smaller foot – it does not stagger the legs to overcome the failings in design – this is the standard that just keeps on giving. By placing the legs in a line the lift is maximised and can be controlled more by adjusting the toplink. A 3-leg Panbuster often out performs 4-leg alternatives with stagger. As the point wears, lift and penetration can be helped by shortening the toplink – the wear logistics are enhanced.
Every soil has different characteristics and behaves differently with varying moisture, however the wave action generated by panbusting levers open cracks maximising the cracks generated in the top zone and works on all soil types and conditions.
This is not arable subsoiling – there is little point in high shatter at depth but low shatter at the surface. This is grass subsoiling—high shatter near the surface reversing the compaction.
The X Panbuster range is the top of the range and uses an accumulator on each side of the reset rams. The main accumulator is a super reliable piston accumulator and the second accumulator eliminates the breather so we don’t have moisture/condensation forming in the rams.
All X machines are fitted with auto reset and with a constant pressure disk which provides a consistent depth of cut throughout the depth range.
Key Features:
- AUTORESET: The auto-reset system on the Erth Engineering Panbuster is the best auto reset on the market with the best protection.
- HIGH LIFT: The higher the lift the higher the protection.
- SIDE SWING: Reduced stress on the machine and brings up less stones.
- SHEAR BOLT: Maximises protection.
STANDARD FEATURES:
- Hydraulic roller/hydraulic depth control – all machines come as standard with hydraulic depth control and indicator. This allows depth to be changed to suit conditions. The machine can be lifted out at the end of the run using the roller. The roller then rolls the exits for a clean finish.
- Sprung loaded disks.
- Marine spec Nikrom ram rods – extremely reliable.
- 400 brinnel materials used for high stress areas.
- Load bearing areas are bushed and have large pins.
- In line legs maximise the lift. Toplink adjustment can be used to compensate for wear, extend life and reduce running costs.
Optional Extras:
- Soft Drive on Rear Roller
- Steel Toothed Packer
- Grass Skid System
- Various Leg Options – inc. mole plough legs
- Adaption for Umbilical Manure Systems
- Long Legs
- Arable Legs
- Galvanised Frame
-
Specifications
Grass 5 600mm 3000mm 3000mm 1500kg 130hp -
