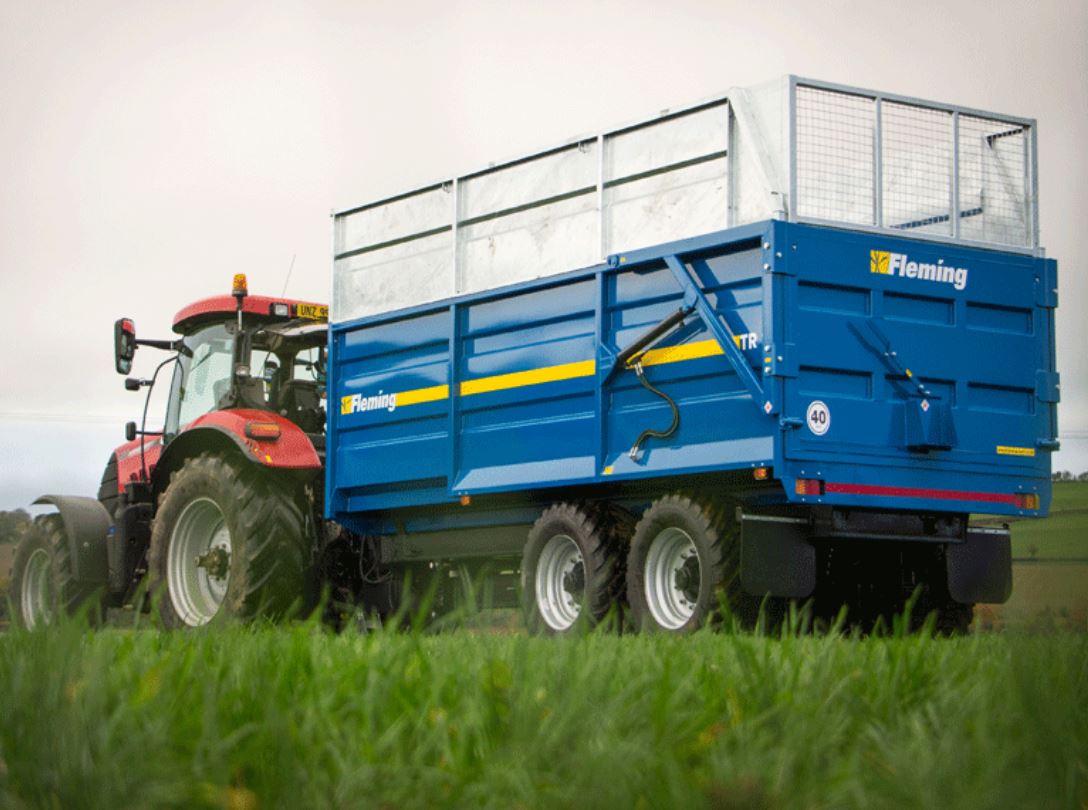

Fleming Agri 14 Tonne TR14 Monocoque Tipping Trailer

Large trailer size : 14T Large trailer length : 18ft 9 Large trailer width : 7ft 11 Large trailer floor thickness : 5mm Large trailer side height : 1300mm Large trailer unladen weight : 4320kg Large trailer wheels : 550/45/22.5 Large trailer cubic capacity m3 : 16.48m3

Fleming Agri 14 Tonne TR14 Monocoque Tipping Trailer

The Fleming heavy Duty 14,000kg Agricultural trailer is designed to satisfy the requirements of modern trailer operations.

Key features:

  • All chassis and body parts are manufactured from high tensile steel plate and hollow section to help reduce weight and increase payload without compromising structural strength.
  • Unique design sprung drawbar provides excellent ride characteristics working in combination with the multi leaf spring bogie suspension to reduce stress on the towing vehicle and operator.
  • Tapered body and twin heavy duty tipping rams ensure a fast and clean unloading time with all hydraulic pipes safely concealed within the chassis
  • 10 stud heavy duty commercial axle, brakes and lights. 40mm EN8 towing eye, skid and skid carrier
  • Hydraulic hose carrier and access ladder 550/45/22.5 flotation tyres

Optional extras:

  • Hydraulic back door complete with locking safety valve to avoid accidental spillage
  • Galvanised silage extension kit complete with swinging back door and automatic trip
  • Front viewing window
  • Grain chute
  • Optional hyd brakes with load sensing valuve
  • Manual or roll over tarpaulin cover
Fleming Agri 14 Tonne TR14  Monocoque Tipping Trailer

Specification for Fleming Agri 14 Tonne TR14 Monocoque Tipping Trailer

14T 18ft 9 7ft 11 5mm 1300mm 4320kg 550/45/22.5 16.48m3
This product has no reviews.

Leave a Review

By clicking the Submit button you agree to our T&Cs and Privacy policy

This product has no questions.

Ask a Question

By clicking the Submit button you agree to our T&Cs and Privacy policy

  • Description

    The Fleming heavy Duty 14,000kg Agricultural trailer is designed to satisfy the requirements of modern trailer operations.

    Key features:

    • All chassis and body parts are manufactured from high tensile steel plate and hollow section to help reduce weight and increase payload without compromising structural strength.
    • Unique design sprung drawbar provides excellent ride characteristics working in combination with the multi leaf spring bogie suspension to reduce stress on the towing vehicle and operator.
    • Tapered body and twin heavy duty tipping rams ensure a fast and clean unloading time with all hydraulic pipes safely concealed within the chassis
    • 10 stud heavy duty commercial axle, brakes and lights. 40mm EN8 towing eye, skid and skid carrier
    • Hydraulic hose carrier and access ladder 550/45/22.5 flotation tyres

    Optional extras:

    • Hydraulic back door complete with locking safety valve to avoid accidental spillage
    • Galvanised silage extension kit complete with swinging back door and automatic trip
    • Front viewing window
    • Grain chute
    • Optional hyd brakes with load sensing valuve
    • Manual or roll over tarpaulin cover
  • Specifications

    14T 18ft 9 7ft 11 5mm 1300mm 4320kg 550/45/22.5 16.48m3
