Fleming Agri

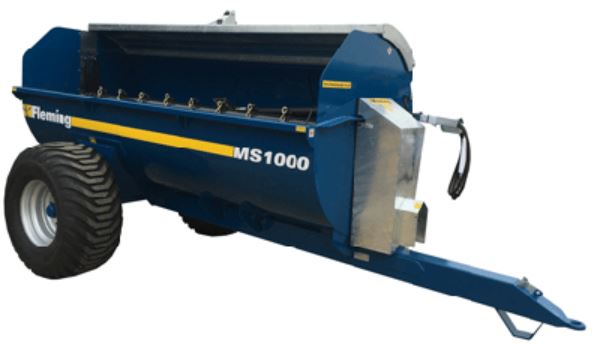

Fleming Agri MS 1000 Muck Spreader

Spreader cu. yard capacity : 9.5 Spreader min. h.p : 100 Spreader drum thickness : 4mm Spreader overall length : 560mm Spreader width : 2500mm Spreader loading height : 1670mm spreader unladen weight : 1800kg Spreader pto speed : 540rpm Spreader chains/flails : 36 no. x 13mm Spreader dia of drum : 1500mm Spreader length of drum : 3700mm Spreader std wheels : 550x60x22.5 Spreader discharge : Side spreader unladen weight : 1800kg

Fleming Agri MS 1000 Muck Spreader

Fleming Agri-Products currently manufacture four muck spreaders which are designed and manufactured to a high standard to suit all horsepowers. The MS1000  has a 9.5 Cubic yard capacity.

Key featues:

  • 100 Horse Power.
  • Reinforced 4mm body welded inside and out.
  • Reinforced 6mm end plates
  • Reinforced drawbar for absolute rigidity when in operation.
  • 8 cu. m. capacity (9.5 cubic yd.)
  • 8 ton - 8 stud - 80mm square bolt on axle to reinforced body support for safe working operation with
  • 550 x 60 x 22.5 as standard wheels
  • Secure simple galvanised clip on galvanised chain guard for easy access for maintenance
  • Heavy duty balanced rotor with 12mm discharge chains and spreader plates.
  • Heavy duty 4 bolt flange bearings mounted away from the body for low maintenance.
  • Large wash-out bung
  • PTO speed - 540RPM
  • Pick up eye, shoe rest and PTO rest as standard.
  • Double starter bars for quick start up.
  • Heavy duty 1” (25mm) Duplex drive chain
  • Heavy duty galvanised hyd opening reinforced lid
  • Reinforced loading edge
Fleming Agri MS 1000 Muck Spreader

Specification for Fleming Agri MS 1000 Muck Spreader

9.5 100 4mm 560mm 2500mm 1670mm 1800kg 540rpm 36 no. x 13mm 1500mm 3700mm 550x60x22.5 Side 1800kg
