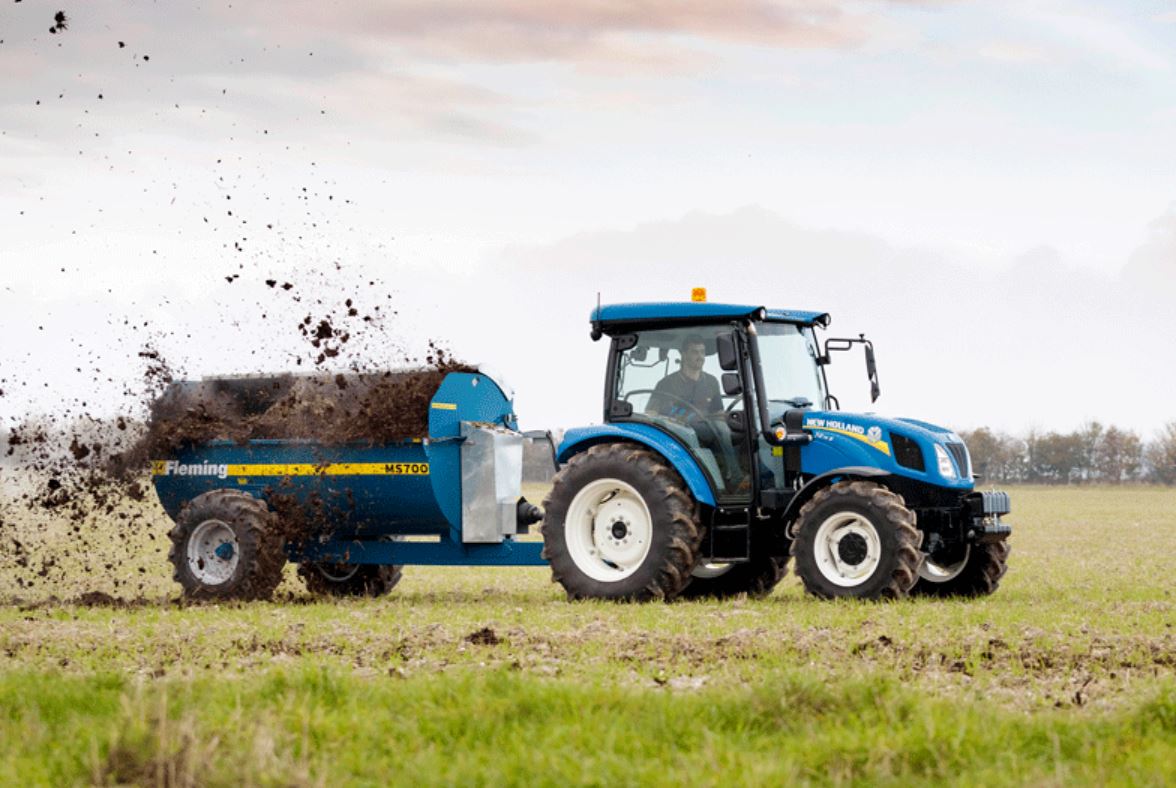

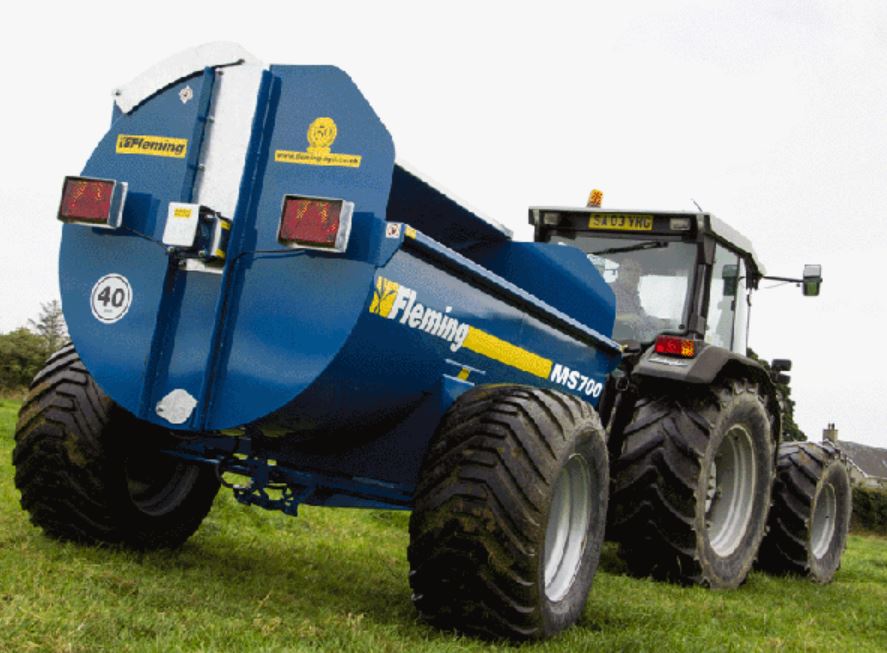

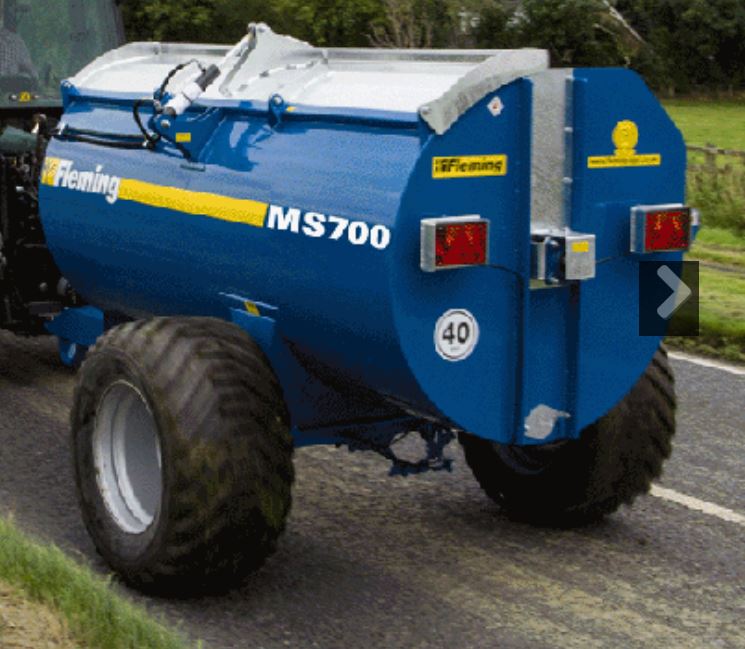

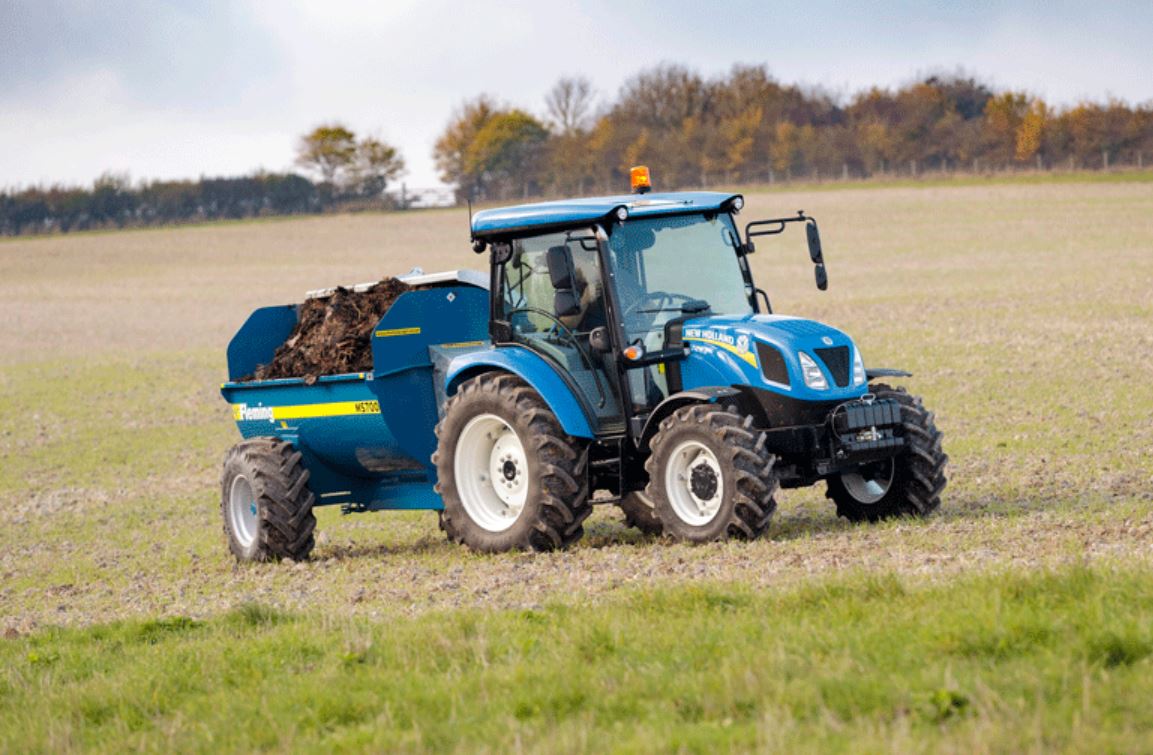

Fleming Agri MS 700 Muck Spreader

Spreader cu. yard capacity : 6 Spreader min. h.p : 60 Spreader drum thickness : 4mm Spreader overall length : 4700mm Spreader width : 2100mm Spreader loading height : 1480mm spreader unladen weight : 1500kg Spreader pto speed : 540rpm Spreader chains/flails : 28 no. x 13mm Spreader dia of drum : 1400mm Spreader length of drum : 3000mm Spreader std wheels : 385x65x22.5 Spreader discharge : Side spreader unladen weight : 1500kg

Fleming Agri MS 700 Muck Spreader

Fleming Agri-Products currently manufacture four muck spreaders which are designed and manufactured to a high standard to suit all horsepowers. The MS 700  has a 6 Cubic yard capacity.

Key featues:

  • 60 - 100HP requirement.
  • Reinforced 4mm body welded inside and out.
  • Heavy duty 4 bolt flange bearings mounted away from the body for low maintenance.
  • Reinforced drawbar for absolute rigidity when in operation.
  • Secure simple clip on galvanised chain guard for easy access
  • Double starter bars for quick start up.
  • 6 ton - 6 stud - 70mm square bolt on axle for safe working operation with 385 x 65R x 22.5 as standard wheels
  • Heavy duty balanced rotor with 12mm discharge chains and spreader plates.
  • Large wash-out bung
  • PTO speed - 540RPM
  • Pick up eye and shoe and PTO rest as standard.
  • Heavy duty 11/4” (30mm) simplex drive chain
  • Heavy Duty galvanised hydraulic opening reinforced lid
  • Reinforced loading edge

Optional extras:

  • Larger wheel option 550 x 45 x 22.5
Fleming Agri MS 700 Muck Spreader

Specification for Fleming Agri MS 700 Muck Spreader

6 60 4mm 4700mm 2100mm 1480mm 1500kg 540rpm 28 no. x 13mm 1400mm 3000mm 385x65x22.5 Side 1500kg
This product has no reviews.

Leave a Review

By clicking the Submit button you agree to our T&Cs and Privacy policy

This product has no questions.

Ask a Question

By clicking the Submit button you agree to our T&Cs and Privacy policy

Videos

  1. Play
  • Description

    Fleming Agri-Products currently manufacture four muck spreaders which are designed and manufactured to a high standard to suit all horsepowers. The MS 700  has a 6 Cubic yard capacity.

    Key featues:

    • 60 - 100HP requirement.
    • Reinforced 4mm body welded inside and out.
    • Heavy duty 4 bolt flange bearings mounted away from the body for low maintenance.
    • Reinforced drawbar for absolute rigidity when in operation.
    • Secure simple clip on galvanised chain guard for easy access
    • Double starter bars for quick start up.
    • 6 ton - 6 stud - 70mm square bolt on axle for safe working operation with 385 x 65R x 22.5 as standard wheels
    • Heavy duty balanced rotor with 12mm discharge chains and spreader plates.
    • Large wash-out bung
    • PTO speed - 540RPM
    • Pick up eye and shoe and PTO rest as standard.
    • Heavy duty 11/4” (30mm) simplex drive chain
    • Heavy Duty galvanised hydraulic opening reinforced lid
    • Reinforced loading edge

    Optional extras:

    • Larger wheel option 550 x 45 x 22.5
