Major 490EW Eagle Wing Grass Topper

Eagle wing topper overall width : 16ft 7 Eagle wing topper working width : 16ft Eagle wing topper transport width : 7ft 6 Eagle wing topper power (hp) : 90-180 Eagle wing topper pto rpm540 : 1,000 Eagle wing topper cutting height : 24-410mm Eagle wing topper rotors : 3 Eagle wing topper blades : 9 Eagle wing topper weight : 2750kg Eagle wing topper blade speed : 89m/s Eaglew wing topper blade overlap : 155mm Eagle wing topper wing float : 90 degree up 20 degree down Eagle wing topper input gearbox : 120HP continuos Eagle wing topper input pto shalf : V80 wide angle Eagle wing topper rotor pto shaft : T60 Slip Clutch

Major 490EW Eagle Wing Grass Topper

The MAJOR 490EW grass topper is the machine of choice for grassland and setaside areas as well as military bases and related training areas.

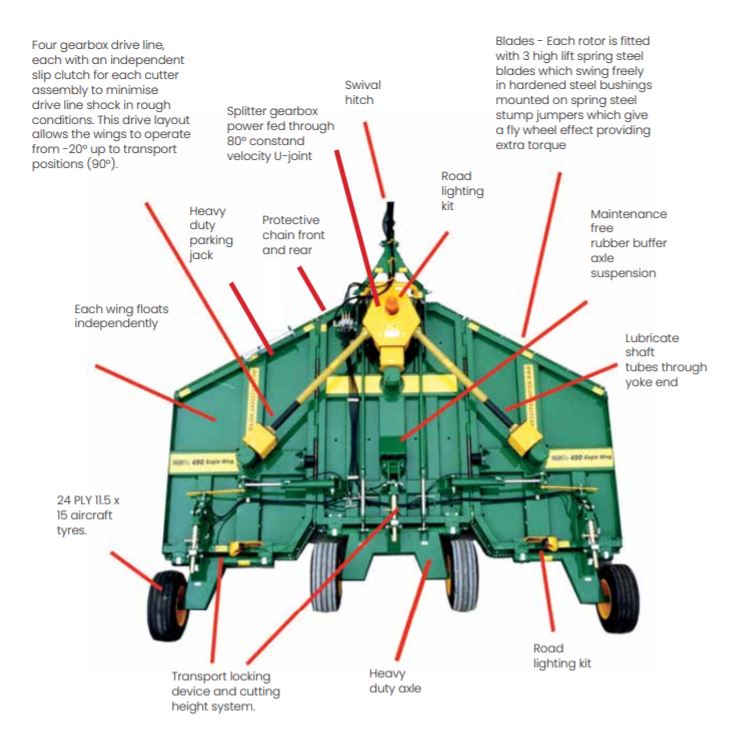

Key Features:

  • Practical, simple engineering are the key elements in the design of this robust and flexible mower.
  • The blade lift and aerofoil combination disperses cut grass evenly.
  • Three rotors with three blades per rotor
  • Four gear box drive, with independent slip clutch and two year warranty
  • Wide angle shaft (80°) constant velocity
  • U-joint for continuous cutting
  • Road lighting kit with flashing beacon
  • 24 ply virtually puncture proof aircraft tyres
  • Floating front swivel hitch and frame allows the machine to follow the grounds contours
  • 153 mm (6”) blade overlap and high blade tip speeds ensure clean cutting
  • Suitable for use by airports for inner runway maintenance and at racecourses and stud farms for pasture improvements.
Major 490EW Eagle Wing Grass Topper

Specification for Major 490EW Eagle Wing Grass Topper

16ft 7 16ft 7ft 6 90-180 1,000 24-410mm 3 9 2750kg 89m/s 155mm 90 degree up 20 degree down 120HP continuos V80 wide angle T60 Slip Clutch
This product has no reviews.

Leave a Review

By clicking the Submit button you agree to our T&Cs and Privacy policy

This product has no questions.

Ask a Question

By clicking the Submit button you agree to our T&Cs and Privacy policy

Videos

  1. Play
  • Description

    The MAJOR 490EW grass topper is the machine of choice for grassland and setaside areas as well as military bases and related training areas.

    Key Features:

    • Practical, simple engineering are the key elements in the design of this robust and flexible mower.
    • The blade lift and aerofoil combination disperses cut grass evenly.
    • Three rotors with three blades per rotor
    • Four gear box drive, with independent slip clutch and two year warranty
    • Wide angle shaft (80°) constant velocity
    • U-joint for continuous cutting
    • Road lighting kit with flashing beacon
    • 24 ply virtually puncture proof aircraft tyres
    • Floating front swivel hitch and frame allows the machine to follow the grounds contours
    • 153 mm (6”) blade overlap and high blade tip speeds ensure clean cutting
    • Suitable for use by airports for inner runway maintenance and at racecourses and stud farms for pasture improvements.
  • Specifications

    16ft 7 16ft 7ft 6 90-180 1,000 24-410mm 3 9 2750kg 89m/s 155mm 90 degree up 20 degree down 120HP continuos V80 wide angle T60 Slip Clutch
