Major MJ38-540 Flex Wing Grass Topper

Flex wing grass topper overall width : 18ft 4 Flex wing grass topper working width : 18ft Flex wing grass topper transport width : 7ft 6 Flex wing grass topper power (hp) : 80-120 Flex wing grass topper pto rpm : 1,000 Flex wing grass topper cutting height : 50-250mm Flex wing grass topper rotors : 6 Flex wing grass topper blades : 12 Flex wing grass topper weight : 1395kg Flex wing grass blade speed : 74m/s

Locate a Dealer

Major MJ38-540 Flex Wing Grass Topper

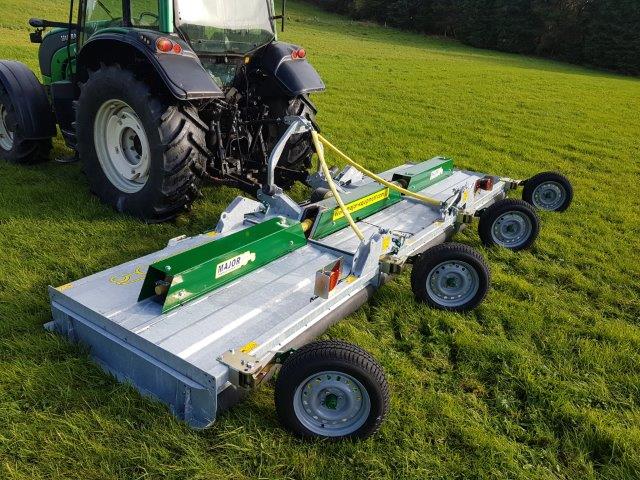

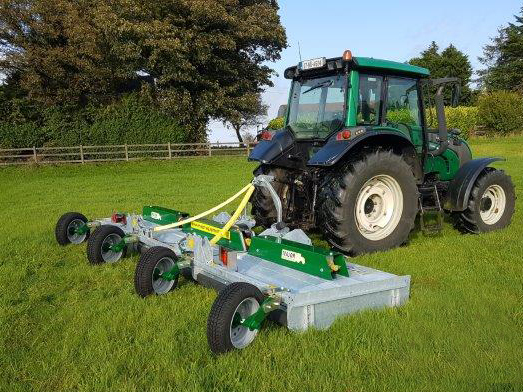

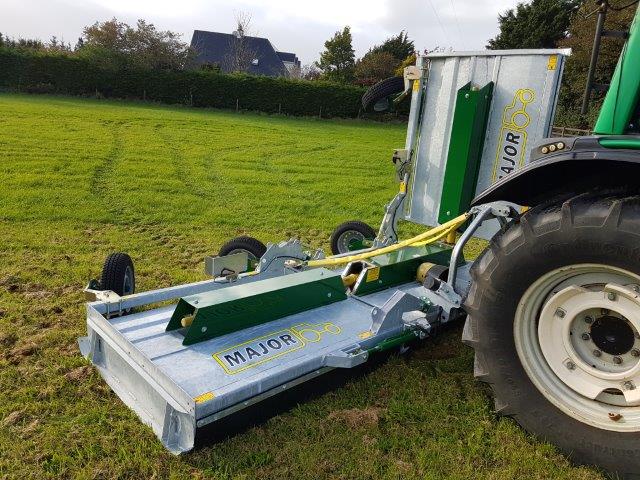

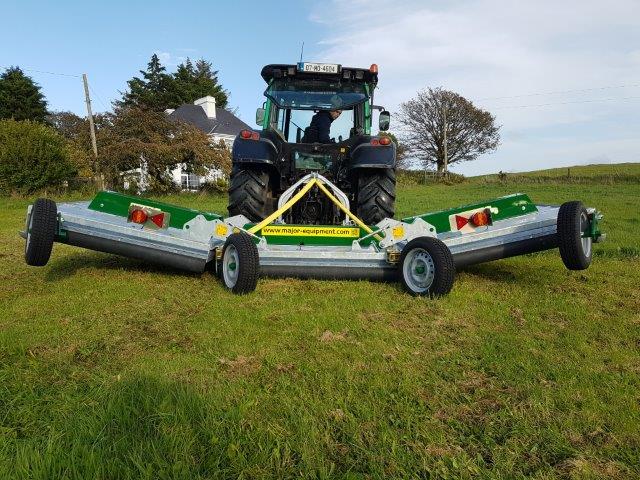

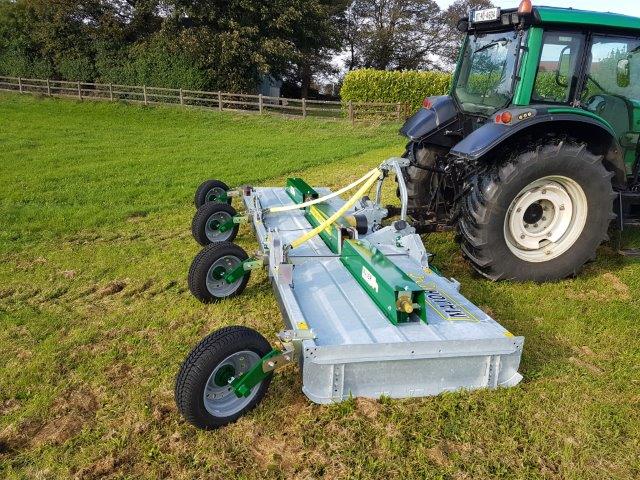

The MAJOR Flex Wing Topper is a three point linkage mounted machine which folds up to 2.3m (7’ 6”) transport width. Like all MAJOR machines, the Flex Wing Topper is of robust construction. CE conformity is achieved through full PTO guarding and heavy rubber skirting to prevent debris from escaping.

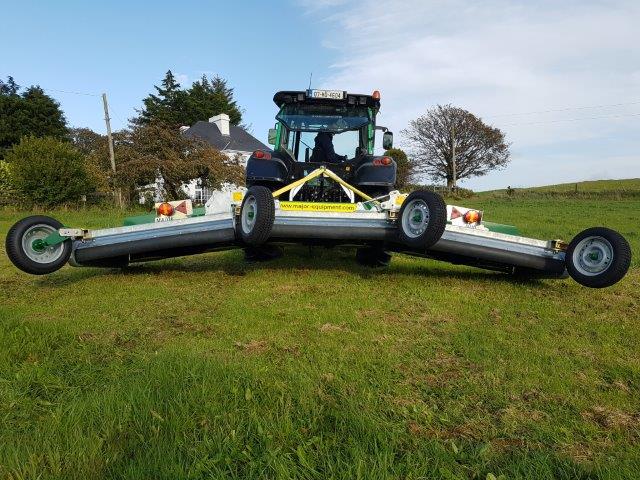

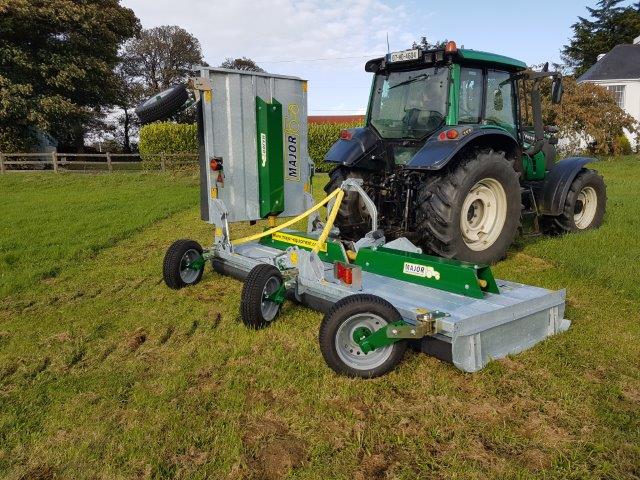

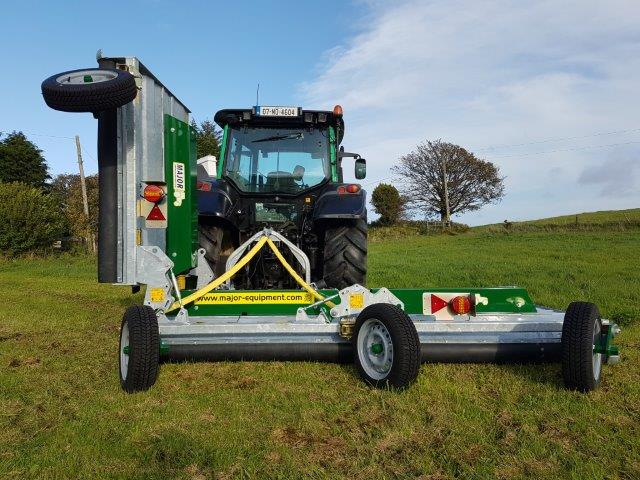

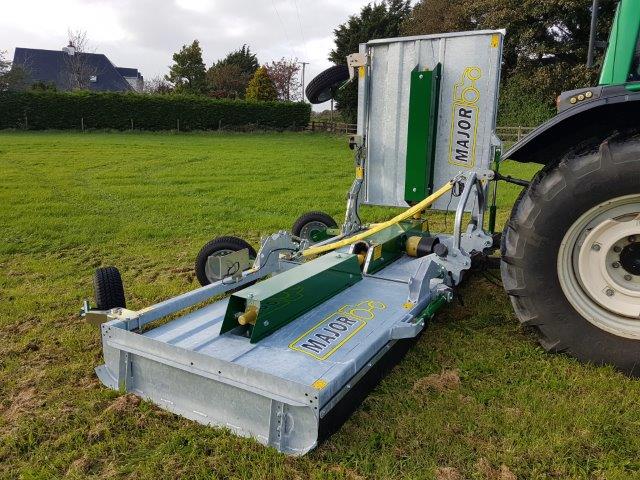

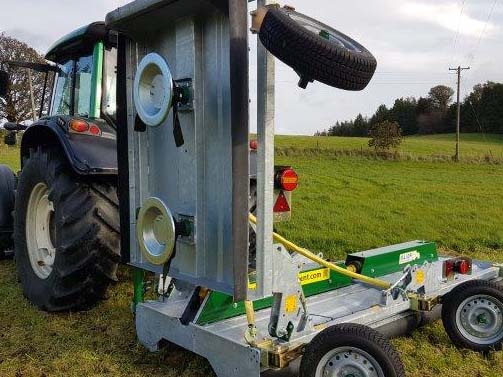

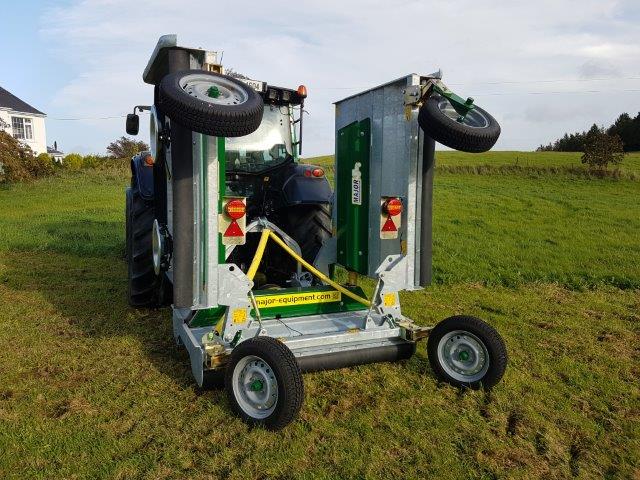

The wing cutting decks are raised by hydraulic control to transport position. The wings are capable of flexing from -15 to +25 degrees allowing the cutting unit to follow the ground contours.

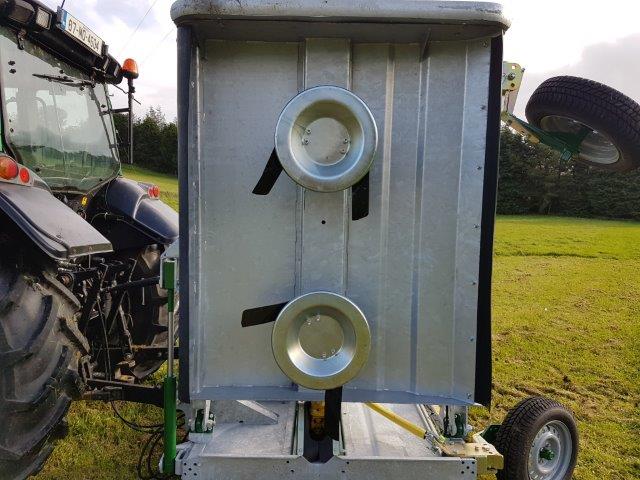

Contra-rotating swinging blades are retained in hardened steel bushings and clamped by sprung steel blade backs.  Under-sole discs are fitted to prevent scalping and ensure a perfect finish every time.

Key Featuers:

  • Galvanised finish
  • Robust pivot points
  • Rubber shock absorbers
  • Slip clutch PTO protection
  • Hydraulic wing lift
  • ProCut swinging blades
  • 88mm (3 1/2”) blade overlap to eliminate striping
Major MJ38-540 Flex Wing Grass Topper

Specification for Major MJ38-540 Flex Wing Grass Topper

18ft 4 18ft 7ft 6 80-120 1,000 50-250mm 6 12 1395kg 74m/s
