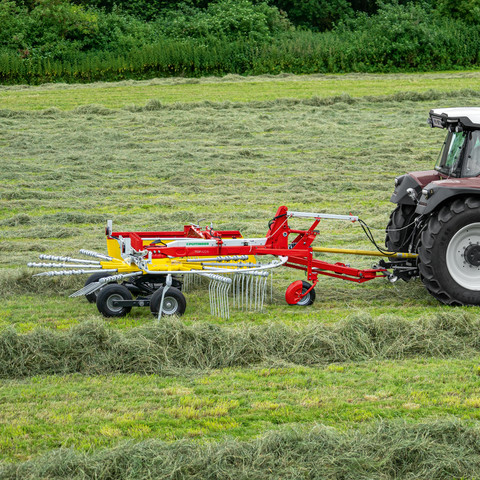

PÖTTINGER TOP 422 A Single Rotor Rake

Rake type : Single Rotor Rake Rake working width : 4.2m Rake power requirement (hp) : 30hp Rake tine arms per rotor : 12 Rake rotor diameter : 3.3m Rake swath placement : Left Rake mounting : Trailed

PÖTTINGER TOP 422 A Single Rotor Rake

Trailed version - TOP 422 A and TOP 462 A offers high performance with small tractors.

For large working widths with small tractors, PÖTTINGER offers you two single-rotor rakes as trailed versions.

Key features:

  • Thanks to the trailed design, no load is exerted on the tractor hitch. Easy attachment and detachment is guaranteed.
  • Thanks to the parallelogram drawbar, both trailed versions can be hitched to the tractor's linkage bar or ring hitch.
  • The machine is lifted hydraulically into the transport position conveniently controlled from the tractor seat. Hydraulic cylinders on the chassis and drawbar provide 50 cm of ground clearance.
  • The two models offer you a working width of 4.20 m and 4.60 m.
  • The tandem axles are fitted with 18.5 x 8.5-8 flotation tyres as standard. This means that your machine runs smoothly both during operation and on the road.
  • 2.13m transport width
  • 1.6m - 1.65m Swath width.
  • 12 pieces removable tine carrier arms per rotor
  • TOPTECH Plus rotor unit
  • 820kg weight
  • Rigid rotor wheels
  • turnbuckle height adjustment system
  • Tandem axle
  • 16x6.5-8 rotor tyres
  • Swath curtain
  • Wide-angle P.T.O. shaft on one end

Optional extras:

  • Hydraulic swath curtain lift system
  • Tandem axles
  • MULTITAST jockey wheel
PÖTTINGER TOP 422 A Single Rotor Rake

Specification for PÖTTINGER TOP 422 A Single Rotor Rake

Single Rotor Rake 4.2m 30hp 12 3.3m Left Trailed
