Quadcrate® Transport Cage
Quadcrate® Transport Cage

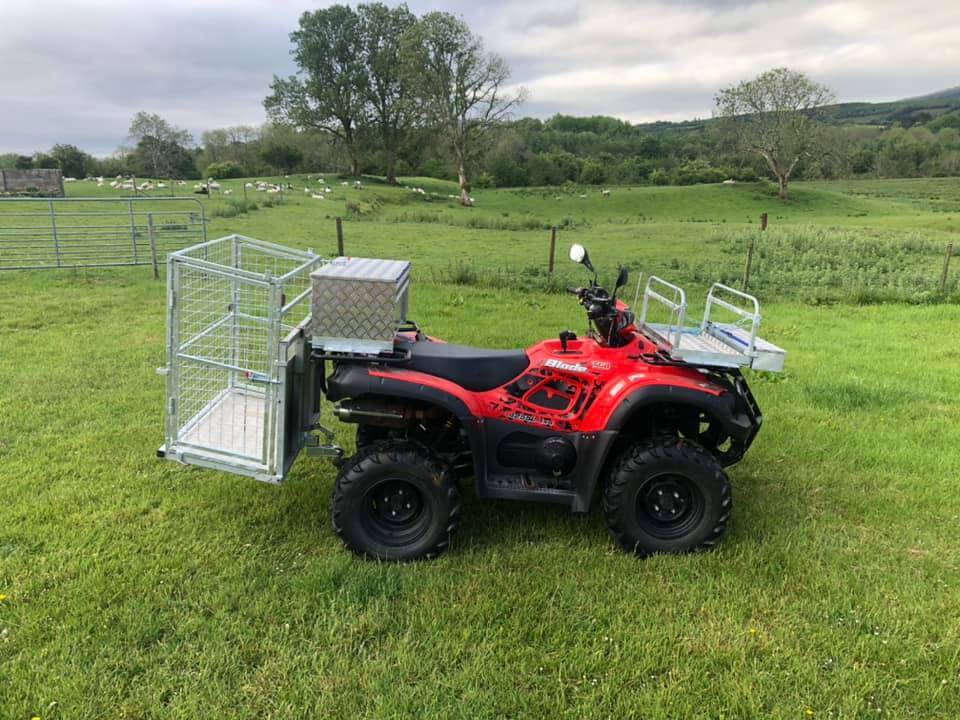

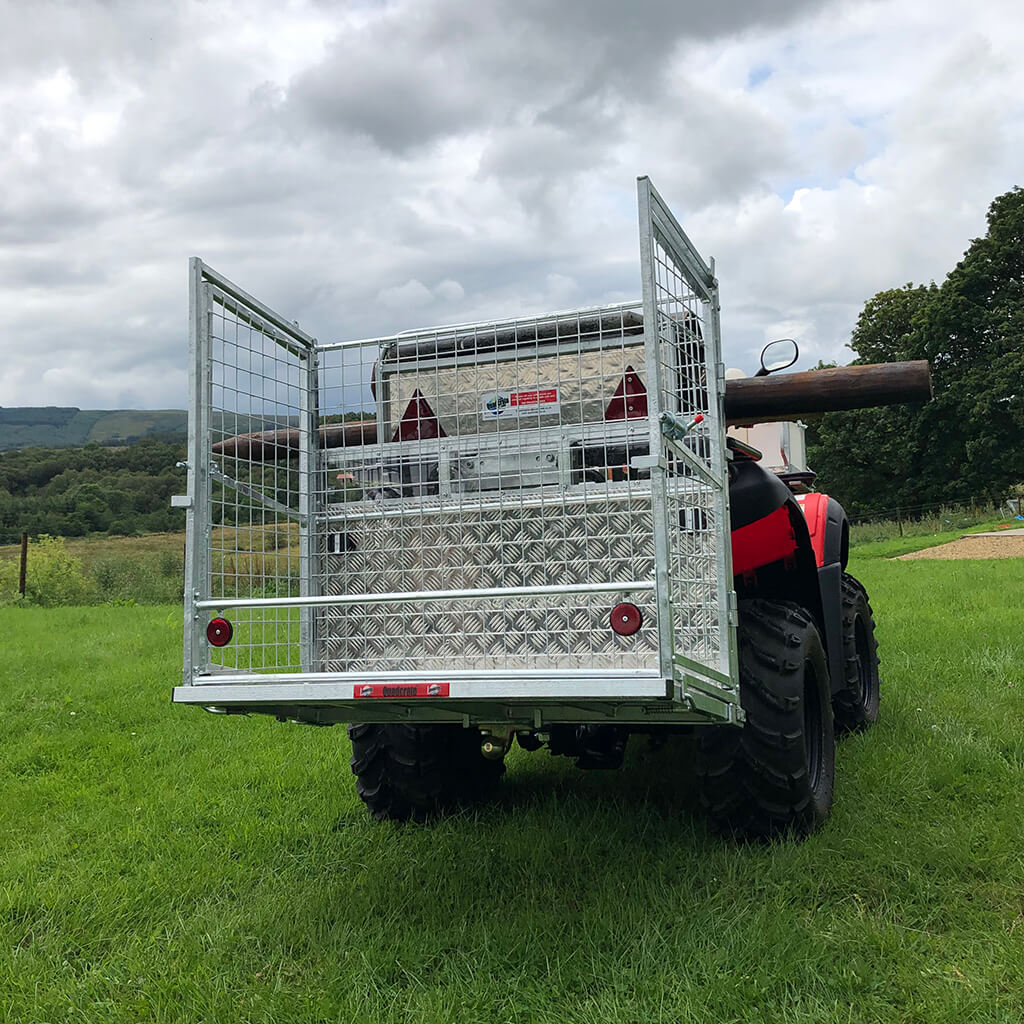

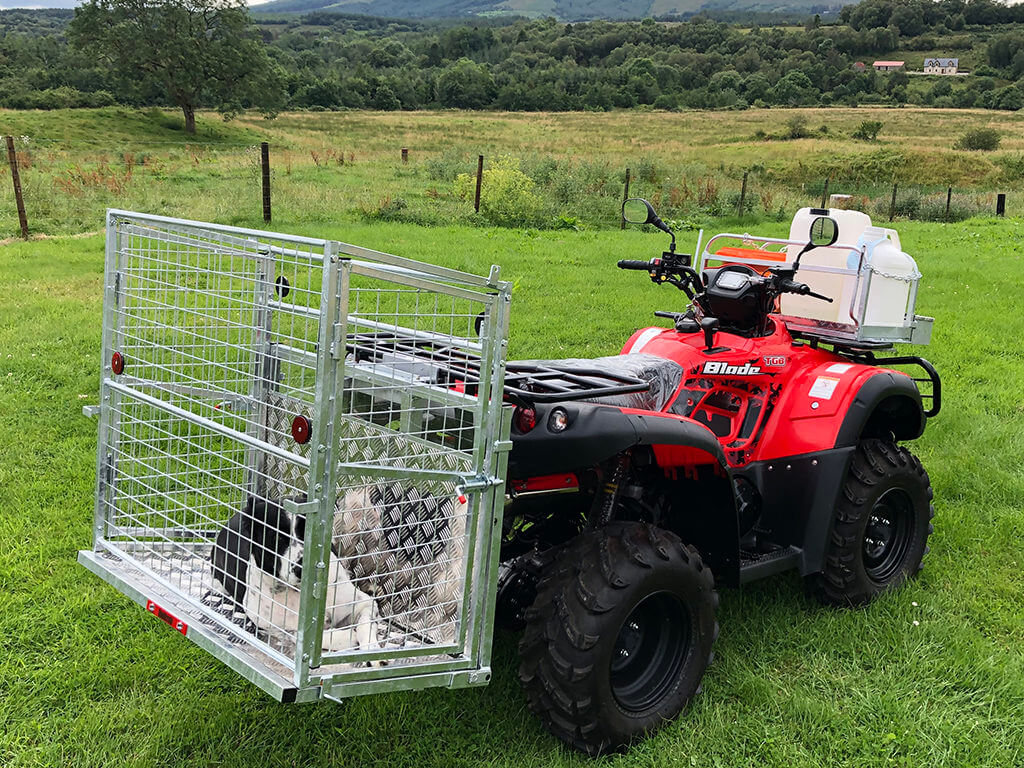

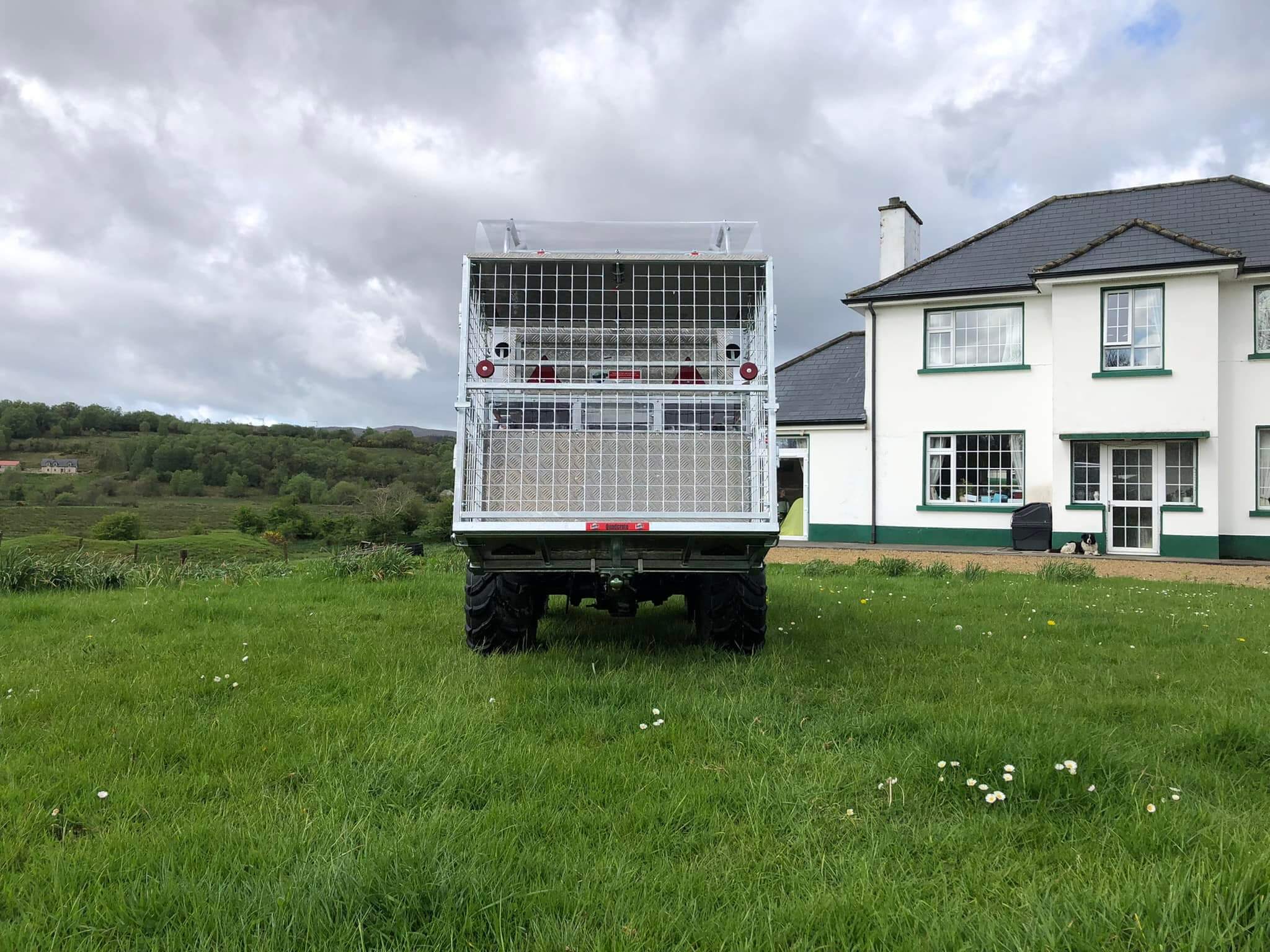

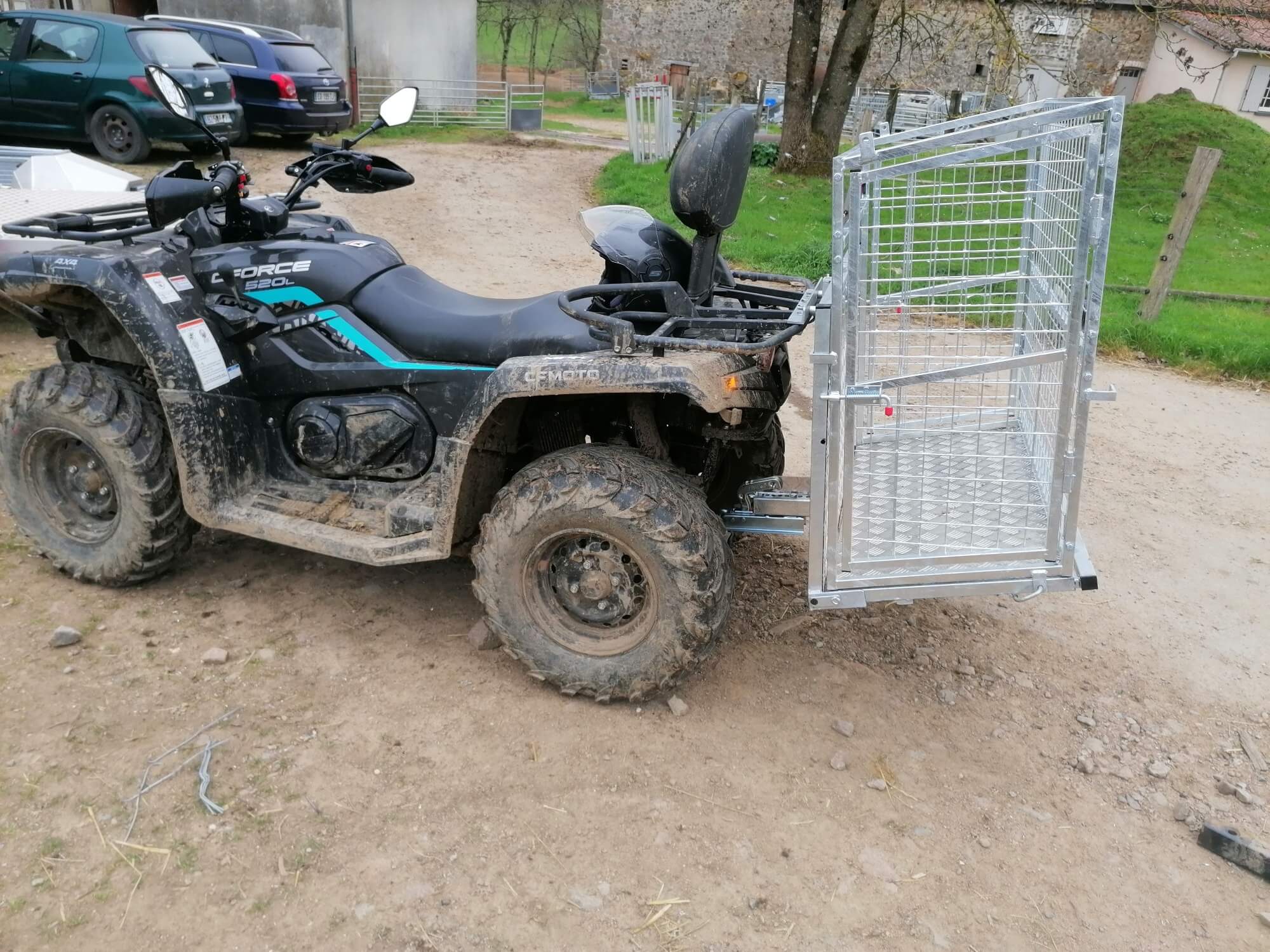

The Transport Cage fits on top of the Quadcrate® and is a comfortable way to transport a ewe, calf, goat, pig or dogs from A to B and has a gate on both sides so the animals can go in one side and out the other.
Key features:
- It can also be used to carry sticks, turf, grass off your lawn and extra fence posts as the gates can be removed.
- The Transport Cage can also be easily attached and detached by removing 4 c-clips, so loads can be taken off easily.
- A lid for the Transport Cage is available on request so that when transporting lively animals i.e. dogs they cannot escape.
- The Transport Cage can also be attached to the front by hooking it onto the Front Postholder which can then be used to carry extra loads i.e. small square bales and also provide extra weight to the front when climbing very steep terrain.
- It’s important to load the bike up properly keeping it balanced at all times, as this will ensure safer handling for you and your ATV.
- With having the Quadcrate® and Animal Cage on the back of your ATV means that you have a way to deal with certain situations like, i.e. bringing home a sick or deceased sheep/calf this means you don’t have to waste time fetching a trailer.
- Our Quadcrate® attachments are time-saving devices.
Specification for Quadcrate® Transport Cage
Leave a Review
The extension bar is situated on the bottom platform and can slide in and out just remove pins on both sides and pull it out to your desired position and put the pins back in so it stays in place.
The extension bar is to create extra platform to work on for bigger loads and to leave the load more steady as not all loads need to be tied or strapped on as the QUADCRATE® is designed so that whatever is put on it is inclined to stay on, but caution must be taken when driving. The extension bar is used for loads such as square bales, creep feeders, sheep troughs, sheet of metal, sheet of plyboard and useful when carrying loose silage or hay or muck when put in the first position.
The Wire unroller is fitted to the QUADCRATE® carrier (s) by using the holes at the side of the bottom platform which are also used for the positioning of the extension bar, as the wire unroller has 4 ears with holes in them so the pins can hold it in position.
The Lamb box is fitted to the back bale rack as there is holes in the bottom of the box which allow M 12 bolts through which are screwed onto a threaded plate underneath fastening the the lamb box to the bar on the bale rack.
The QUADCRATE® carrier (s) can hold up to 60kgs + Sheepcage 80kg in total depending on the size of the bike it is fitted to but I wouldn’t recommend putting this weight onto any less than 500cc bike and with this weight would have to put weight on the front of the bike for proper handling purposes, this can be easily done if a post holder is fitted to the front of the bike as it can hold most things. The bike will tip up on the front if proper care is not taken to balance the weight, always think when loading the QUADCRATE® carrier (s) so that balance can be achieved.
A trailer NOT exceeding 300kgs can be pulled but you MUST remember to put the available bolt in position which fastens the bottom platform to a tongue welded to the platform next the bike so that not all pressure is on the bar that the hitch is connected to, avoiding this the weight of the trailer will be too great for the bottom platform resulting in it pulling out of the hinges and the trailer disconnecting so care must be taken at all times. “Think before you do”.
The Wire unroller can unroll 50 metres of sheepwire in less than 15 seconds, 100 metres in 30 seconds and can unroll 3 coils of barbed wire at the same time in less than a minute, this is a great time saver, great for fencing contractors who work alone.
The Lamb box is used for sheltering lambs when found outside, cold in lambing season, very useful for Farmers who lamb all there ewes outside. There are 2 sections in the box one is a bedded area for lambs and the other area is for veterinary materials like disposable gloves, penicillin, syringes. marking spray, feet cutters, roll of baling twine, flask of hot water to mix bestance when needed and bottle to feed it etc. The Lamb box is dual purpose so when not lambing the 2 sections can become one as you can slide out the separating sheet of chequer plate, so a coat, cap, jumper, shoes, wellies, tools and rope etc can be kept dry for later use.
This will happen if too much weight is put on the QUADCRATE® carrier (s) but the size of your bike will also determine how much weight you can put on the back before you need to balance your bike by adding extra load to the front . Available Post holders are great to use as a holding device for extra weight, at least one post holder is a great investment when buying a QUADCRATEq® carrier (s) to hold loads on the front with ease as the chequer plate is used for extra grip so that loads won’t fall off.
Ask a Question
-
Description
The Transport Cage fits on top of the Quadcrate® and is a comfortable way to transport a ewe, calf, goat, pig or dogs from A to B and has a gate on both sides so the animals can go in one side and out the other.
Key features:
- It can also be used to carry sticks, turf, grass off your lawn and extra fence posts as the gates can be removed.
- The Transport Cage can also be easily attached and detached by removing 4 c-clips, so loads can be taken off easily.
- A lid for the Transport Cage is available on request so that when transporting lively animals i.e. dogs they cannot escape.
- The Transport Cage can also be attached to the front by hooking it onto the Front Postholder which can then be used to carry extra loads i.e. small square bales and also provide extra weight to the front when climbing very steep terrain.
- It’s important to load the bike up properly keeping it balanced at all times, as this will ensure safer handling for you and your ATV.
- With having the Quadcrate® and Animal Cage on the back of your ATV means that you have a way to deal with certain situations like, i.e. bringing home a sick or deceased sheep/calf this means you don’t have to waste time fetching a trailer.
- Our Quadcrate® attachments are time-saving devices.
-
Specifications
Transport small animals & small items inc. turf sticks etc Easily attached & detached Optional lid available -
Reviews
This product has no reviews.Leave a Review
-
Q&A's
Question: How is the QUADCRATE® fitted to the quad? Answer:The QUADCRATE® fits onto the back of the ATV/quad via the tow ball and a suspension bracket which is fastened onto the back bale rack, the weight of the QUADCRATE®and load put onto it all push downwards onto the tow ball of the ATV and the Suspension bracket holds the QUADCRATE® upright and in place.
Question: How does the extension bar work? Answer:The extension bar is situated on the bottom platform and can slide in and out just remove pins on both sides and pull it out to your desired position and put the pins back in so it stays in place.
Question: What is the extension bar for? Answer:The extension bar is to create extra platform to work on for bigger loads and to leave the load more steady as not all loads need to be tied or strapped on as the QUADCRATE® is designed so that whatever is put on it is inclined to stay on, but caution must be taken when driving. The extension bar is used for loads such as square bales, creep feeders, sheep troughs, sheet of metal, sheet of plyboard and useful when carrying loose silage or hay or muck when put in the first position.
Question: How is the Wire unroller fitted to the QUADCRATE®? Answer:The Wire unroller is fitted to the QUADCRATE® carrier (s) by using the holes at the side of the bottom platform which are also used for the positioning of the extension bar, as the wire unroller has 4 ears with holes in them so the pins can hold it in position.
Question: How is the Dual Purpose Lamb Box fit to the quad? Answer:The Lamb box is fitted to the back bale rack as there is holes in the bottom of the box which allow M 12 bolts through which are screwed onto a threaded plate underneath fastening the the lamb box to the bar on the bale rack.
Question: How much weight can the QUADCRATE® carrier (s) hold? Answer:The QUADCRATE® carrier (s) can hold up to 60kgs + Sheepcage 80kg in total depending on the size of the bike it is fitted to but I wouldn’t recommend putting this weight onto any less than 500cc bike and with this weight would have to put weight on the front of the bike for proper handling purposes, this can be easily done if a post holder is fitted to the front of the bike as it can hold most things. The bike will tip up on the front if proper care is not taken to balance the weight, always think when loading the QUADCRATE® carrier (s) so that balance can be achieved.
Question: What size of trailer can be pulled with the QUADCRATE® carrier (s)? Answer:A trailer NOT exceeding 300kgs can be pulled but you MUST remember to put the available bolt in position which fastens the bottom platform to a tongue welded to the platform next the bike so that not all pressure is on the bar that the hitch is connected to, avoiding this the weight of the trailer will be too great for the bottom platform resulting in it pulling out of the hinges and the trailer disconnecting so care must be taken at all times. “Think before you do”.
Question: How fast can the Wire unroller work? Answer:The Wire unroller can unroll 50 metres of sheepwire in less than 15 seconds, 100 metres in 30 seconds and can unroll 3 coils of barbed wire at the same time in less than a minute, this is a great time saver, great for fencing contractors who work alone.
Question: What is the Lamb box for? Answer:The Lamb box is used for sheltering lambs when found outside, cold in lambing season, very useful for Farmers who lamb all there ewes outside. There are 2 sections in the box one is a bedded area for lambs and the other area is for veterinary materials like disposable gloves, penicillin, syringes. marking spray, feet cutters, roll of baling twine, flask of hot water to mix bestance when needed and bottle to feed it etc. The Lamb box is dual purpose so when not lambing the 2 sections can become one as you can slide out the separating sheet of chequer plate, so a coat, cap, jumper, shoes, wellies, tools and rope etc can be kept dry for later use.
Question: When weight is put on the QUADCRATE® does it not tip up on the front? Answer:This will happen if too much weight is put on the QUADCRATE® carrier (s) but the size of your bike will also determine how much weight you can put on the back before you need to balance your bike by adding extra load to the front . Available Post holders are great to use as a holding device for extra weight, at least one post holder is a great investment when buying a QUADCRATEq® carrier (s) to hold loads on the front with ease as the chequer plate is used for extra grip so that loads won’t fall off.
Ask a Question
-
Images
-
This website was developed with support from Priority 6 (LEADER) of the Northern Ireland Rural Development Programme 2014-2020 by the Department of Agriculture, Environment and Rural Affairs and the European Agricultural Fund for Rural Development: Europe investing in rural areas
The QUADCRATE® fits onto the back of the ATV/quad via the tow ball and a suspension bracket which is fastened onto the back bale rack, the weight of the QUADCRATE®and load put onto it all push downwards onto the tow ball of the ATV and the Suspension bracket holds the QUADCRATE® upright and in place.
