SpreadPoint R1050 Rotary Spreader

Spreader material type : Manure spreader unladen weight : 2100kg Spreader axle : 8 Stud 90mm Sq Spreader brakes : Hydraulic Twin Ram Spreader lid hinges : 6 Spreader mudguards : Standard spreader tyres : 550/60R22.5 Spreader capacity : 10.5 Cu/yard /7.5m3 Spreader body length : 3690mm / 12ft 1 Spreader body diameter : 3690mm / 5ft 3 Spreader body height : 2380mm / 7ft 10 Spreader loading height : 1655mm / 5ft 5 spreader tyres : 550/60R22.5

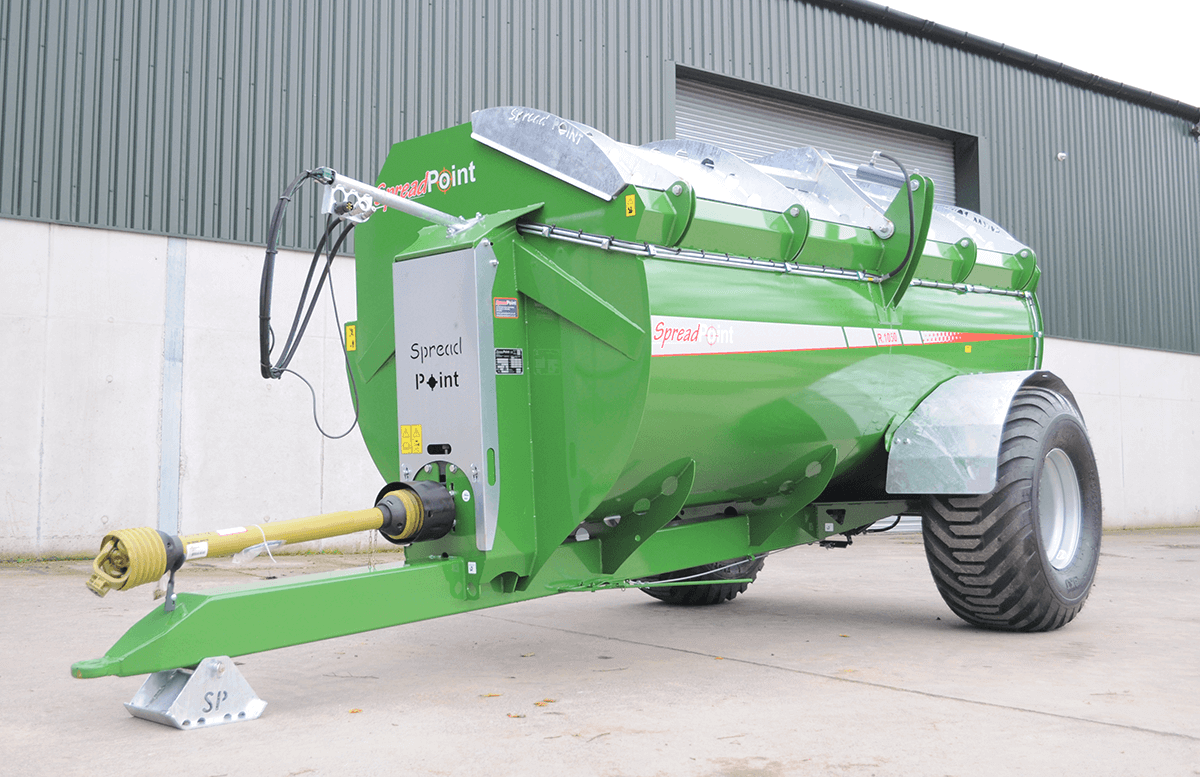

SpreadPoint R1050 Rotary Spreader

‘Reinventing the rotary spreader for the modern-day farmer and contractor’.  Rotary spreaders are an old concept but the New R.1050 from SpreadPoint has modernized the old principle!

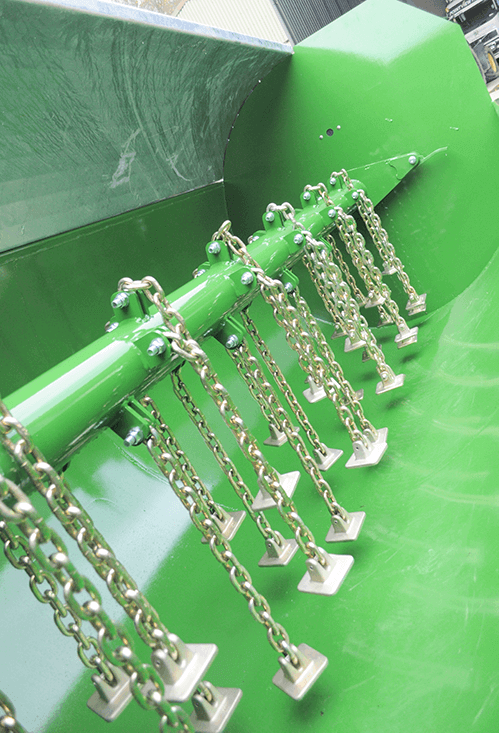

Introducing new features, robust construction, and quality finish parallel to our belt spreader range. The most interesting new feature within this spreader is the new unique  5 axis rotor design. This new rotor is the largest step forward in design since the movement from 2 rows of chains to 4 rows of chains. This 5 axis means lower power consumption, finer spreading, and perfect balance. Only possible due to modern CAD and CAM methods allowing the rotors to be laser cut for precise fabrication ensuring each and every rotor is timed and balanced perfectly.

R1050 - Rotary Spreaders have a unique never seen before 5-axis rotor.  This has reinvented the aged design by chopping finer and running smoother.  The movement to a staggered 5 axis can only be achieved using modern manufacturing techniques allowing the rotor tube to be lasered to ensure each chain is mounted with 0.1mm accuracy.

Key features:

  • Construction:  As with every SpreadPoint product the R.1050 carries the premium level of engineering expected.  The extra rigid drawbar reduces flex around the drive system, increasing the life of your chain system.  Stopping comes from an oversized axle and brake with twin braking rams.
  • Spreading: The finer spreading comes from the new 5-axis rotor which can chop the most demanding of manures.  The lid comes to 12-o'clock on the barrel allowing a further trow of material.

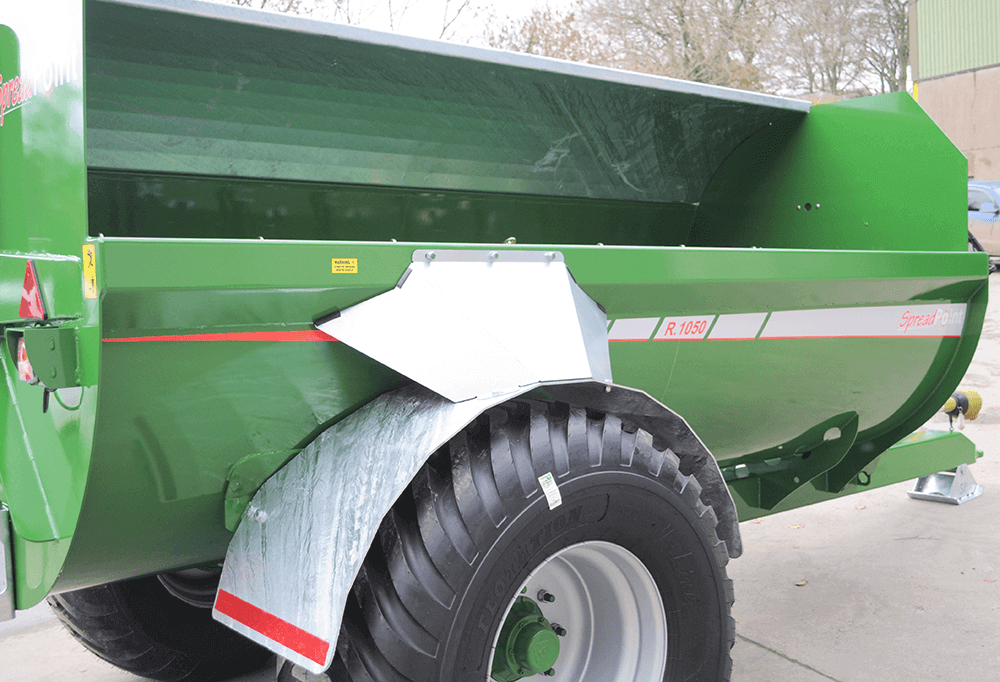

  • Safety:  The removable mudguards as standard increase safety on the road for both the towing tractor and other road users.  These can easily be removed if necessary.  LED lighting as standard.

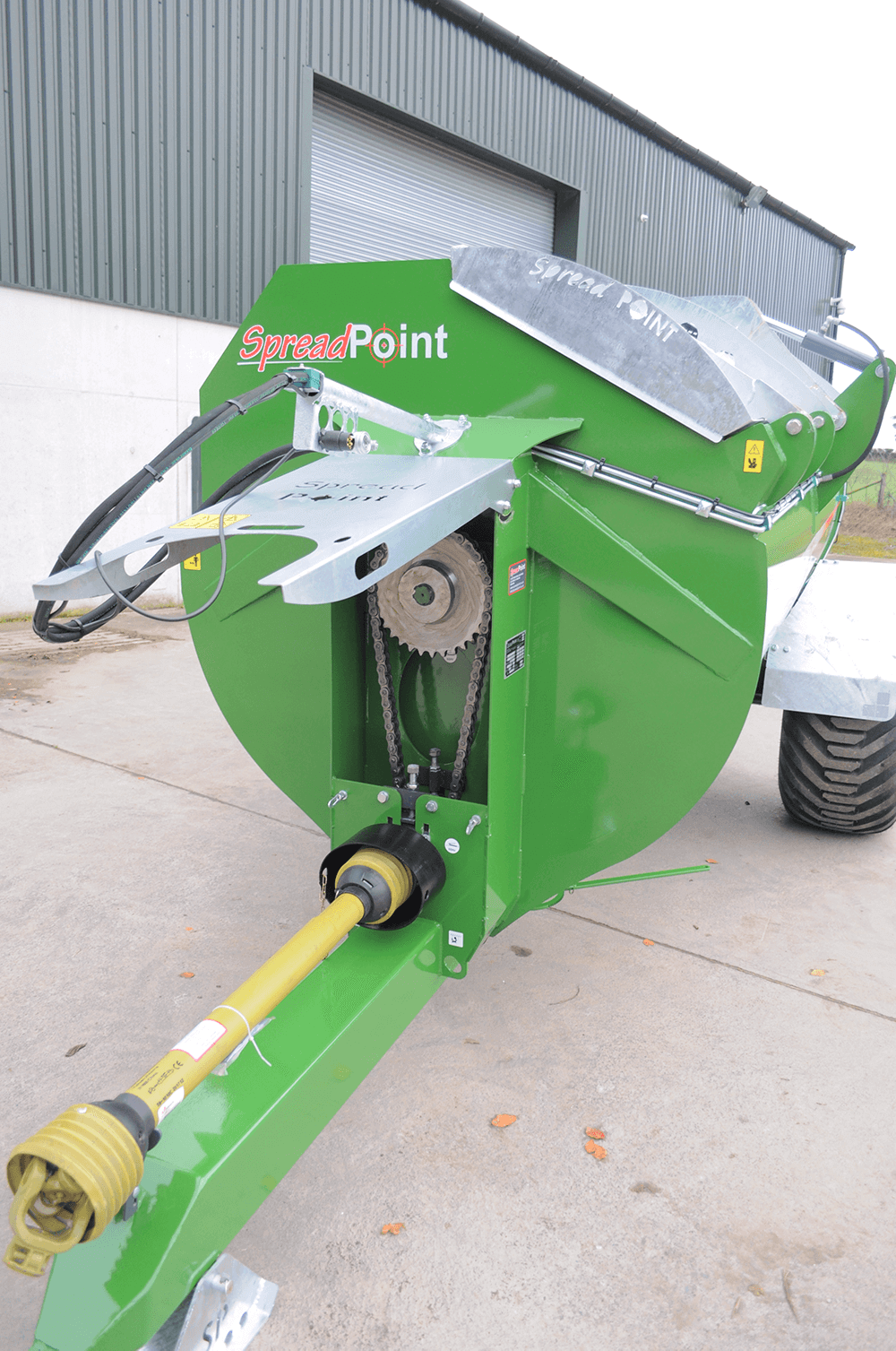

  • Maintenance:  The only spreader on the market that the PTO shaft does not need to be removed to grease the drive bearings.  All 4 hole flange bearings are used for added durability.
  • New unique 5-Axis rotor with 5 rows of chains for lower power requirement and finer chopping.
  • Heavy-duty 5mm lid reinforced with 6 hinge points opens vertical for easy loading.
  • Low center of gravity and loading height due to lowest possible barrel position.
  • Low center of gravity and loading height due to lowest possible barrel position.
  • LED Lighting.
  • Heavy-duty flange bearings.
  • 2K paint finish.
  • Large access door for easier cleaning.
  • 6mm Ends 5mm Barrel.

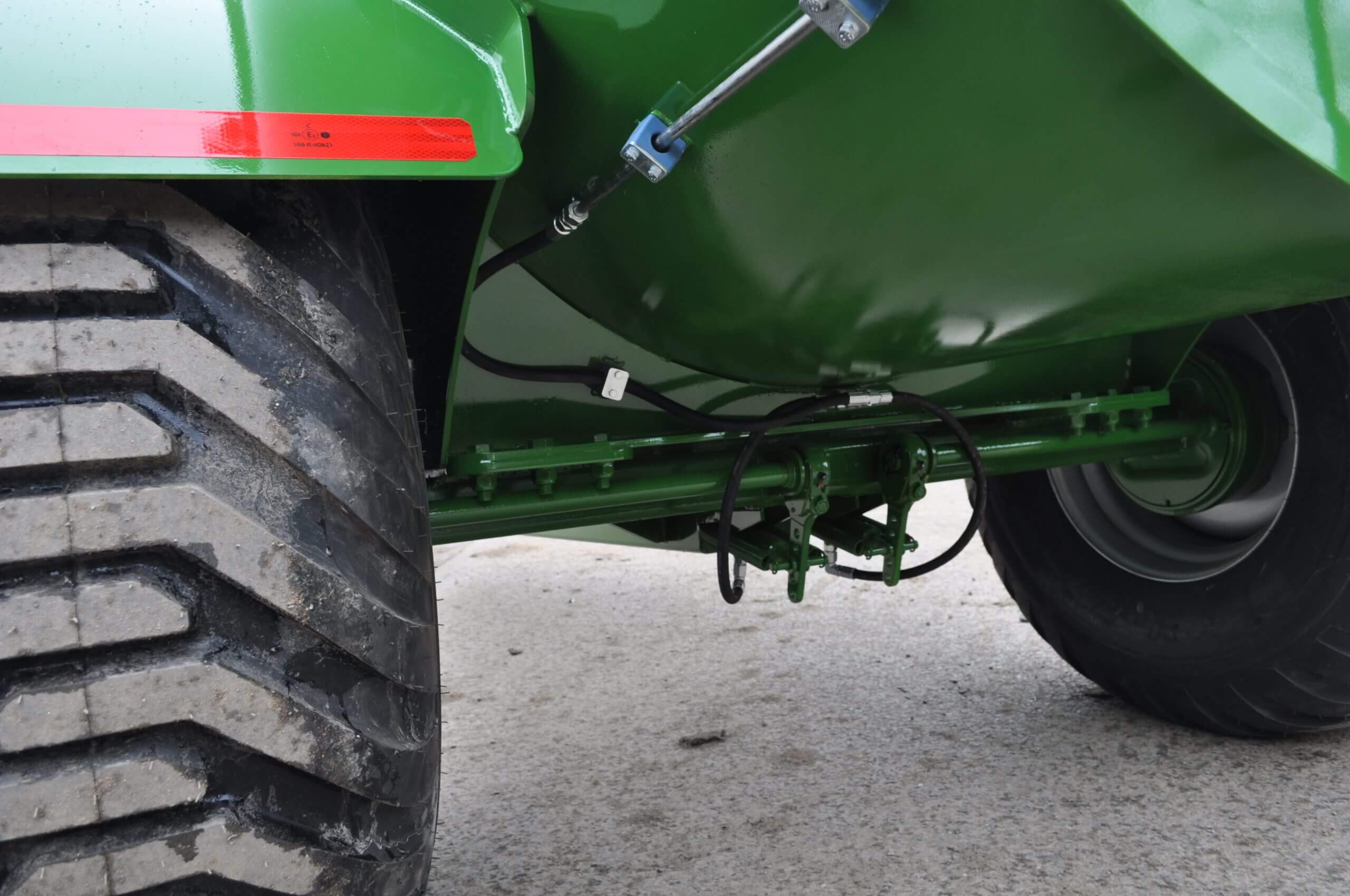

  • Heavy-duty 8 stud 90mm axle large brakes with twin brake rams.
  • 1600mm Diameter Barrel.
  • Steel hydraulic pipes to  resist UV damage due to sunlight.
  • Easy access drive box for easy greasing, no need to remove the shaft.
  • Extremely rigid drawbar and under chassis.
  • Low maintenance single American Standard heavy-duty drive chain.
  • Large 550/60R22.5 tyres.




SpreadPoint R1050 Rotary Spreader

Specification for SpreadPoint R1050 Rotary Spreader

Manure 2100kg 8 Stud 90mm Sq Hydraulic Twin Ram 6 Standard 550/60R22.5 10.5 Cu/yard /7.5m3 3690mm / 12ft 1 3690mm / 5ft 3 2380mm / 7ft 10 1655mm / 5ft 5 550/60R22.5
