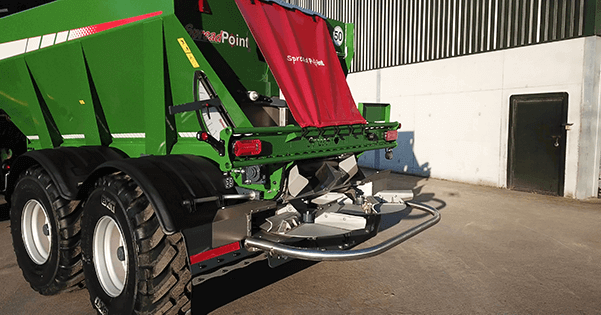

SpreadPoint SP600 Belt Spreader

Spreader material type : Lime, Sand, Fibrophos, Granular products, Granular Fertiliser, Gravel, Salt, Dry Manures, Organic Pellets, Powders Spreader capacity : 6m3 Spreader lime capacity : 8400kg spreader unladen weight : 3000kg Spreader body length : 3160mm Spreader body width : 2015mm Spreader body height : 1100mm Spreader loading height : 2350mm Spreader axle : 10 Stud 120sp Commercial Spreader brakes : Air & Hydraulic Spreader sprung drawbar : Standard Spreader mudguards : Standard spreader tyres : 710/50R26.5 Speader rear door : Hydraulic Spreader belt drive : Hydraulic Spreader rate control : SensPoint Intelligent Control spreader tyres : 710/50R26.5

SpreadPoint SP600 Belt Spreader

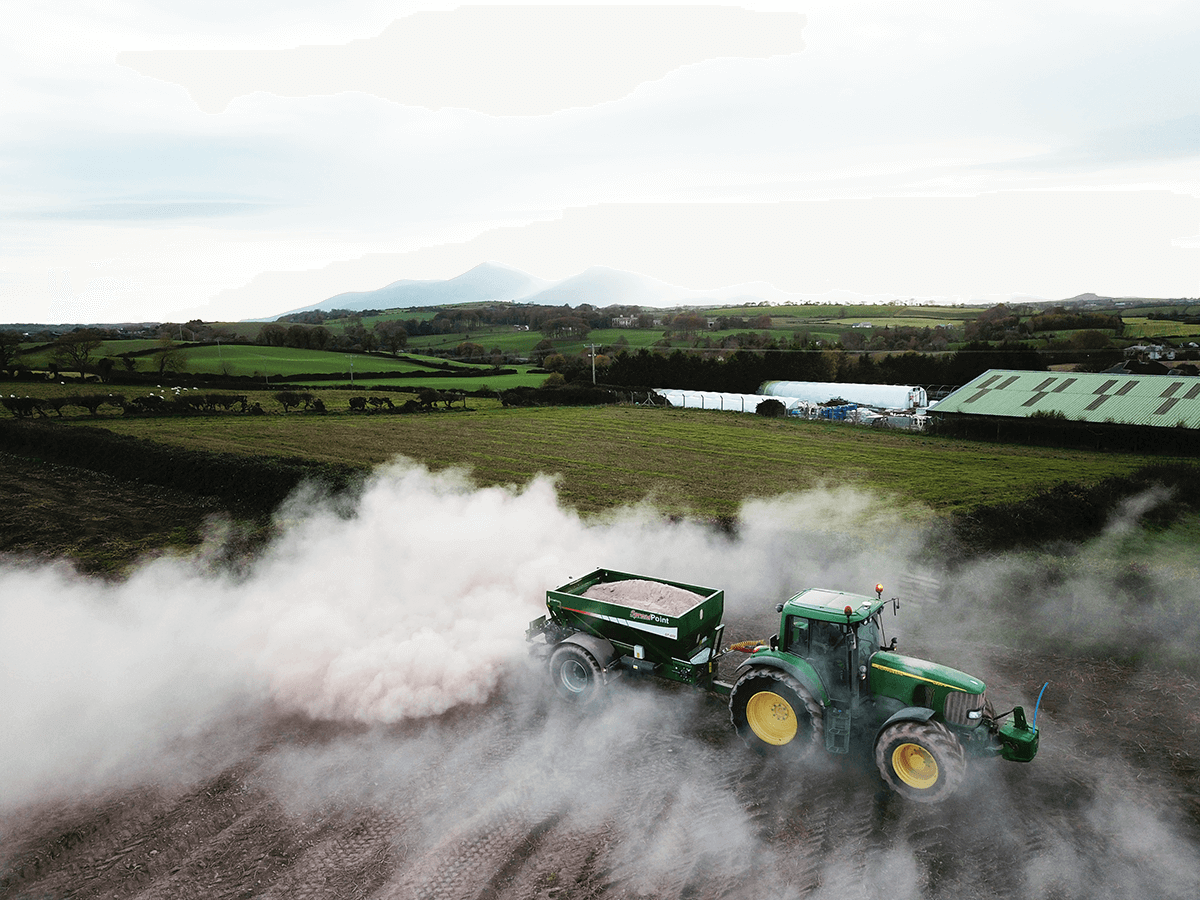

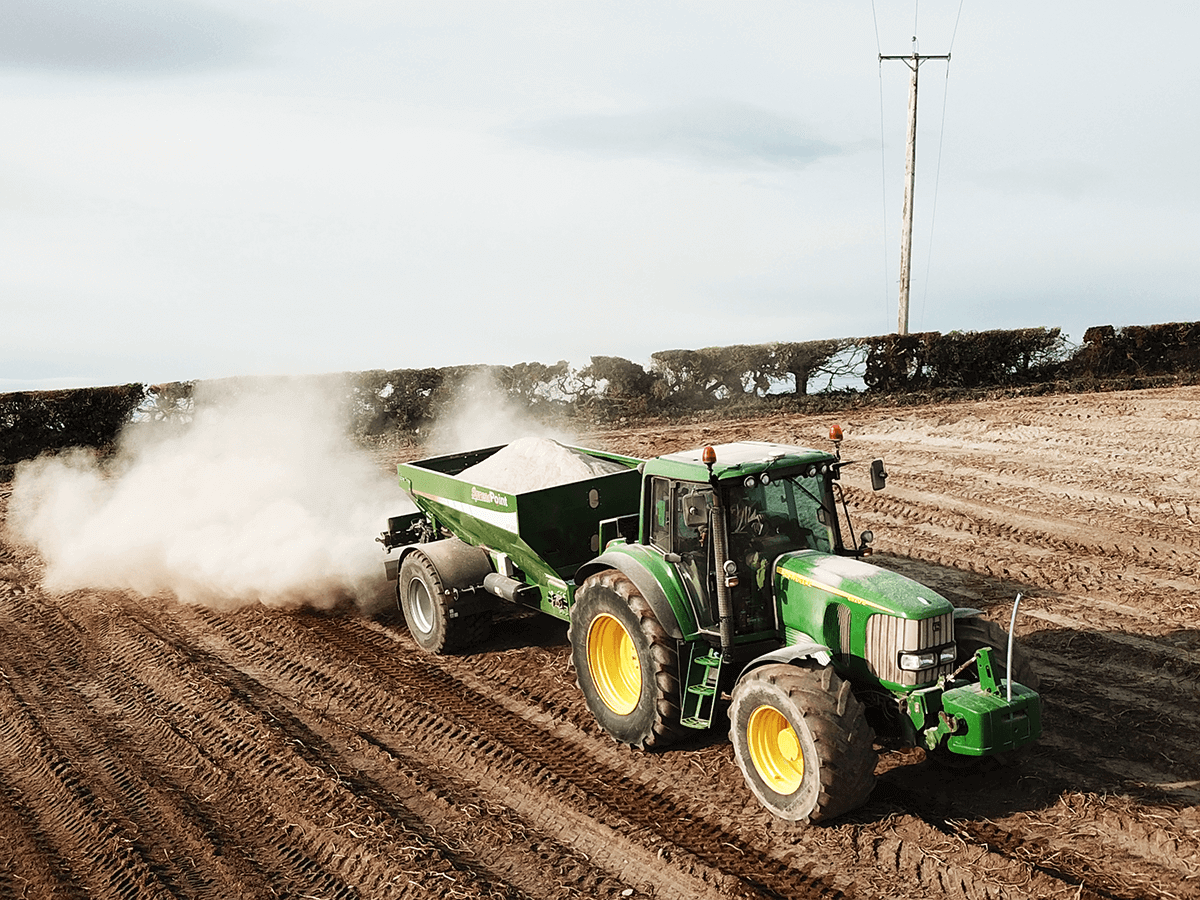

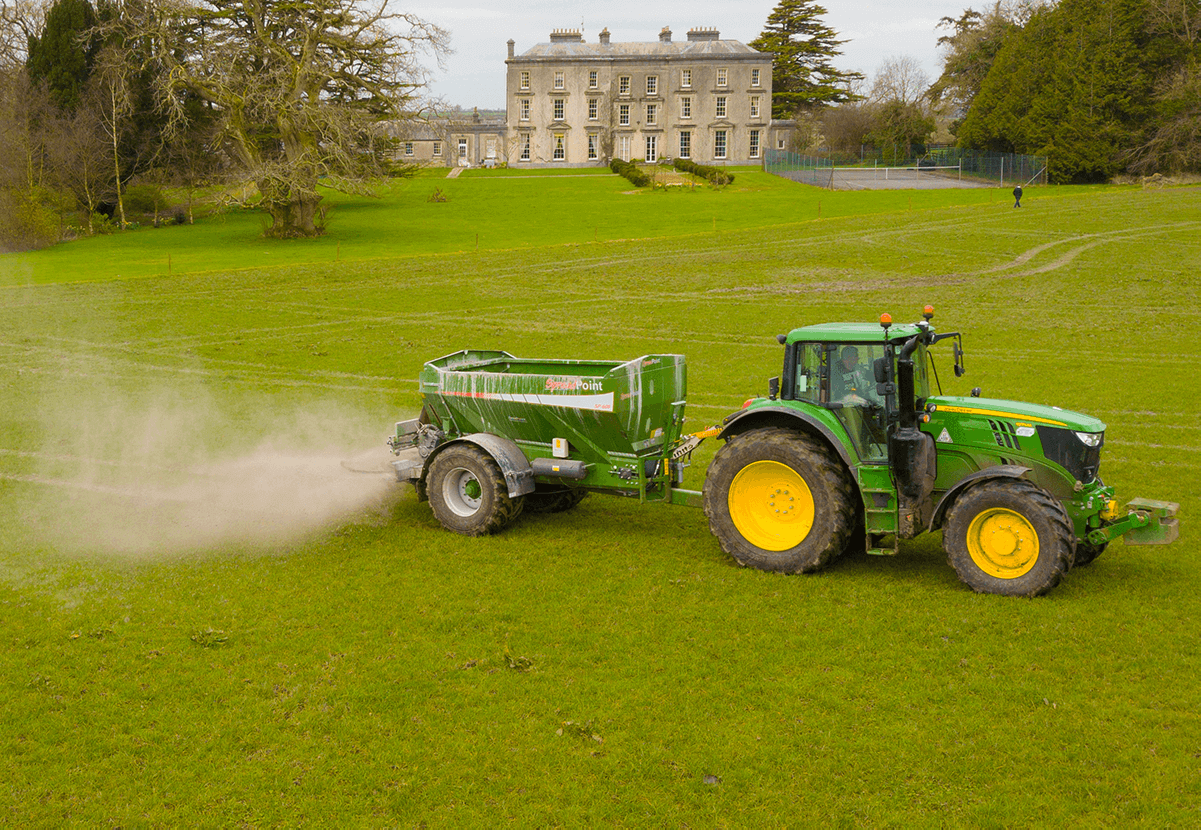

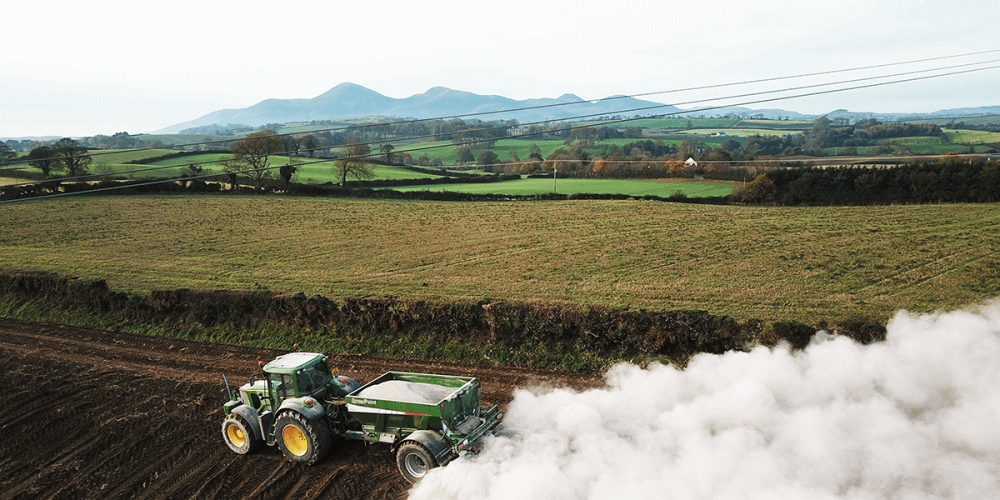

The SpreadPoint SP range of lime spreaders is the most robust and physically capable purpose-built lime spreaders on the market. Using the safety and precision of hydraulic disc control these spreaders ensure the accurate spread of lime or alike bulk materials. Combine this with the largest most robust hard-wearing discs on the market and these truly are spreaders designed with contractors and professional farmers in mind.

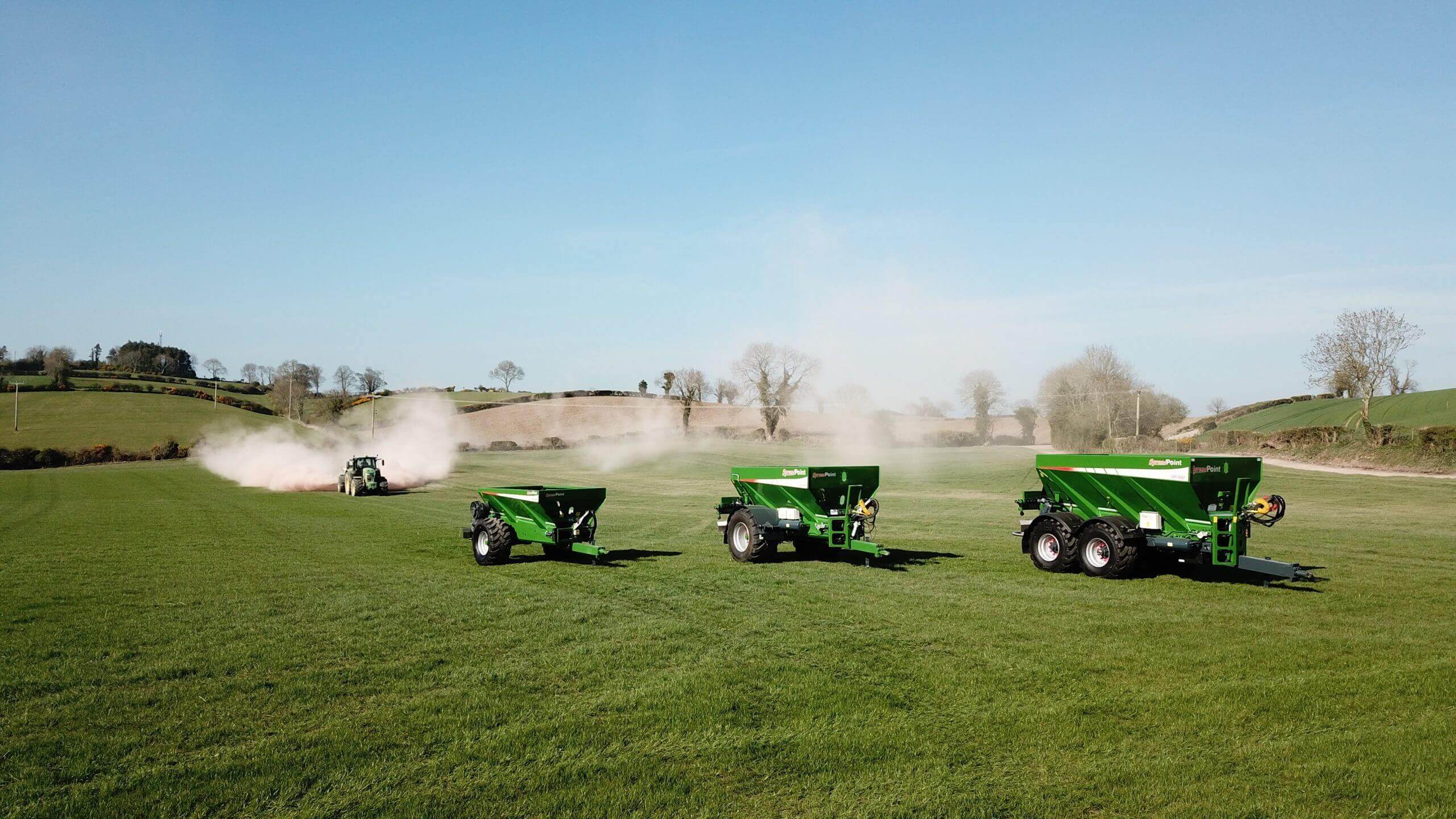

The unique bearing-less and bolt-less system of floor idler rollers mean strong, reliable, and easily maintained operation. The large diameter and close center idler rollers ensure the belt will always start even after traveling long distances with full loads. With three sizes in the range and varying specification, there is sure to be a spreader suitable to your needs.

The SP-400 is 4m3 and shares a monocoque chassis design similar to its bigger brothers.  Also similar to all the spreaders in the SP range the use of the modular spreading systems allows versatility and increases profitability for you.  Available in both land drive and modern hydraulic drive belt drive means this machine is suited for any operator's preference.


Key features:

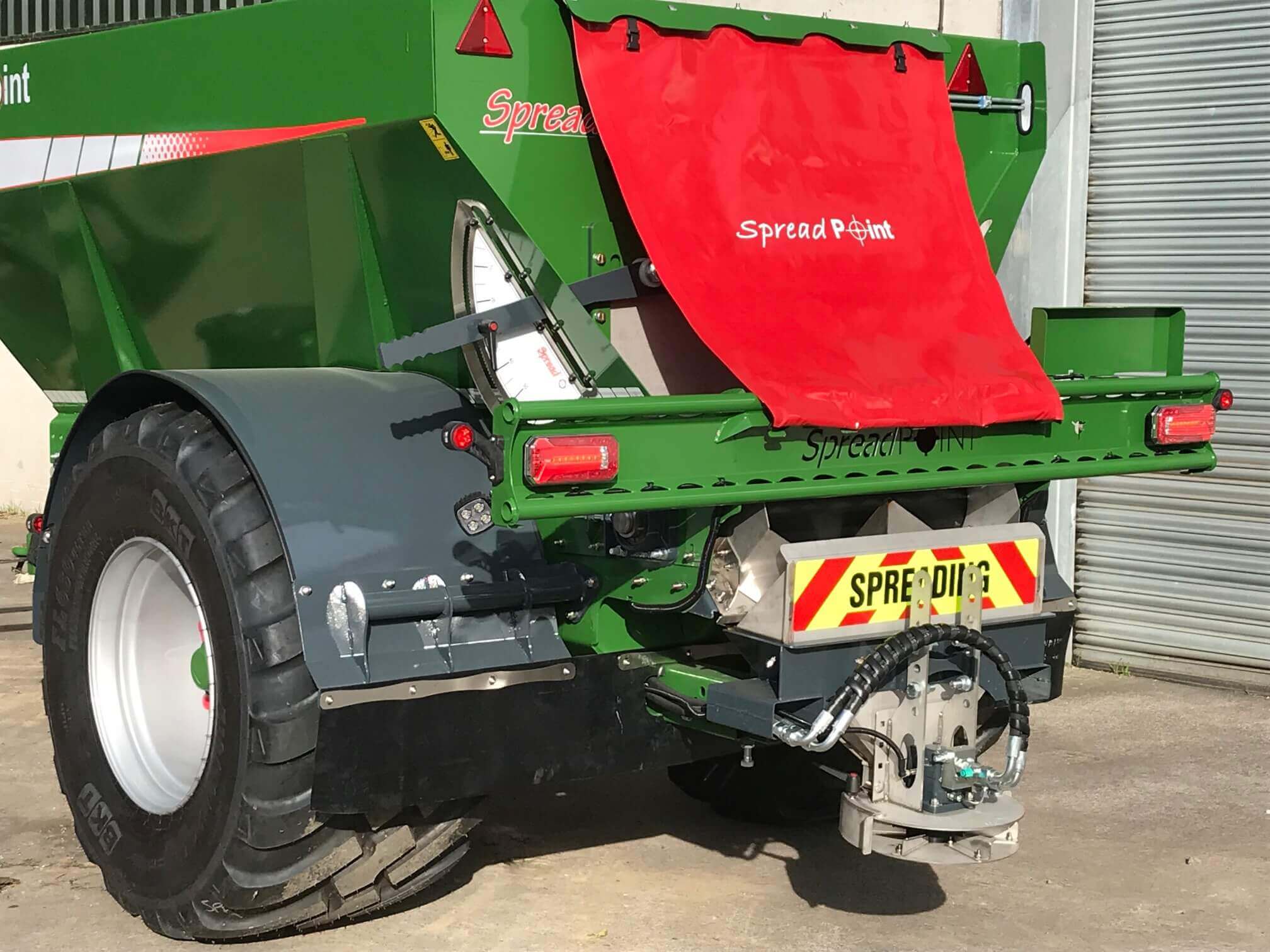

  • Each Spreading module can be fitted or retrofitted to any SP Belt Spreader. Modules include SP-A Heavy Duty Twin Disc, SD-A Heavy Duty Single Disc/Salt Disc and SP-X 12m Folding Augers.
  • LED Lighting with work lights*1
  • Shot blasted 2K paint finish
  • 9 grease nipples per spreader*2
  • Low center of gravity due to 3 degrees belt angle
  • Eliminating  PTO shafts for safety and maintenance reasons
  • Sprung drawbar system (not available on SP400)
  • Monocoque chassis giving improved strength to weight ratio over hollow sections
  • Larger roller bearings  with a simple tension system
  • Unique large diameter stainless steel and nylon floor rollers
  • Stainless steel wear points for rust-free durability
  • Low maintenance hydraulic disc drive
  • Large high load rating radial tyres

Spreader   control   systems

  • Land   Drive   Belt   Control: The most basic control system is fitted only to the SP400. This 2-speed gearbox connects the tyre speed directly to the belt speed keeping the target rate constant irrelevant to forward speed. The application rate is set via rear door height.

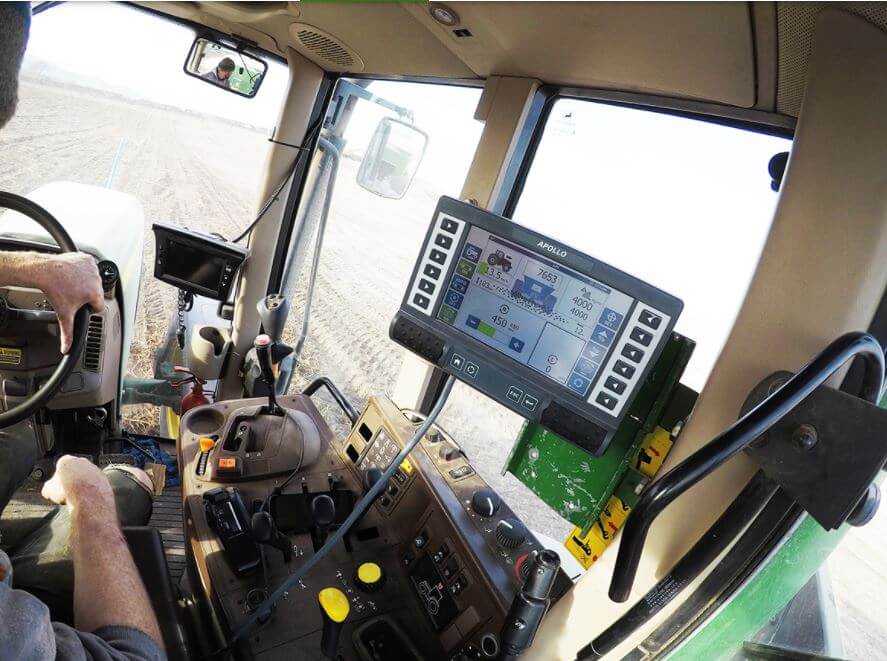

  • SensPoint   Intelligent   Spreader   Control: Using direct hydraulic belt control this computer system monitors forward speed via GPS and matches the belt speed accordingly to achieve the set target rate.  Target rates can be set from the screen.    Disc speed can also be controlled from the screen.

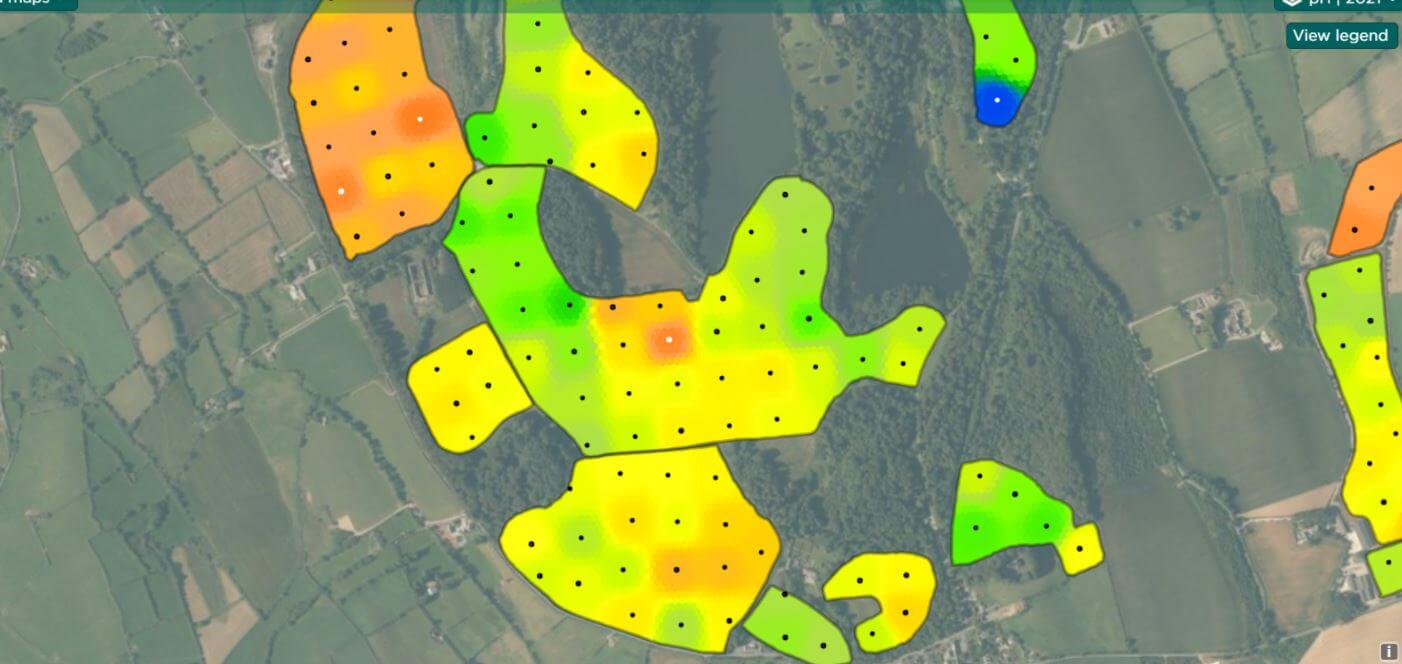

  • SensPoint   isoBus: Similar to the above point but compatible with all certified  ISOBus  UT terminals. The spreader is supplied with a 9pin ISOBus connector. GPS speed is supplied from the UT. VRT ready depending upon UT.

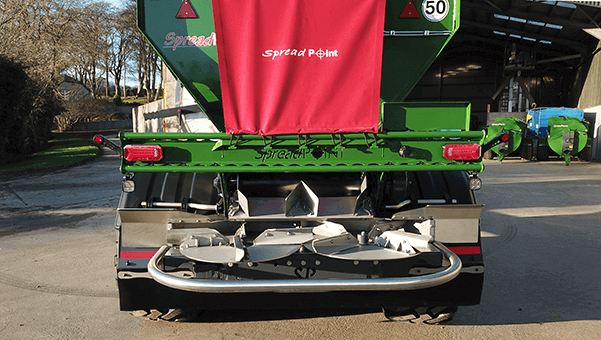

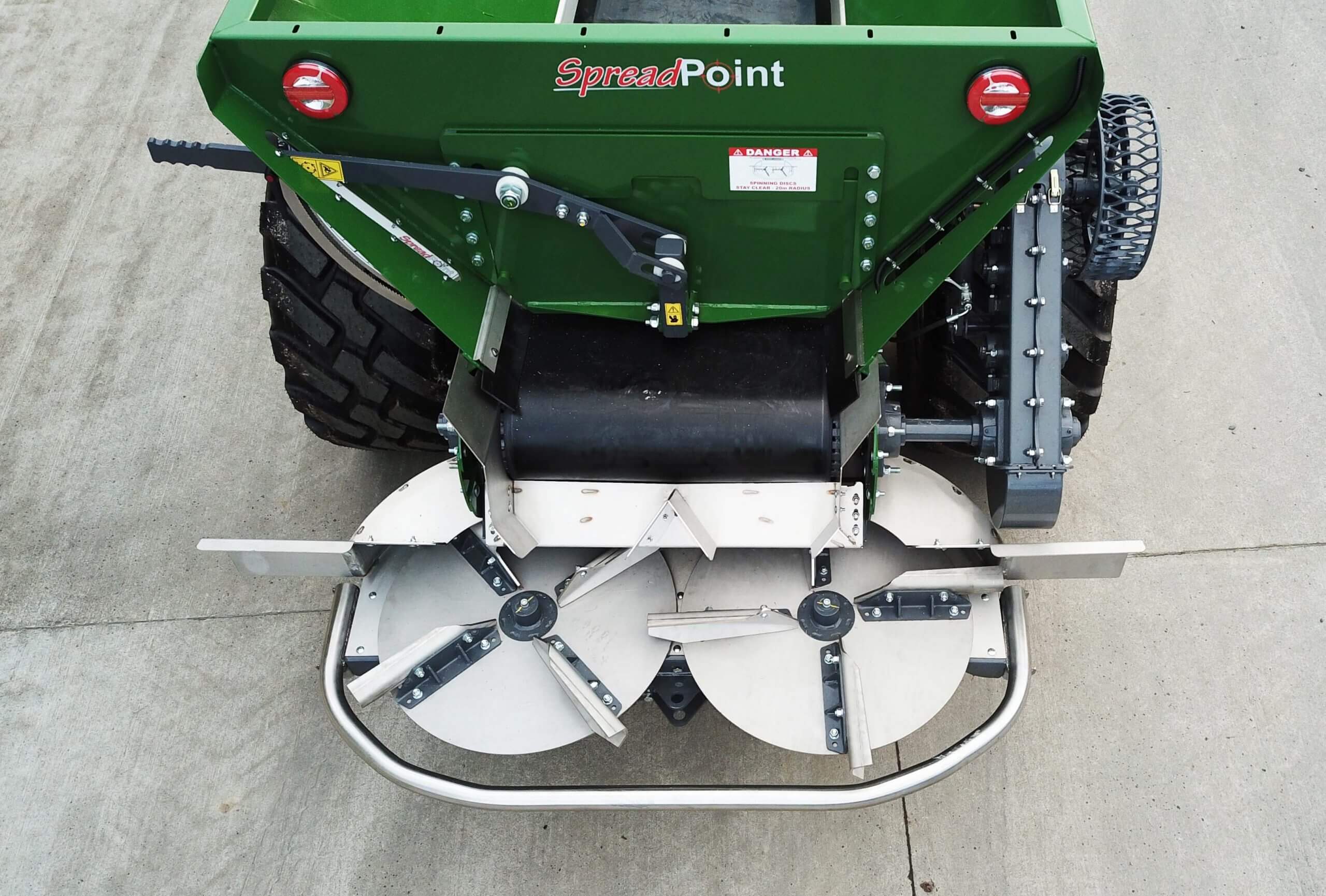

  • Hydraulic Disc Unit: The largest most robust discs on the market! Each spinning 6mm stainless steel disc is mounted on a synchronized gearbox and driven using one hydraulic motor. This allows larger diameter overlapping discs, unlike our competitors. Allowing up to 12m working widths in lime.

Optional Extras:

  •  Rollover Cover
  • Cleated belt
  • Mesh Grids inside hopper
  • IsoBus Connectivity
  • K80 spoon
  • Wheel options subject to condition
SpreadPoint SP600 Belt Spreader

Specification for SpreadPoint SP600 Belt Spreader

Lime Sand Fibrophos Granular products Granular Fertiliser Gravel Salt Dry Manures Organic Pellets Powders 6m3 8400kg 3000kg 3160mm 2015mm 1100mm 2350mm 10 Stud 120sp Commercial Air & Hydraulic Standard Standard 710/50R26.5 Hydraulic Hydraulic SensPoint Intelligent Control 710/50R26.5
