Walter Watson

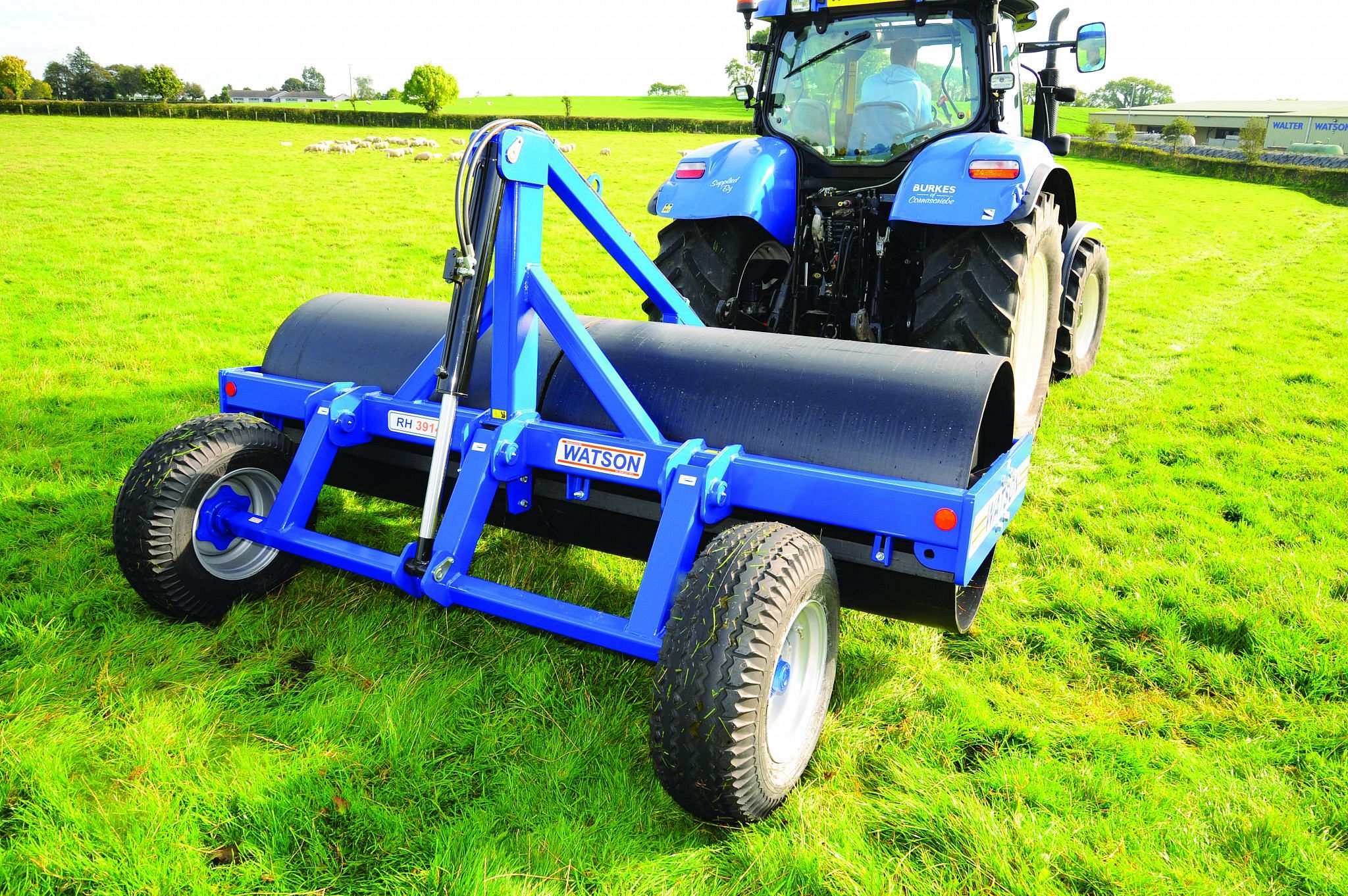

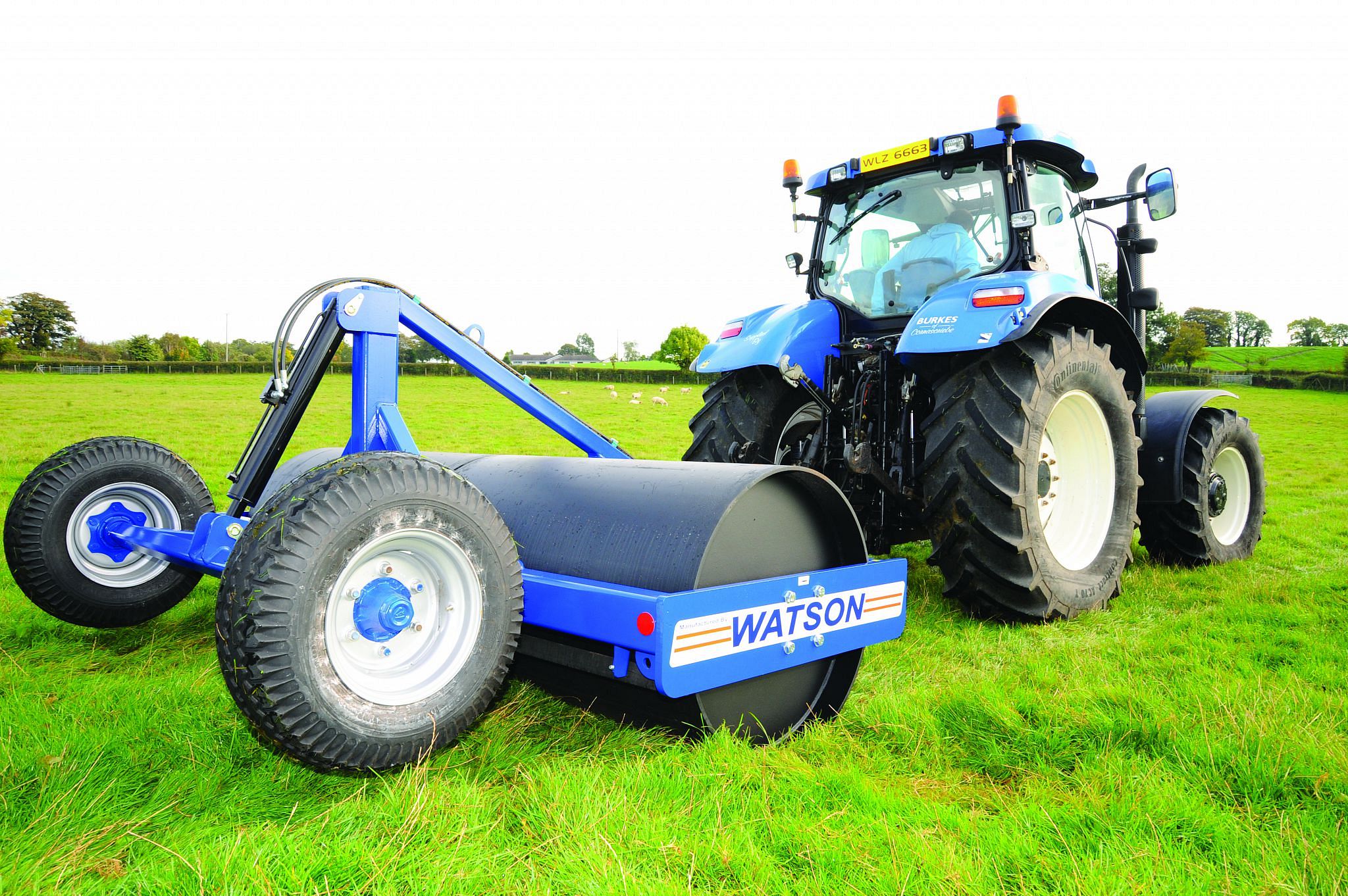

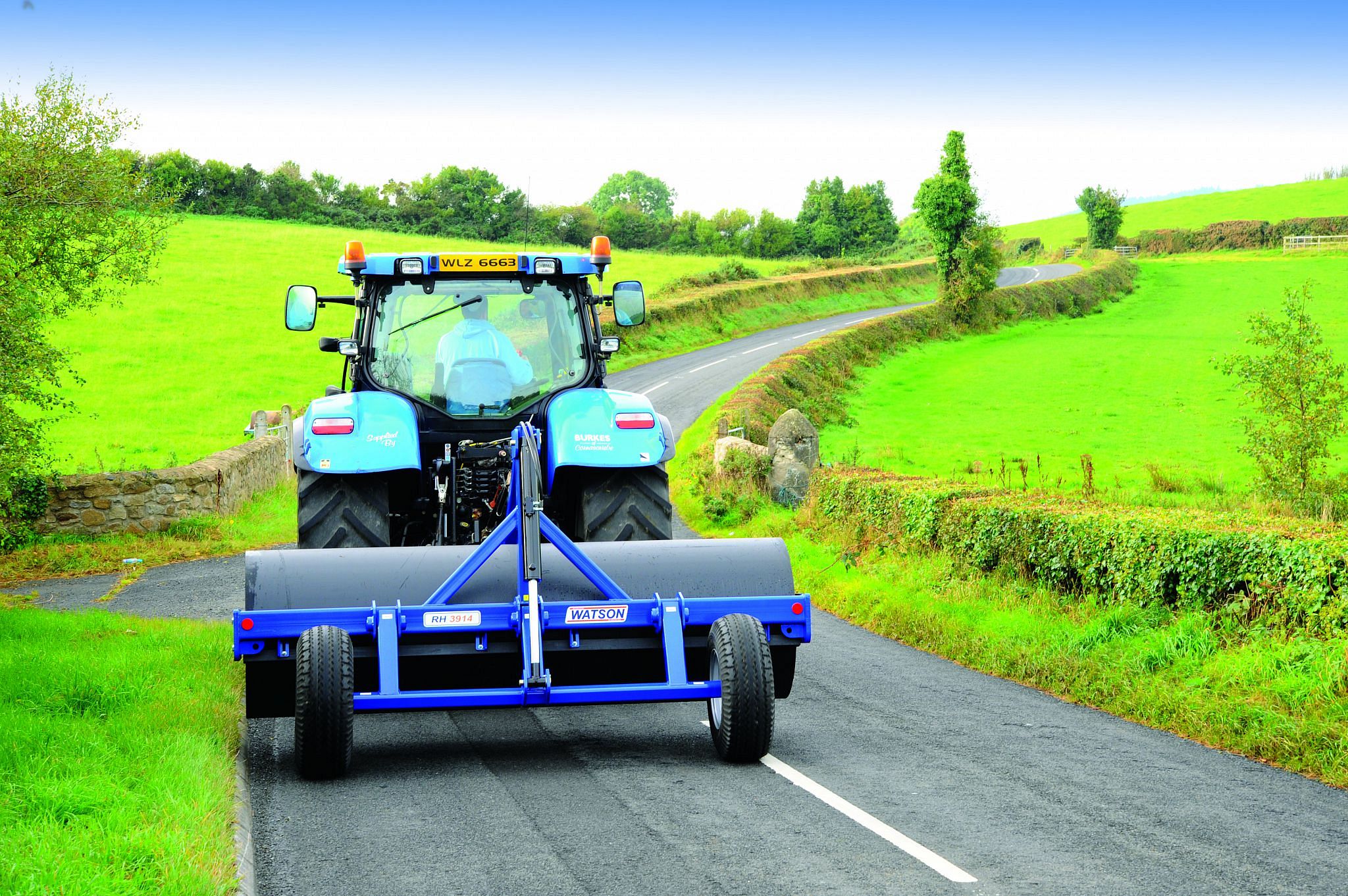

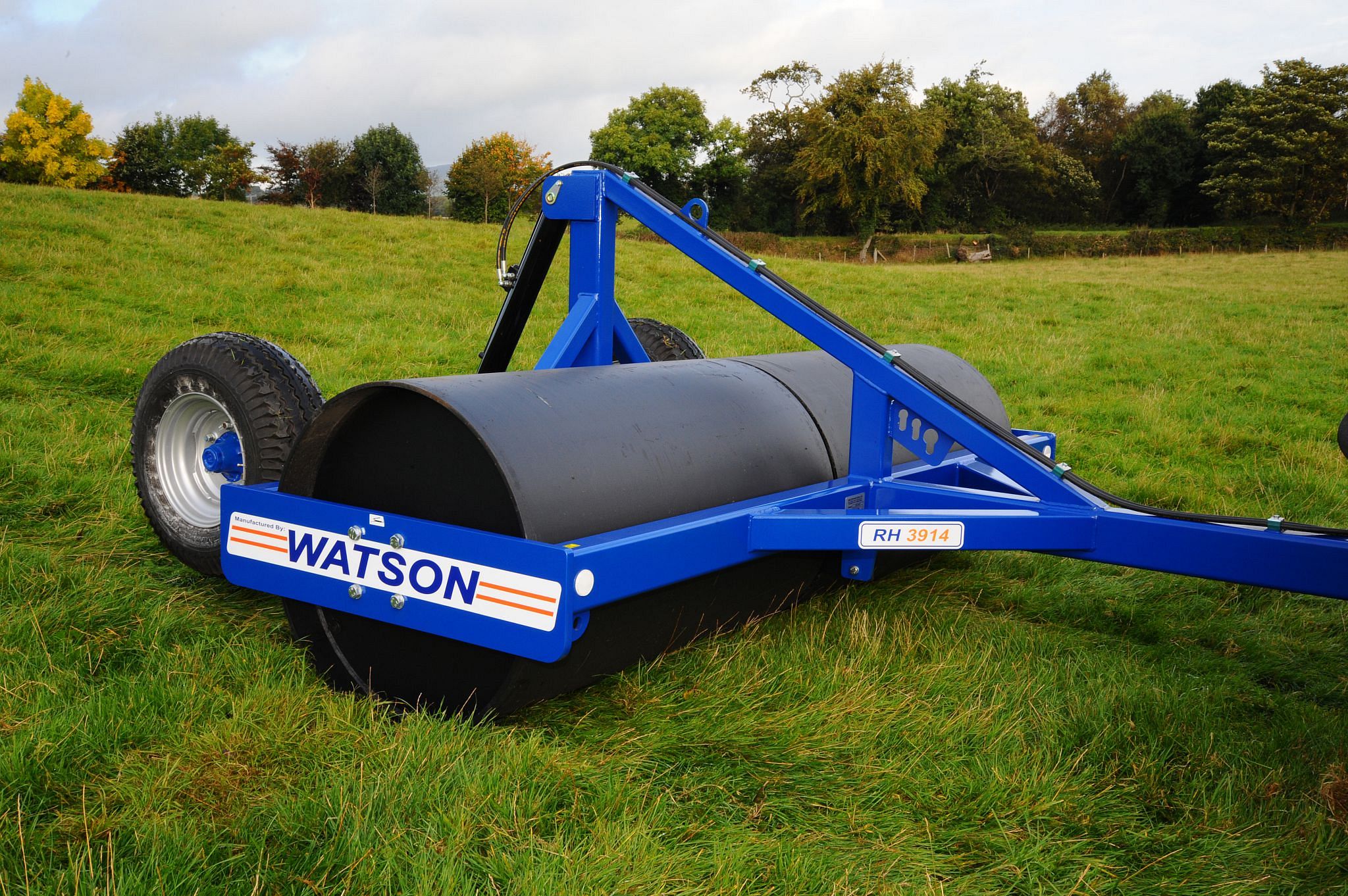

Walter Watson 3m x 30" x 12.5mm Water Ballast Land Roller c/w Rear Hydraulic Wheel Kit

Roller type : Hyd. Lift Land roller laden weight kg : 3180kg Roller unladen weight : 1900kg Roller rolling width : 9ft 8 Roller drum dia : 0.76m Roller wall thickness : 12.5mm Roller transport width : 3.05m

Walter Watson 3m x 30" x 12.5mm Water Ballast Land Roller c/w Rear Hydraulic Wheel Kit

The Walter Watson roller frame ends have been designed with 24mm thick plate, this enables barrel ends to be inset to reduce transport width and give greater rolling width.

Key features:

  • Rolling Width –3.00m
  • Transport Width – 3.05m
  • Barrel Diameter – 30”
  • Barrel Thickness – 10mm – 14mm
  • “Greasable centre support for 3” shaft which enables transportation fully ballasted. Nylon Bush Bearings on all models.”
  • Double Acting Ram c/w Safety Check Valve
  • Axle – 3” Solid Shaft (EN8)
  • Nylon Bush Bearings as Standard
  • Centre Support c/w Greasable Nylon Bush
  • 6 Stud Heavy Duty Axle c/w Greasable Pivot Points
  • High Quality 2 Pack Paint Finish
  • Scraper as Standard

Heavy Duty Ring Hitch

Walter Watson 3m x 30" x 12.5mm Water Ballast Land Roller c/w Rear Hydraulic Wheel Kit

Specification for Walter Watson 3m x 30" x 12.5mm Water Ballast Land Roller c/w Rear Hydraulic Wheel Kit

Hyd. Lift 3180kg 1900kg 9ft 8 0.76m 12.5mm 3.05m
This product has no reviews.

Leave a Review

By clicking the Submit button you agree to our T&Cs and Privacy policy

This product has no questions.

Ask a Question

By clicking the Submit button you agree to our T&Cs and Privacy policy

  • Description

    The Walter Watson roller frame ends have been designed with 24mm thick plate, this enables barrel ends to be inset to reduce transport width and give greater rolling width.

    Key features:

    • Rolling Width –3.00m
    • Transport Width – 3.05m
    • Barrel Diameter – 30”
    • Barrel Thickness – 10mm – 14mm
    • “Greasable centre support for 3” shaft which enables transportation fully ballasted. Nylon Bush Bearings on all models.”
    • Double Acting Ram c/w Safety Check Valve
    • Axle – 3” Solid Shaft (EN8)
    • Nylon Bush Bearings as Standard
    • Centre Support c/w Greasable Nylon Bush
    • 6 Stud Heavy Duty Axle c/w Greasable Pivot Points
    • High Quality 2 Pack Paint Finish
    • Scraper as Standard

    Heavy Duty Ring Hitch

  • Specifications

    Hyd. Lift 3180kg 1900kg 9ft 8 0.76m 12.5mm 3.05m
