Major 12FTGDW-HD Trailed Grass Topper

Trailed topper overall width : 15ft Trailed topper working width : 12ft Trailed topper transport width : 8ft 5 Trailed topper power (hp) : 40-120 Trailed topper pto rpm540 : 540 Trailed topper cutting height : 50-205mm Trailed topper rotors : 3 Trailed topper blades : 12 Trailed topper weight : 1240kg Trailed topper blade speed : 70m/s

Major 12FTGDW-HD Trailed Grass Topper

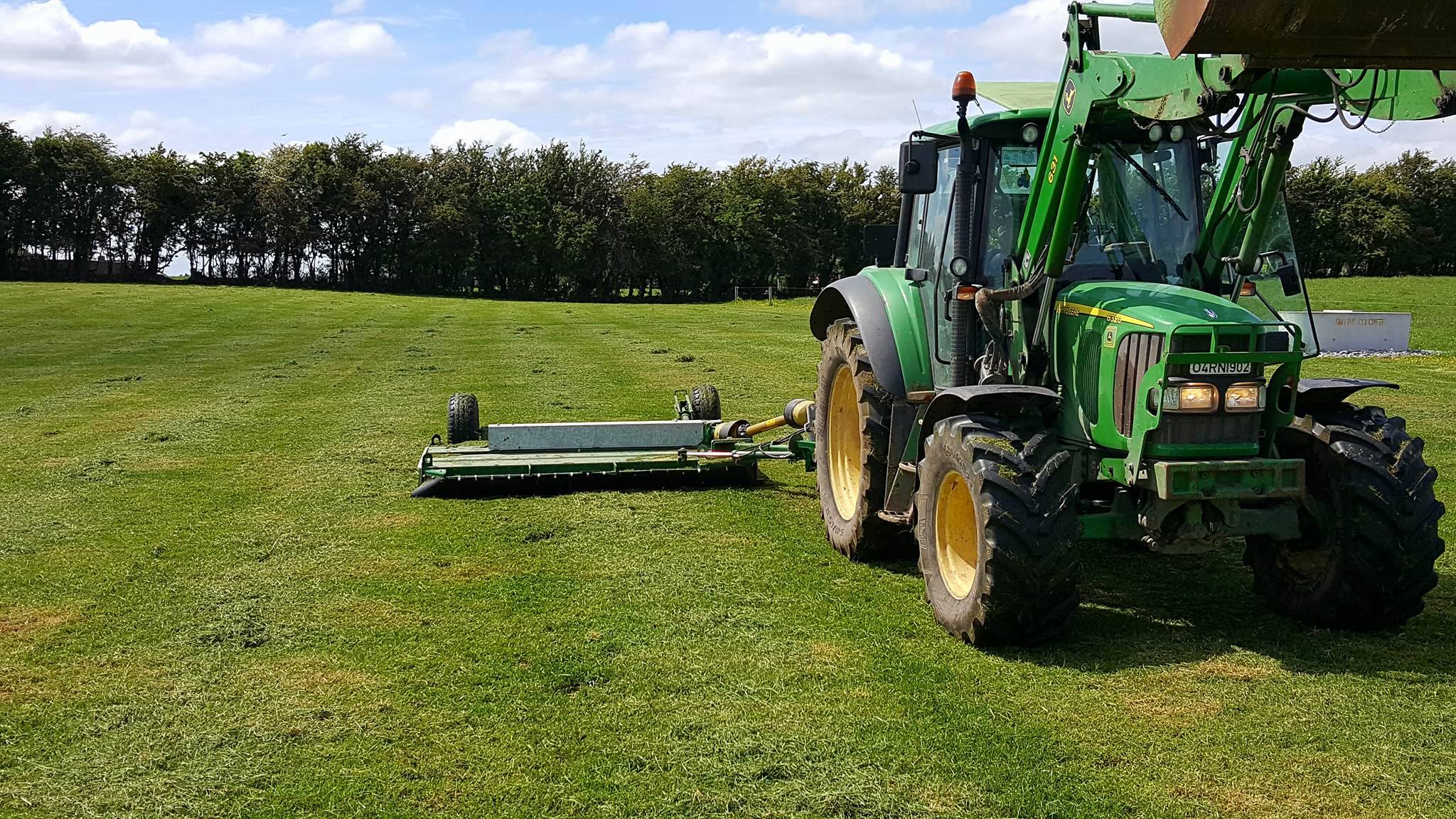

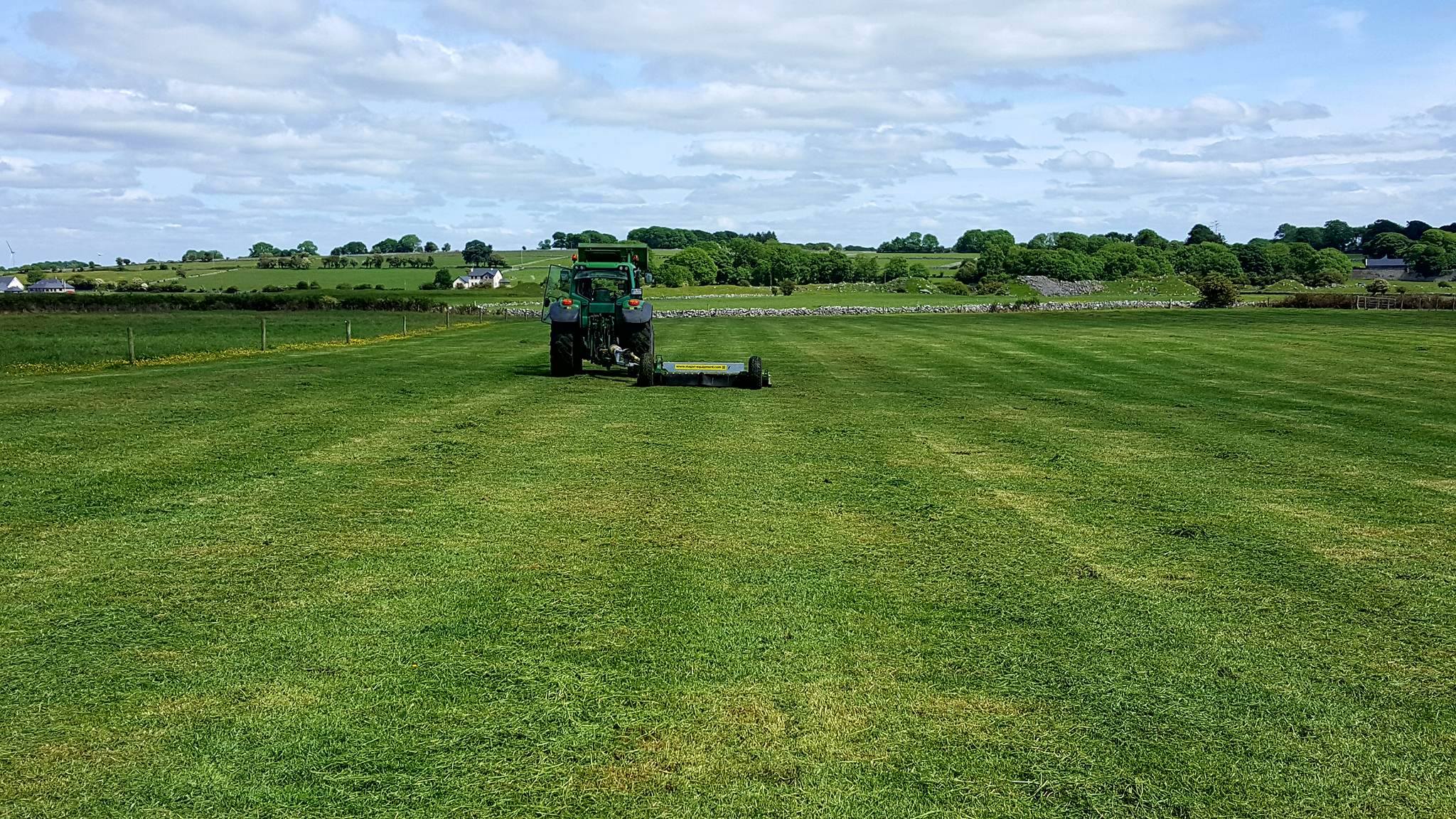

The MAJOR Trailed Topper is a fully offset gear driven machine that can be folded hydraulically into transport position from the tractor seat.

Key Features:

  • The rotors are timed with each other and have an overlap of 3 inches (75mm).
  • The blades rotate in opposite directions allowing for cut grass to be spread evenly behind the machine.
  • As the machine is fully offset there is no trampling of the pasture prior to cutting.
  • The cutting height is set at the desired level by moving the adjustable side skids to the appropriate position.
  • There is a limit stop on the ram which controls the rear axle.
  • Galvanised finish
  • Full hydraulic offset control
  • Hydraulic breakaway system
  • Wide angle PTO shaft
  • Twin-cut ProCut swinging blades



Major 12FTGDW-HD Trailed Grass Topper

Specification for Major 12FTGDW-HD Trailed Grass Topper

15ft 12ft 8ft 5 40-120 540 50-205mm 3 12 1240kg 70m/s
This product has no reviews.

Leave a Review

By clicking the Submit button you agree to our T&Cs and Privacy policy

This product has no questions.

Ask a Question

By clicking the Submit button you agree to our T&Cs and Privacy policy

Videos

  1. Play
  2. Play
  • Description

    The MAJOR Trailed Topper is a fully offset gear driven machine that can be folded hydraulically into transport position from the tractor seat.

    Key Features:

    • The rotors are timed with each other and have an overlap of 3 inches (75mm).
    • The blades rotate in opposite directions allowing for cut grass to be spread evenly behind the machine.
    • As the machine is fully offset there is no trampling of the pasture prior to cutting.
    • The cutting height is set at the desired level by moving the adjustable side skids to the appropriate position.
    • There is a limit stop on the ram which controls the rear axle.
    • Galvanised finish
    • Full hydraulic offset control
    • Hydraulic breakaway system
    • Wide angle PTO shaft
    • Twin-cut ProCut swinging blades



  • Specifications

    15ft 12ft 8ft 5 40-120 540 50-205mm 3 12 1240kg 70m/s
